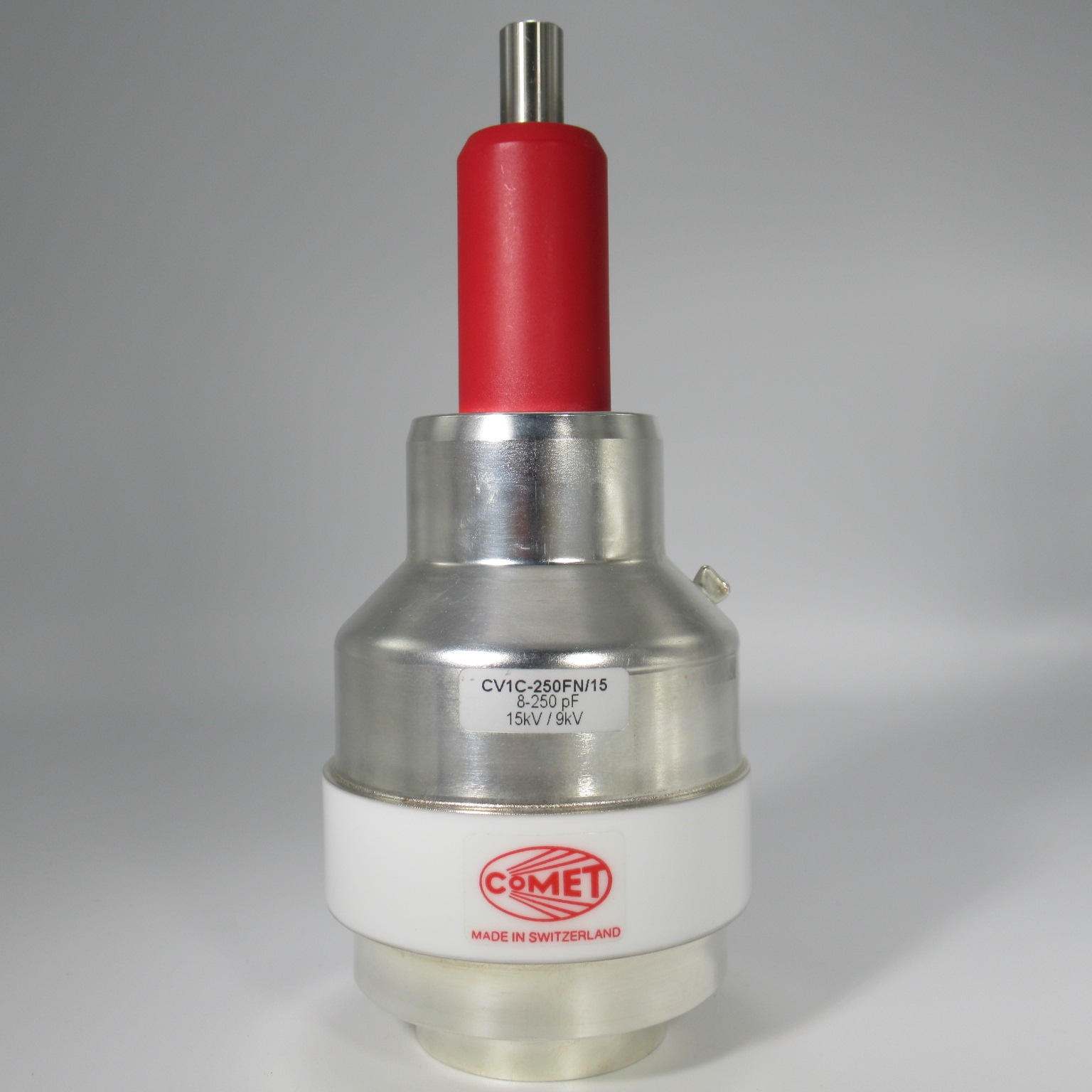

CV1C-250FN/15 Vacuum Variable Capacitor, 8-250pf, 15kv Peak / 9KV, Comet (NOS)
Capacitance: 8-250 pf
Voltage Rating: 15 KV
Current Rating: 67 Amps RMS max
Important Dimensions
Max Length 7.87 in / 200 mm (Including Shaft)
Max Diameter 3.46 in / 88 mm
Weight 3.5 lbs
Mounting 6 small drilled and tapped holes for front end mounting and a permanently mounted slotted rear flange for rear end mounting
Shaft 1/4" Round with center slot
Made in Switzerland
Limited Quantity Available, New Old Stock, Not for Export
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Comet |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | COMET |
