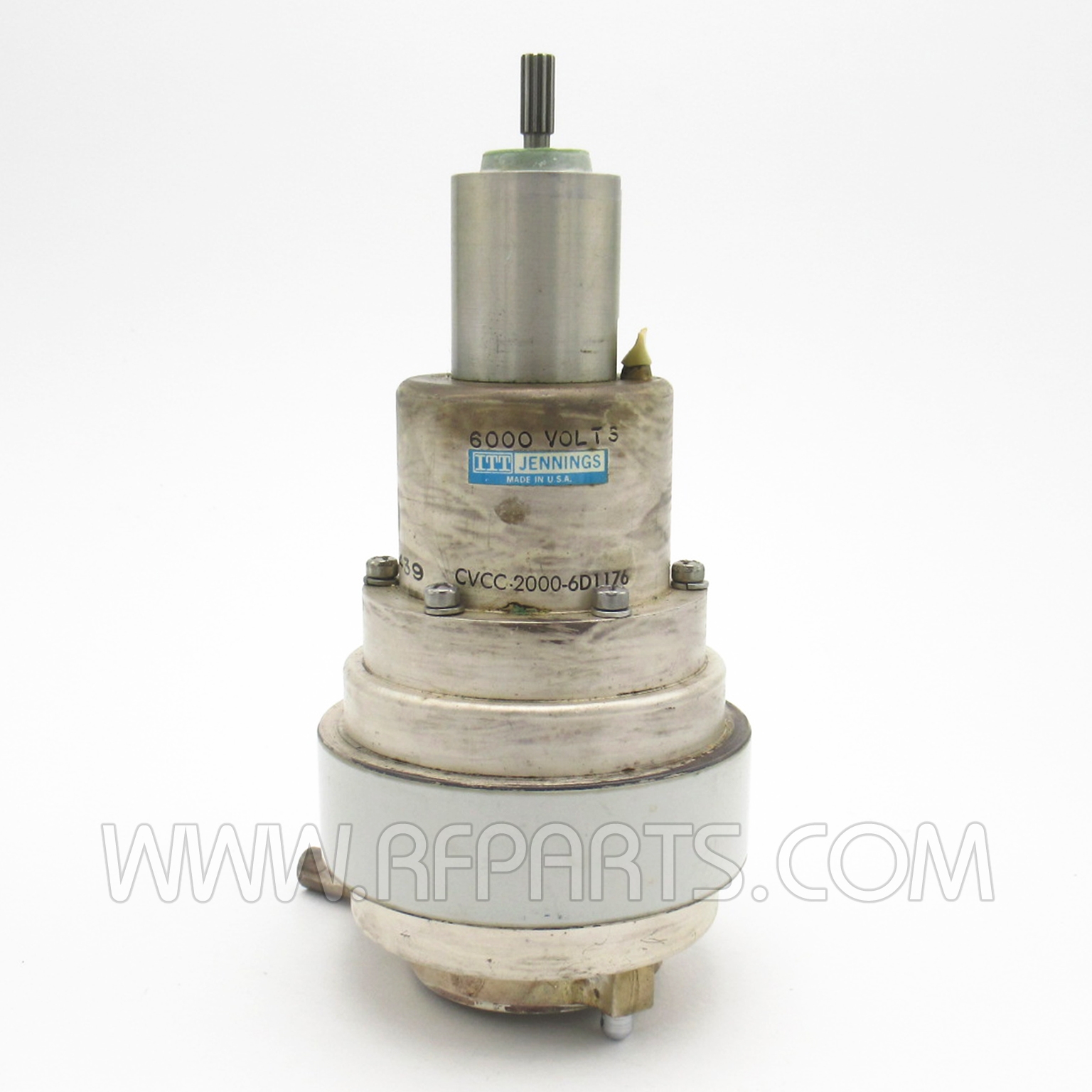

CVCC-2000-6D1176 Vacuum Variable Capacitor, 25-2000pf, 6 kv (Used Excellent condition


$599.95
In Stock
OR

CVCC-2000-6N525  Vacuum Variable Capacitor, 25-2000pf, 6 kv (5kv working Volts), MFR: Jennings (Clean used) No longer available for Export




Made in the USA

Be the first to review this product


Details

CVCC-2000-6D1176  Vacuum Variable Capacitor, 25-2000pf, 6 kv (5kv working Volts)

Rated Capacitance 25-2000 pF
Peak Voltage 5 KV
Current Amps (RMS) Maximum 70 Amps (Estimated)
Shaft Diameter 1/4 inch
Turns for Full Travel Max 22
Important Dimensions
Max Length 7.98 in / 202.69 mm (including shaft)
Max Diameter 3.38 in / 85.85 mm
Weight 54.20 oz / 1536.54 g

Used. Made in the USA by Jennings. Not for export. Please see our Warranty page regarding our warranty.

Limited Quantity Available,

Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
Manufacturer Jennings (Clean used)
Manufacturer Name Jennings
