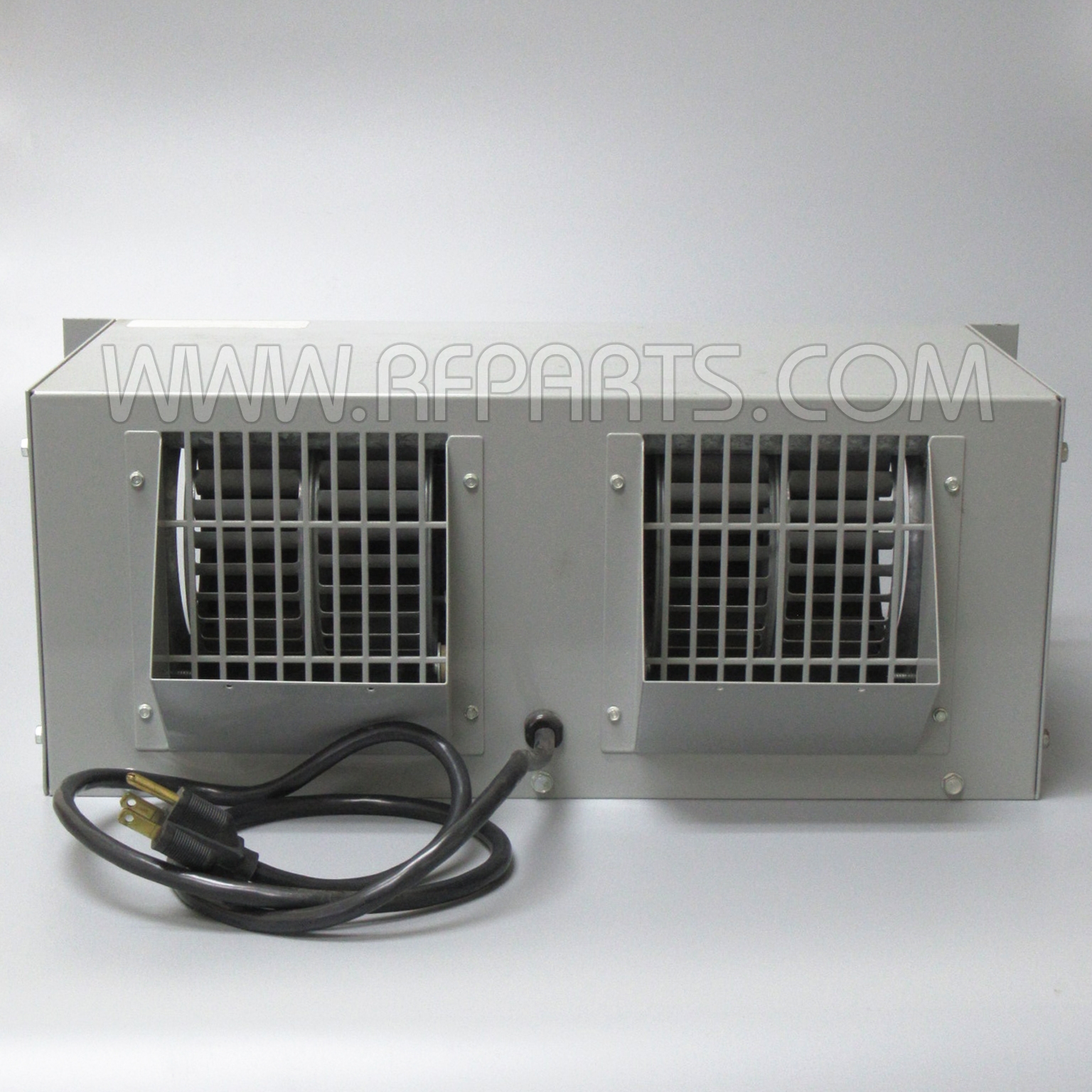

KP729A Kooltronic Standard Twin Packaged Blower (Pull)

KP729A Kooltronic Standard Twin Packaged Blower (Pull)

Standard Twin Packaged Blowers are the most popular KOOLTRONIC Packaged Blower. These blowers achieve exceptional performance through use of the largest possible blower housings and wheels. Each contains a quadruplex centrifugal blower powered by a single precision ball‑bearing motor. These widely‑used Standard Twin Packaged Blowers deliver air from more than 50% of their 17'' [431.8mm] width, while conventional blowers deliver air from only about 30%. Internal neoprene isolation mounts reduce transmission of vibration and AC hum to the enclosure. Long service life and trouble‑free performance are assured through the use of precision ball‑bearing motors in all models and by the dual inlet quadruplex design, which uses intake air to cool the motor.

Removed from large cabinet—does not include filter cover.

• Operating Voltage: 115 VAC
• Nominal Voltage: 120 VAC
• Nominal Height: 178 mm
• Nominal Width: 483 mm
• Nominal Depth: 260 mm
• Air Flow: 470 CFM
• Current Rating: 1.7 A
• Power Consumption: 185 W
• Fan Speed: 3,250 RPM
• Bearing Type: Ball
• Discharge Style: Twin Rear Angled
• Flange: No
• Locked Rotor Protection: No
• Approvals CSA, UL
• Net Weight: 18 lbs
• Gross Weight: 18 lbs

Used * No longer available for export
MFR: Kooltronic for Equipto Elect
