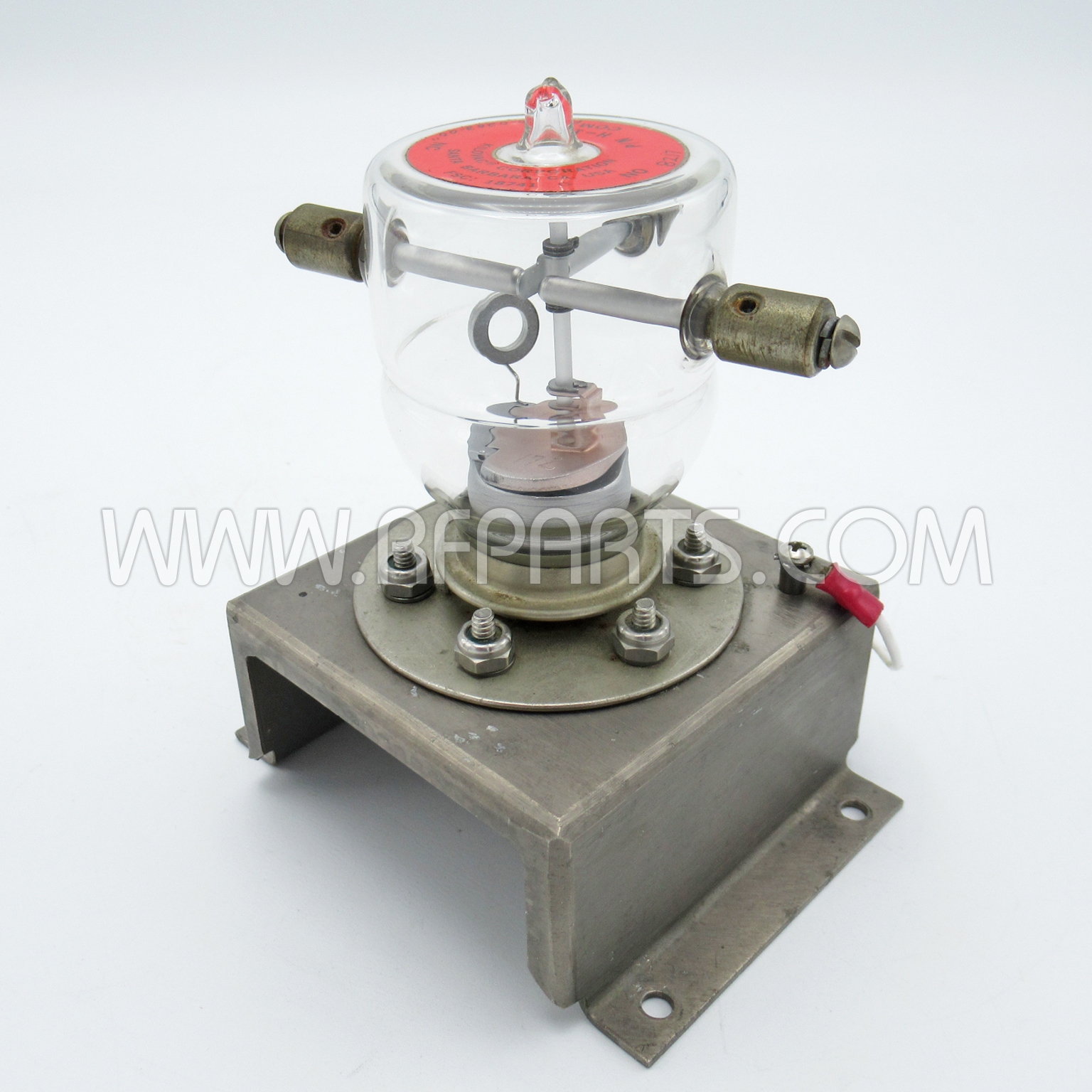

H-17 Kilovac Vacuum Relay 26.5VDC 120 Ω 30A SPDT Threaded Mount (Pull)

Roll over image to zoom
In Stock

The H-17 SPDT Vacuum Relay will isolate 12 kV at 32 MHz. The Tungsten contacts are suitable for power switching low current loads.
Meets requirements of MIL-R-83725.

Coil Data
Nominal Volts DC: 12 Vdc 26.5 Vdc 115 Vdc
Pickup, Maximum: 8 Vdc 16 Vdc 80 Vdc
Dropout: .5-5 Vdc 1-10 Vdc 5-50 Vdc
Coil Resistance (±10%) 120 Ω

Used * Clean Condition * No longer available for export
MRF: Kilovac Made in USA
SKU: H-17

Made in the USA

Be the first to review this product


H-17 Kilovac Vacuum Relay 26.5VDC 120 Ω 30Amp SPDT Threaded Mount (Pull)

Contact Arrangement — SPDT
Contact Form — C
Test Voltage, DC or 60 Hz (Peak): 30 kV
Rated Operating Voltage (Peak) DC or 60 Hz: 25 kV
  2.5 MHz  20 kV
  16 MHz — 15 kV
  32 MHz — 12 kV
Continuous Carry Current, Maximum DC or 60 Hz: 30 A
  2.5 MHz — 16 A
  16 MHz — 10 A
  32 MHz — 8 A
Coil Hi-Pot (60 Hz): 500 A
Contact Capacitance:
  Between Open Contacts: 1 pF
  Open Contacts to Ground: 2.5 pF
  Contact Resistance, Maximum: 0.015 ohm
Operate Time, Maximum: 25 ms
Release Time, Maximum: 25 ms
Shock, 11ms, 1/2 Sine (Peak): 20 g
Vibration (Peak): 10g (55 to 500 Hz)
Operating Ambient Temperature Range: -55°C to +125°C
Mechanical Life: 1 million cycles
Weight, Nominal: 198.4 g (7 oz.)

Used * Clean Condition * No Longer Available for Export
MRF: Kilovac Made in USA

Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
NATO Stock Number N/A
Manufacturer Part Number N/A
Manufacturer Kilovac (Clean Pullout)
Condition New
Call For Price No
Manufacturer Name Kilovac
