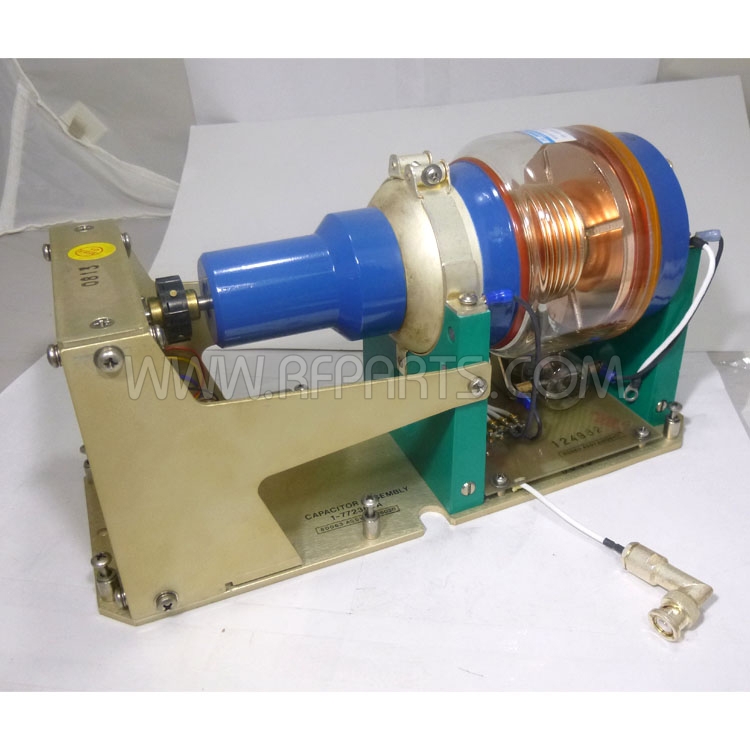

Vacuum Variable Capacitor Assembly with Jennings UCSXF-1200-15S and Kilovac H9/S21 Relay, 15-1200pf 15kv (NOS)
This replacement assembly from older Military equipment includes the following items:
- UCSXF-1200-15S Jennings Vacuum Capacitor
- H9/S21 Kilovac Vacuum Relay
- FYLM 73100-16 Barber Coleman Servo Motor with reduction gear drive
- 9 pin connector assembly
- Aluminum mounting assembly / Case.
Capacitance: 15-1200 pf
Voltage Rating: 15 KVp
Current Rating: 65 amps
Important Dimensions:
Max Length 10.0 in / 254.0 mm (including shaft) Capacitor; 12 in Long x 4.5 in Wide x 6 in High-- Full Assembly
Max Diameter 4.32 in / 109.73 mm
Weight 8.75 lbs (Full Assembly)
Mounting Full assembly has mounting screws for complete mounting
Shaft Round 1/4"
MFR: Jennings / Kilovac
New Old Stock * No longer available for export
New assemblies that have not been in service.
Additional Information
Featured Product | No |
---|---|
Made in the USA | Yes |
GTIN | N/A |
ISBN | N/A |
NATO Stock Number | N/A |
Manufacturer Part Number | N/A |
Manufacturer | No |
Condition | New |
NOS | No |
Call For Price | No |
Manufacturer Name | JENNINGS / KILOVAC |
