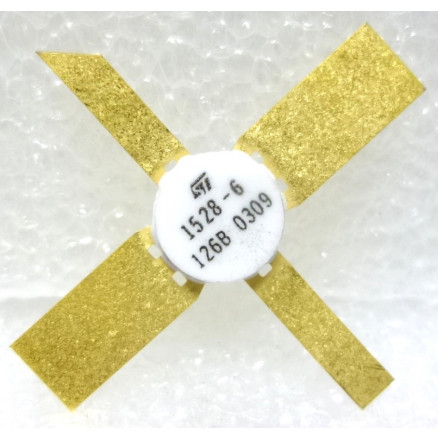

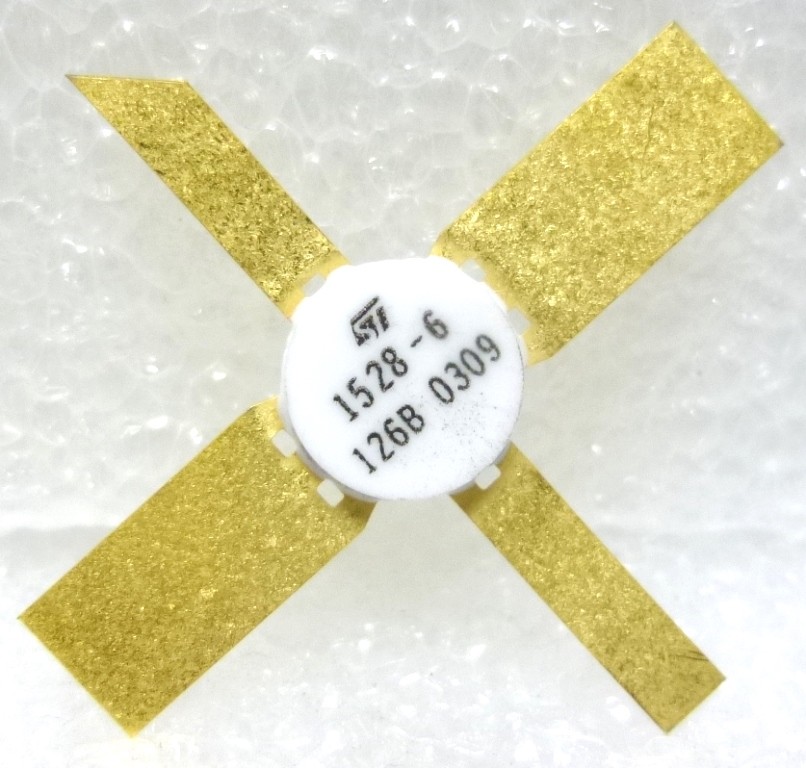

SD1528-06 Transistor, High Power Pulse IFF, DME, TACAN
The SD1528-06 is a gold metallized epitaxial silicon NPN power transistor. The SD1528-06 is designed for applications requiring high peak power and low duty cycles such as IFF, DME and TACAN. The SD1528-06 is packaged in the .280” input matched stripline package, resulting in improved broadband performance and low thermal resistance
- Designed for High Power Pulse IFF, DME, TACAN
- 20.0 w (typ.) IFF 1030-1090 MHz
- 15.0 w (min,) DME 1025-1150 MHz
- 15.0 w (typ.) TACAN 960-1215 MHz
- Greater than 11.2dB Gain
- Refractory gold Metallization
- Emitter Ballasting and Low Thermal Resistance for Reliability and Ruggedness
- 20:1 Load -- VSWR capability at specified Operating conditions
- Input matched, Common Base Configuration
See Data sheet for more info.
MFR: ST MIcro
Limited Quantity Available, New Old Stock, Not for Export
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | Yes |
| Call For Price | No |
| Manufacturer Name | ST Micro |
