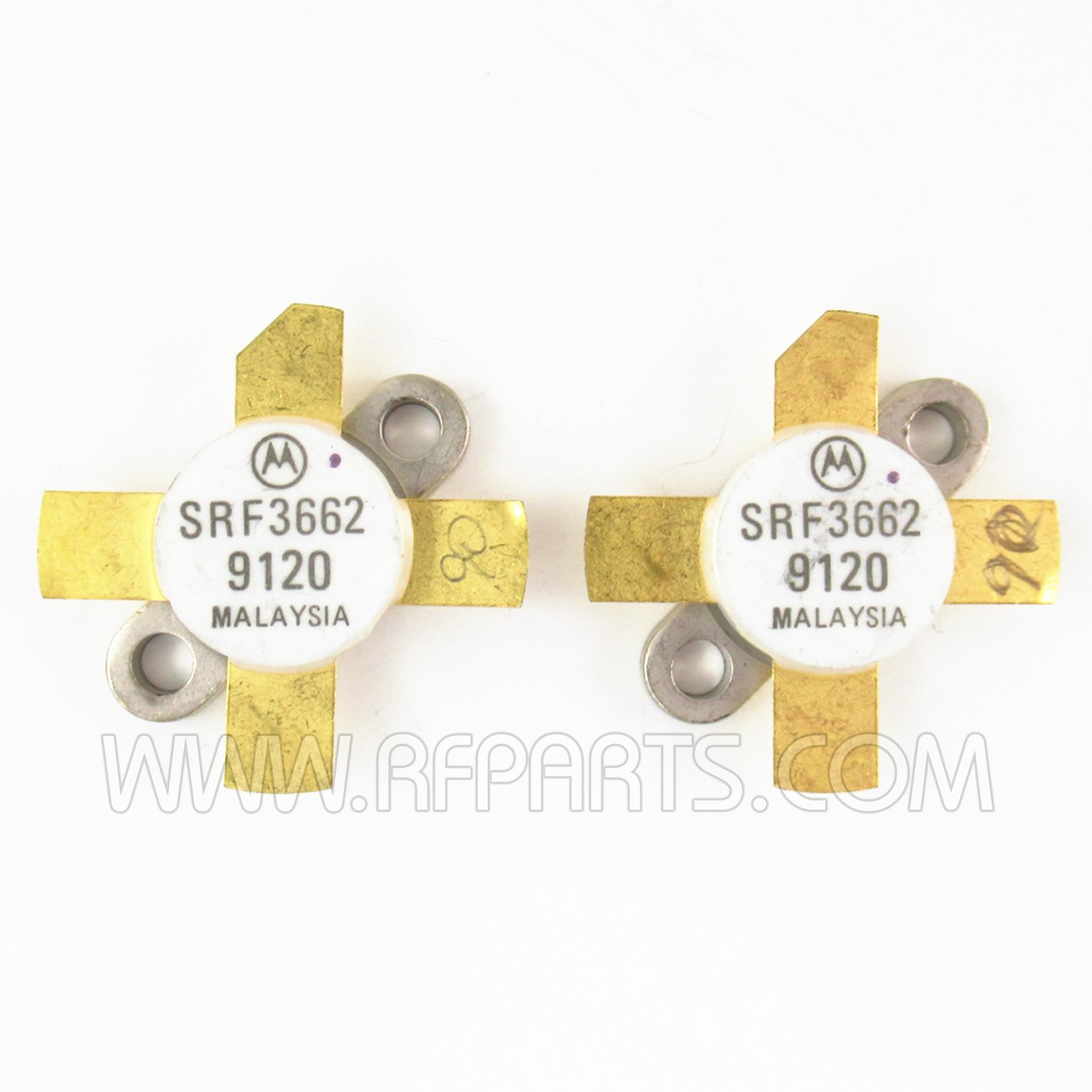

SRF3662 Motorola Transistor 12.5V 100W Matched Pair (2) (NOS)

Out of Stock

Transistor 12.5 Volts 100 Watts
Matched Pair (2)
New Old Stock * No longer available for export
MFR: Motorola

Be the first to review this product


SRF3662MP Motorola Transistor Matched Pair (2) 12 volt 100+ watts

The SRF3662 was exclusive part labeled for RF Parts Co by Motorola. The part is High Gain Selected MRF421. The SRF3662 was selected for Beta as Blue Dot or above.

Designed primarily for application as a high–power linear amplifier from 2.0 to 30 MHz.

  • Specified 12.5 V, 30 MHz characteristics — Output power = 100+ Watts (PEP), Minimum gain = 10 dB, Efficiency = 40%
  • Intermodulation distortion @ 100 W (PEP) — IMD = –30 dB (min.)
  • 100% tested for load mismatch at all phase angles with 30:1 VSWR
  • Specifications
  • Min Frequency: 1 MHz
  • Gain: 10 dB
  • Bias Voltage: 12.5 V
  • Max Frequency: 30 MHz
  • Efficiency: 40 %
  • Pout: 100+ Watts

New Old Stock * No longer available for export
MFR: Motorola

You may also be interested in the following product(s)

Additional Information

Featured Product No
Made in the USA No
NATO Stock Number N/A
Manufacturer Part Number N/A
Manufacturer Motorola
Condition New
Call For Price No
Manufacturer Name No

Product Attachments

MRF421 pdf 184.16 KB Download
