Details

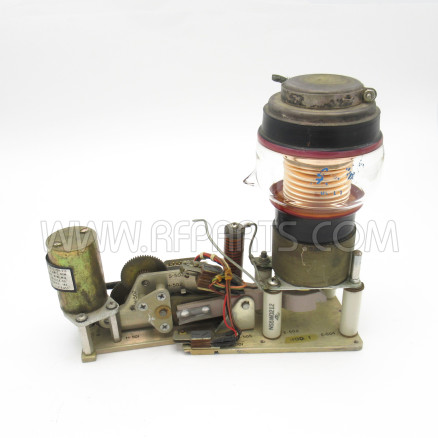

UCSL-1000-3D345 Jennings Vacuum Variable Assembly (Pull)
- Variable capacitor motor drive assembly removed from equipment.
- Comes with Jennings UCSL-1000 vacuum variable rated 7-1000pf at 3kv.
- Assembly has Gear driven motor drive mounted on aluminun plate and comes with DC Motor from Globe Industries (Part # C-25A-511).
- Motor spec: 27.5 volts nom., 6 amps nom., 1/100 hp at 15000 rpm min.
- Assembly is 8 inch long x 3 inch wide x 7 inch high.
- UCSL-1000 is mounted on 4 NS5W0212 ceramic standoff insulators.
Used
MFR: Jennings
Removed from military equipment (Maybe Collins?)
See the Data Sheet link for some data (USCL-1000 DATA) on this capacitor (copied from a manual for the antenna coupler which used this unit). Also a hand-written control circuit sent to us by a customer several years ago. We think this information will be useful, but we can make no warranties concerning its completeness or accuracy.
Made in the USA
You may also be interested in the following product(s)
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Jennings (Vacuum Variable) |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | OO |
