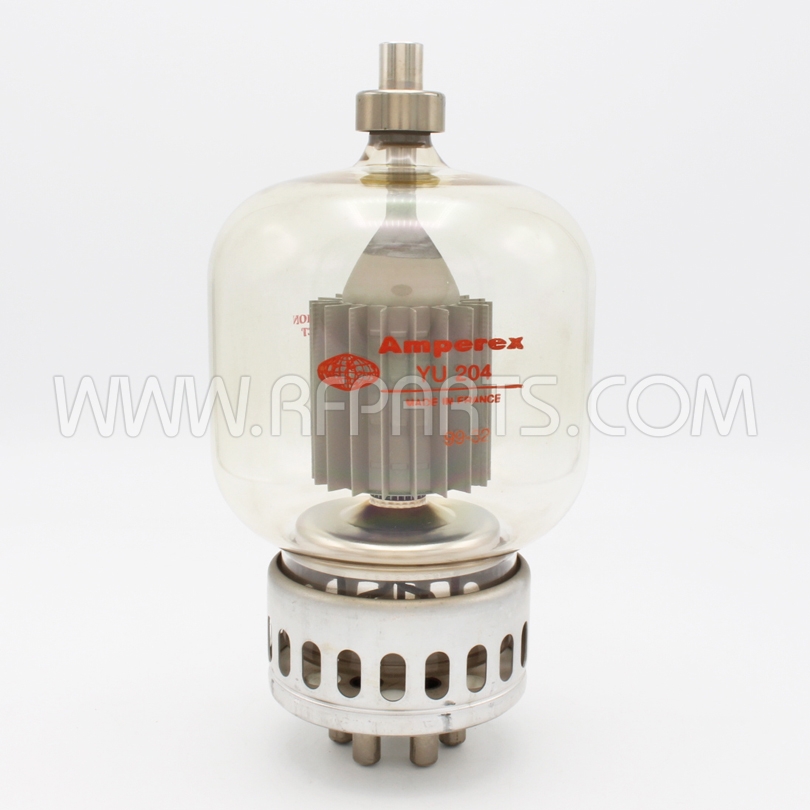

YU-204 Amperex Transmitting Pulse Tetrode (Improved 4PR1000A) (Pull)

Roll over image to zoom
$1,991.90
In Stock
OR

The YU204 is a pulse tetrode intended for use in pulse modulator, pulsed-amplifier and pulsed-oscillator service. This compact, high vacuum radial-beam tetrode, incorporating a molybdenum anode and non-emitting grids, is recommended for use in new equipments where high voltage, high current, or high duty factor is encountered.


Clean Used * No longer available for export
MFR: Amperex
Made in France
SKU: YU-204-AMP-P


This tube has been recently tested and meets all technical specifications. The Warranty period for this tube is Thirty Days from the date of purchase, for the original customer only.  Please follow the instruction insert for proper installation.


Be the first to review this product


Details

YU-204 Amperex Transmitting Pulse Tetrode (Improved 4PR1000A) (Pull)

The YU204 is a pulse tetrode intended for use in pulse modulator, pulsedamplifier and pulsed-oscillator service. This compact, high vacuum radial-beam tetrode, incorporating a molybdenum anode and non-emitting grids, is recommended for use in new equipments where high voltage, high current, or high duty factor is encountered.

Cooling of the tube is accomplished by radiation from the anode and by circulation of forced-air through the base and around the envelope. Cooling can be simplified by the use of the SK-510 Air System Socket and the SK-506 Air chimney.

The YU204 is specially designed for medical MRI applications where high noise immunity and high stability are required. It is an improved version of 4PR-1000A (Radial Beam Pulse Tetrode).

Maximum ratings for oscillator use are as follows:
Peak DC Plate Voltage:  20 kV
DC Screen Voltage:  2.5 kV
DC Grid Voltage:  1 kV
Peak Cathode Current:  12 A
Plate Dissipation:  1 kW
Screen Dissipation:  75 W
Grid Dissipation:  25 W
Highest Frequency:  110 MHz
Amplification Factor Grid to Screen is:  6.9
Filament Current -at- 5.0 V is:  21.4 A (nom. Filament Voltage is 7.5 V)

Clean Used * No Longer Available for Export
MFR: Amperex
Made in France

This tube has been recently tested and meets all technical specifications. The Warranty period for this tube is Thirty Days from the date of purchase, for the original customer only.  Please follow the instruction insert for proper installation.
