RF Parts Company

Andrew Heliax Cable
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.

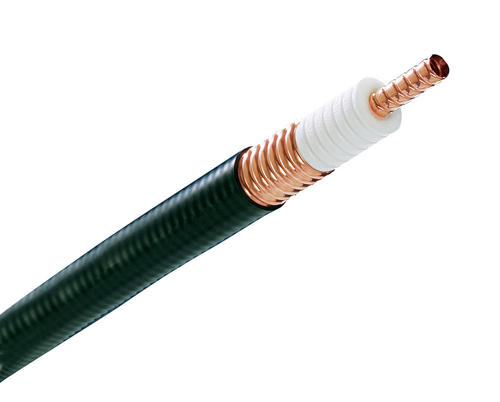

AVA6-50

AVA6-50 — 50 ohm

AVA6-50

FXL-1480 — 50 ohm


Heliax Coaxial Cable : 1/4" FSJ1 , LDF1 | 3/8" FSJ2 , LDF2 | 1/2" FSJ4 , LDF4 , HL4RP | 5/8" LDF4.5 | 7/8" LDF5 , AVA5 , FXL-780 | 7/8" LDF6-50 | LDF7-50A | AVA7-50

Heliax Accessories | Heliax Specials | Coaxial Cable
Cable Information
Download PDF  AVA6-50, HELIAX® Andrew Virtual Air™ Coaxial Cable, 7/8” Corrugated Copper, Black PE Jacket
Download PDF  FXL-1480, HELIAX® Andrew Flexible Coaxial Cable, smoothwall aluminum, 7/8 in, black PE jacket
Characteristics
Construction Materials   Dimensions
  AVA6-50 FXL-1480     AVA6-50 FXL-1480
Jacket Material PE PE   Nominal Size 1-1/4 in. 1-1/4 in.
Outer Conductor Material Corrugated Copper Smoothwall Aluminum   Cable Weight 0.46 lb/ft
0.68 kg/m 		0.45 lb/ft
0.67 kg/m
Dielectric Material Foam PE Foam PE   Diameter Over Dielectric

1.34 in
 34.036 mm

1.57 in
39.878 mm
Flexibility Standard Standard   Diameter Over Jacket 1.56 in
39.624 mm 		1.57 in
39.878 mm
Inner Conductor Material Corrugated Copper tube Copper tube   Inner Conductor OD 0.552 in
 14.028 mm 		0.55 in
14.10 mm
Jacket Color Black Black   Outer Conductor OD 1.420 in
 36.068 mm 		1.480 in
37.60 mm
Electrical Specifications   Environmental Specifications
  AVA6-50 FXL-1480     AVA6-50 FXL-1480
Cable Impedance 50 ohm ± 1 50 ohm ± 1   Installation Temperature -40°F to +140°F
-40°C to +60°C		 -
Capacitance 22 pF/ft
72 pF/m 		22.9 pF/ft
72.0 pF/m		   Operating Temperature -67°F to +185°F
-55°C to +85°C		 -
dc Resistance, Inner Conductor (ohms) 0.530/kft
1.740/km 		0.450/kft
1.480/km 		  Storage Temperature -94°F to +185°F
-70°C to +85°C		 -
dc Resistance, Outer Conductor (ohms) 0.230/kft
0.750/km		 0.150/kft
0.490/km
dc Test Voltage 8500 V 9000 V   Mechanical Specifications
Inductance (µH) 0.057/ft
0.187/m		 0.058/ft
0.190/m		   Bending Moment 22.0 ft lb
29.8 N-m 		75.0 ft lb
102.0 N-m
Insulation Resistance 100000 MOhm 100000 MOhm   Flat Plate Crush Strength 75.0 lb/in
1.3 kg/mm 		200.0 lb/in
3.6 kg/mm
Jacket Spark Test Voltage (rms) 10000 V 10000 V   Minimum Bend Radius, Multiple Bends 10.00 in
255.00 mm 		8.00 in
203.20 mm
Operating Frequency Band 1-3700 MHz 100-3300 GHz   Minimum Bend Radium, Single Bend 5.00 in
127.00 mm
Peak Power 180.0 kW 205.0 kW   Number of Bends, minimum 15 15
Pulse Reflection 0.5% -   Number of Bends, typical 40 -
Velocity 92% 89%   Tensile Strength 340 lb
154 kg 		1300 lb
590 kg
Standard Conditions   Return Loss
  AVA6-50 FXL-1480     AVA6-50 FXL-1480
Attenuation, Ambient Temperature 68°F
20°C		 68°F
20°C		   800-2500 MHz - VSWR 1.1
26.40 dB
Average Power, Ambient Temperature 104°F
40°C		 104°F
40°C		   806-960 MHz VSWR 1.13
24.30 dB 		-
Average Power, Inner Condurtor Temperature 212°F
100°C


 212°F
100°C


   1700-2000 MHz VSWR 1.13
24.30 dB 		-
Attenuation & Average Power
Frequency
MHz 		Attenuation
dB/100 ft. 		Attenuation
dB/100 m 		Average
Power, kW
0.5
0.023
0.078
91.00
1
0.033
0.108
77.97
1.5
0.04
0.132
63.61
2
0.046
0.153
55.06
10
0.105
0.343
24.48
20
0.149
0.487
17.23
30
0.183
0.599
14.02
50
0.237
0.777
10.81
88
0.317
1.039
8.08
100
0.338
1.11
7.57


Price per Foot
Photo Data Sheet Part Number

Description

 10-24
ft. 		25-49
ft. 		50-99
ft. 		100-499
ft. 		500 +
ft.
Andrew Corp. Logo
AVA6-50
Download PDF
AVA6-50
1-1/4" Corrugated Copper
 12.95 12.75 12.25 11.50 10.95
Andrew Corp. Logo
FXL-780
Download PDF
FXL-1480
1-1/4" Aluminum
5.75 5.50 5.30 5.15 4.95
Connectors for 1-1/4" Heliax
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo

AL6NF-PSA
Type N Female Positive Stop
 109.95

Andrew Corp. Logo

AL6NM-PSA
Type N Male Positive Stop
 109.95
Andrew Corp. Logo

AL6DF-PSA
716 DIN Female Positive Stop
 109.95
Andrew Corp. Logo

AL6DM-PSA
716 DIN Male Positive Stop
 109.95
Andrew Corp. Logo

114EZNM
TYPE-N MALE, EZ-FIT
 102.95
Andrew Corp. Logo

114EZNF
TYPE-N FEMALE, EZ-FIT
 102.95
Andrew Corp. Logo

114EZDF
7/16-DIN FEMALE, EZ-FIT
 102.95
Andrew Corp. Logo

114EZDM
7/16-DIN MALE, EZ-FIT
 102.95
Accessories for 1-1/4" Heliax
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
Sureground Grounding Kit

SGL6-15B4
Compact Sureground Kit with 2-hole lug
 39.95

SG114-12B2U
Sureground Kit with 2-hole lug
 32.95
Andrew Corp. Logo
42396A


42396A-1
Hanger Kit for 1-1/4" Coaxial Cable, 10/Pkg.
32.95
Andrew Corp. Logo
Hoisting Grip

L6SGRIP
Hoisting Grip for 1-1/4"Heliax
 35.95
Andrew Corp. Logo
CPTL6




A6-EZPT
Automated Cable Prep Tool for 1-1/4" Coaxial Cable
449.95
Andrew Corp. Logo

MCPT-78
EASIAX Prep Tool for 7/8" Coaxial Cable
34.95

L6CLICK
DOUBLE CLICK-ON CABLE HANGERS, 10/PKG.
 35.95
