Andrew Heliax Cable
Minimum Order: $25.00 in Parts
Product Returns are subject to 15% Re-stock fee.

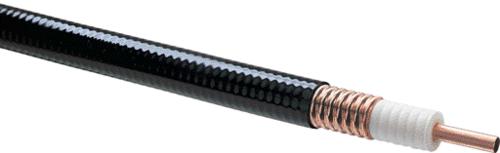

LDF6-50 — 50 ohm

Cable Information
Standard Cable LDF6-50    Fire Retardant Cable LDF6RN-50
1 1/4” Standard Cable, Standard Jacket   1 1/4” Fire Retardant Jacket (CATVR)
Characteristics
LDF6-50
Mechanical
  Outer Conductor Copper
  Inner Conductor Copper
Electrical
  Diameter over Jacket, in (mm) 1.55 (39.4)
Impedance, ohms 50 ± 1   Diameter over Copper Outer Conductor, in (mm) 1.41 (35.8)
Maximum Frequency, GHz 3.3   Diameter Inner Conductor, in (mm) 0.516 (13.1)
Velocity, percent 89   Minimum Bending Radius, in (mm) 15 (380)
Peak Power Rating, kW 205   Cable Weight, lb/ft (kg/m) 0.63 (0.94)
Attenuation & Average Power
Frequency
MHz
Attenuation
dB/100 ft.
Attenuation
dB/100 m
Average
Power, kW
30
0.135
0.444
22.0
50
0.176
0.579
16.9
150
0.314
1.03
9.47
200
0.367
1.20
8.12
894
0.841
2.76
3.54
1500
1.14
3.73
2.62
2300
1.47
4.82
2.03
Price per Foot
Photo Data Sheet Part Number

Description

10-24
ft.
25-49
ft.
50-99
ft.
100-499
ft.
500 +
ft.
Andrew Corp. Logo
LDF6-50


Download PDF
LDF6-50
1-1/4" Heliax
Please contact us for current pricing.
Andrew Corp. Logo
LDF6RN-50


Download PDF
LDF6RN-50
1-5/8" Heliax Fire Retardant
Connectors for LDF6-50
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
L6PNM-RPC
Download PDF
L6PNM-RPC
OnePiece N-Male for 1-1/4"

Andrew Corp. Logo
L6PNF-RPC
Download PDF
L6PNF-RPC
TYPE-N FEMALE CONNECTOR

Andrew Corp. Logo
Download PDF
L6TDM-PS
Positive Stop 7/16 DIN Male for LDF6

Andrew Corp. Logo
Download PDF
L6TDF-PS
Positive Stop 7/16 DIN Female for LDF6

Andrew Corp. Logo
L46S



L46S
7/8" EIA Flange Gas Pass for 1-1/4"

Andrew Corp. Logo
L46R


Download PDF
L46R
1-5/8" EIA Flange Gas Pass for 1-1/4"

Accessories for LDF6-50
Photo Data
Sheet
Part Number Description Price Ea.
Andrew Corp. Logo
42396A



42396A-1
Hanger Kit for 1-1/4" Coax, 10/Pkg.

Andrew Corp. Logo
Sureground Grounding Kit

SGL6-06B2
Ground Kit w/ attach 2 hole lug for 1-1/4"

Andrew Corp. Logo
L6SGRIP




Download PDF
L6SGRIP

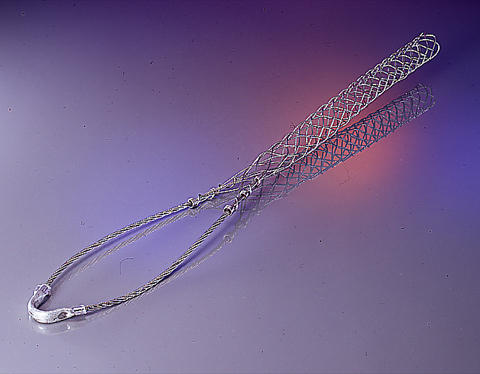

Pre-Laced Hoisting Grip for 1-1/4"

Andrew Corp. Logo
CPTL6



  CPTL6
EASIAX PLUS CABLE AUTOMATIC PREP TOOL
