LDF5-50A — 50 ohm

Cable Information
Standard Cable LDF5-50A    Fire Retardant Cable LDF5RK-50A
7/8” Standard Cable, Standard Jacket   7/8” Fire Retardant Jacket (CATVX or CATVR)
Characteristics
LDF5-50A
Mechanical
  Outer Conductor Copper
  Inner Conductor Copper
Electrical
  Diameter over Jacket, in (mm) 1.09 (28)
Impedance, ohms 50 ± 1   Diameter over Copper Outer Conductor, in (mm) .98 (24.9)
Maximum Frequency, GHz 5.0   Diameter Inner Conductor, in (mm) 0.355 (9.0)
Velocity, percent 89   Minimum Bending Radius, in (mm) 10 (250)
Peak Power Rating, kW 91   Cable Weight, lb/ft (kg/m) 0.33 (0.49)
Attenuation & Average Power
Frequency
MHz
Attenuation
dB/100 ft.
Attenuation
dB/100 m
Average
Power, kW
30
0.195
0.641
14.1
50
0.254
0.833
10.8
150
0.449
1.47
6.12
200
0.523
1.72
5.26
894
1.18
3.87
2.34
1500
1.58
5.18
1.74
2300
2.02
6.63
0.918
Price per Foot
Photo Data Sheet Part Number

Description

10-24
ft.
25-49
ft.
50-99
ft.
100-499
ft.
500 +
ft.
Andrew Corp. Logo
LDF5-50A


Download PDF
LDF5-50A

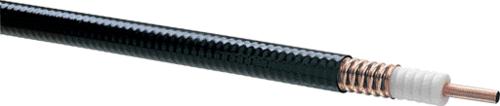

7/8" Foam Heliax
6.50 6.25 5.95 5.75 5.60
Connectors for LDF5-50A
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
L5TNM-PS
Download PDF
L5TNM-PS
TYPE-N MALE, POSITIVE STOP

34.95
Andrew Corp. Logo
L5TNF-PS
Download PDF
L5TNF-PS
TYPE-N FEMALE CONNECTOR, POSITIVE STOP
34.95
Konectz
Download PDF
Cable Assembly
Instructions
NF-78R
TYPE-N FEMALE CONNECTOR
27.95
Andrew Corp. Logo
Download PDF
L5TDM-PS
7/16 DIN MALE CONNECTOR, POSITIVE STOP
34.95
Konectz
Download PDF
Cable Assembly
Instructions
716M-78R
7/16 DIN MALE CONNECTOR
27.95
Andrew Corp. Logo
Download PDF
L5TDF-PS
7/16 DIN FEMALE CONNECTOR, POSITIVE STOP
34.95
Konectz
Download PDF
Cable Assembly
Instructions
716F-78R
7/16 DIN FEMALE CONNECTOR
27.95
Andrew Corp. Logo
L45R


Download PDF
L45R
7/8" EIA Flange
184.95
Accessories for LDF5-50A
Photo Data
Sheet
Part Number Description Price Ea.
Andrew Corp. Logo
Sureground Grounding Kit

CSGL5-15B4T
Grounding Kit, for 7/8" Coaxial Cable
37.95
Andrew Corp. Logo
42396A



42396A-5
Hanger Kit for 7/8" Coaxial Cable, 10/Pkg.
28.95
Andrew Corp. Logo
Hoisting Grip

L5SGRIP
Hoisting Grip for 7/8"Heliax
32.95
Andrew Corp. Logo
CPTL6




CPT78U
EASIAX PLUS Automated Cable Prep Tool for 7/8" Coaxial Cable
269.95

CPT-BK5
REPLACEMENT BLADES FOR CPT-78U, 5/PKG.
69.95
Andrew Corp. Logo
MCPT-1412

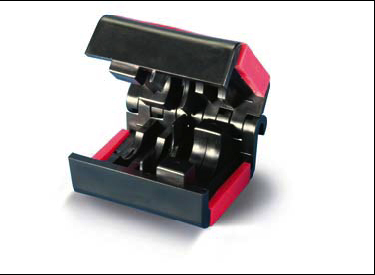

MCPT-78
EASIAX Prep Tool for 7/8" Coaxial Cable
34.95

MCPT-BK5
REPLACEMENT BLADES FOR MCPT-78, 5/PKG.
12.95
Andrew Corp. Logo
42396A



42396A-5
Hanger Kit for 7/8 " Coax, 10/Pkg.
32.95
