Andrew Heliax Cable
Minimum Order: $25.00 in Parts
Product Returns are subject to 15% Re-stock fee.

LDF4-50A — 50 & 75 ohm





Cable Information
Standard Cable LDF4-50A    Fire Retardant Cable LDF4RK-50A
1/2” Standard Cable, Standard Jacket   1/2” Fire Retardant Jacket (CATVX or CATVR)

Plenum Cable HL4RP    75 Ohm, Standard Cable LDF4-75
1/2” Plenum Rated Air Dielectric Cable, 50ohm   See: LMR600-75
Characteristics
LDF4-50A
Mechanical
  Outer Conductor Copper
  Inner Conductor Copper-Clad Aluminum
Electrical
  Diameter over Jacket, in (mm) 0.63 (16)
Impedance, ohms 50 ± 1   Diameter over Copper Outer Conductor, in (mm) .55 (14)
Maximum Frequency, GHz 8.8   Diameter Inner Conductor, in (mm) 0.189 (4.6)
Velocity, percent 88   Minimum Bending Radius, in (mm) 5 (125)
Peak Power Rating, kW 40   Cable Weight, lb/ft (kg/m) .15 (0.22)
Attenuation & Average Power
Frequency
MHz
Attenuation
dB/100 ft.
Attenuation
dB/100 m
Average
Power, kW
30
0.357
1.17
6.46
50
0.463
1.52
4.98
150
0.815
2.67
2.83
200
0.946
3.10
2.44
894
2.09
6.05
1.10
1500
2.77
9.09
.833
2300
3.52
11.5
0.657
Price per Foot
Photo Data Sheet Part Number

Description

10-24
ft.
25-49
ft.
50-99
ft.
100-499
ft.
500 +
ft.
Andrew Corp. Logo

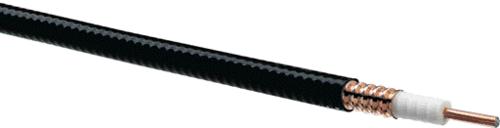

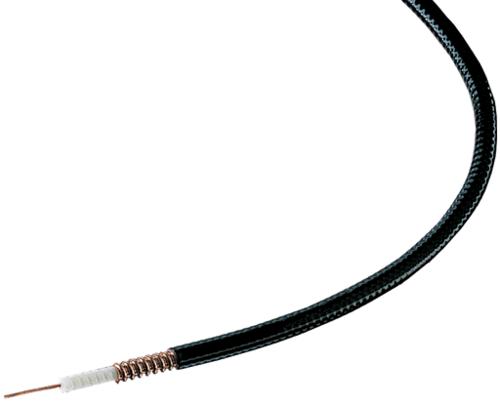

LDF4-50A


Download PDF
LDF4-50A
1/2" Heliax
50 ohm
2.95
2.80
2.65
2.48
2.38
Andrew Corp. Logo

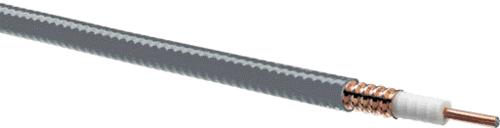

LDF4RN-50A


Download PDF
LDF4RK-50A
1/2" Heliax Fire Retardant
3.50 3.35 3.15 2.95 2.85
Andrew Corp. Logo




HL4RP
1/2" Plenum Rated
50 Ohm
4.25 4.10 3.95 3.85 3.65
Connectors for LDF4-50A
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
Download PDF
L4TNM-PSA
POSITIVE STOP N-MALE FOR 1/2"
$25.95
Andrew Corp. Logo
Download PDF
L4TNF-PSA
POSITIVE STOP N-FEMALE FOR 1/2'
25.95
Andrew Corp. Logo
Download PDF
L4TNR-HC
RT ANGLE N-MALE HEX NUT W/ CAPT PIN
39.95
Andrew Corp. Logo
Download PDF
L4TDM-PSA
7/16 DIN MALE FOR 1/2"
25.95

Download PDF
Cable Assembly
Instructions
716M-12R
7/16 DIN MALE
Limited Quantity
14.95

716F-12R
7/16 DIN FEMALE
Limited Quantity
14.95
Andrew Corp. Logo
Download PDF
L4TDF-PSA
7/16 DIN FEMALE FOR 1/2"
25.95
Andrew Corp. Logo
Download PDF
L44P
UHF MALE FOR 1/2"
see RFU-502-H1
RF logo
RFU-502-H1
Download PDF
RFU-502-H1
UHF MALE CLAMP FOR 1/2", WB-S-T
 34.95
Andrew Corp. Logo
Download PDF
L44U
UHF FEMALE FOR 1/2"
see RFU-520-H1
RF logo
Download PDF
RFU-520-H1
UHF FEMALE CLAMP FOR 1/2", WB-S-T
 34.95

L44PW-P
TYPE-N MALE FOR LDF4-50
Used - Removed from equipment and cleaned

Limited Quantity
12.95
Special

L44PW-P1
TYPE-N MALE FOR LDF4-50
Used - connector with cable pigtail attached

Limited Quantity
8.95
Special

L44R
EIA Flange FOR LDF4-50
144.95

Download PDF
Cable Assembly
Instructions
NM12R
TYPE-N MALE
Limited Quantity
15.95
Special

NF12R
TYPE-N FEMALE
Limited Quantity
15.95
Special
Accessories for LDF4-50A
Photo Part Number Description Price Ea.
Andrew Corp. Logo
42311


43211A
Hanger Kit for 1/2 " Coax, 10/Pkg.
w/ Hardware
$19.95
Special
Andrew Corp. Logo


31769-1
Hardware Kit w/ lockwasher & nut.
Limited Quantity

(10 pcs.)
6.95
Special

Andrew Corp. Logo
SUREGROUND


SGL4-15B4
Sureground Grounding Kit for LDF4-%) w/ 2 hole field attached lug.
24.95
Andrew Corp. Logo
43094


43094
HOISTING GRIP FOR 1/2" COAX
24.95
Andrew Corp. Logo
CPT-L4ARC1



CPT-L4ARC1

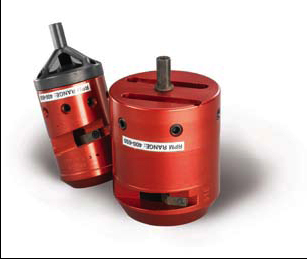

EASIAX PLUS CABLE AUTOMATED PREP TOOL
242.95
Andrew Corp. Logo

MCPT-L4
MANUAL PREP TOOL
25.95
Mfg. Konectz
CPT-12R
Automated Cable Prep Tool for LDF4-50
For 12R Style Connectors
99.95
30848-5
30848-5
Tower Standoff 0.75"-1.5"

(10 pcs.)
39.95
Special

43094
Andrew Corp. Logo


224363
Cable Flaring Tool for 1/2" cable.
59.95

221213
Weather Proofing Kit, Seal and Tape.
24.95
Special

252147
4" Cable Entry Boot w/ 3-holes for 1/2" cable.
24.95
Special
