LDF4.5-50A — 50 ohm





Cable Information

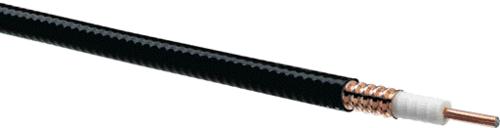

Standard Cable LDF4.5-50A
5/8” Standard Cable, Standard Jacket
Characteristics
LDF5-50A
Mechanical
  Outer Conductor Copper
  Inner Conductor Copper-Clad Aluminum
Electrical
  Diameter over Jacket, in (mm) 0.864 (21.97)
Impedance, ohms 50 ± 1   Diameter over Copper Outer Conductor, in (mm) .777 (19.74)
Maximum Frequency, GHz 6.1   Diameter Inner Conductor, in (mm) 0.277 (7.04)
Velocity, percent 89   Minimum Bending Radius, in (mm) 8 (200)
Peak Power Rating, kW 62   Cable Weight, lb/ft (kg/m) 0.27 (0.402)
Attenuation & Average Power
Frequency
MHz
Attenuation
dB/100 ft.
Attenuation
dB/100 m
Average
Power, kW
30
0.254
0.834
9.57
50
0.330
1.08
7.36
150
0.586
1.92
4.15
200
0.682
2.24
3.57
894
1.54
5.05
1.58
1500
2.07
6.78
1.18
2300
2.65
8.70
0.918
Price per Foot
Photo Data Sheet Part Number

Description

10-24
ft.
25-49
ft.
50-99
ft.
100-499
ft.
500 +
ft.
Andrew Corp. Logo
LDF4.5-50


Download PDF
LDF4.5-50
5/8" Heliax
5.15 4.95 4.85 4.65 4.35
Connectors for LDF4.5-50a
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
L4.5PNM-RC
Download PDF
L4.5PNM-RC
N-MALE FOR 5/8" FOAM HELIAX
$ 49.95
Andrew Corp. Logo
L4.5PNF-RC
Download PDF
L4.5PNF-RC
N-FEMALE FOR 5/8' FOAM HELIAX
49.95
Andrew Corp. Logo
L4.5PDM-RC
Download PDF
L4.5PDM-RC
7/16 DIN MALE FOR 5/8" HELIAX
49.95
Andrew Corp. Logo
L4.5PDF-RC
Download PDF
L4.5PDF-RC
7/16 DIN FEMALE FOR 5/8" HELIAX
49.95
Accessories for LDF4.5-50a
Photo Data
Sheet
Part Number Description Price Ea.
Andrew Corp. Logo
42396A



42396A-9
Hanger Kit for 5/8 " Coax, 10/Pkg.

Andrew Corp. Logo
Sureground Grounding Kit

SGL6-06B2
Ground Kit w/ attach 2 hole lug for 1-1/4"

Andrew Corp. Logo
CPT-L45RC



  CPT-L45RC
EASIAX PLUS CABLE AUTOMATED PREP TOOL
