74 Bird Coax Switch 1P 6T 50 ohm DC-10GHz (NOS)

Roll over image to zoom
In Stock

74 Bird Coax Switch 1P 6T 50 Ohm Type-N Female DC-10 GHz
New Old Stock * No longer available for export
MFR: Bird Electronics, USA

Made in the USA

Be the first to review this product

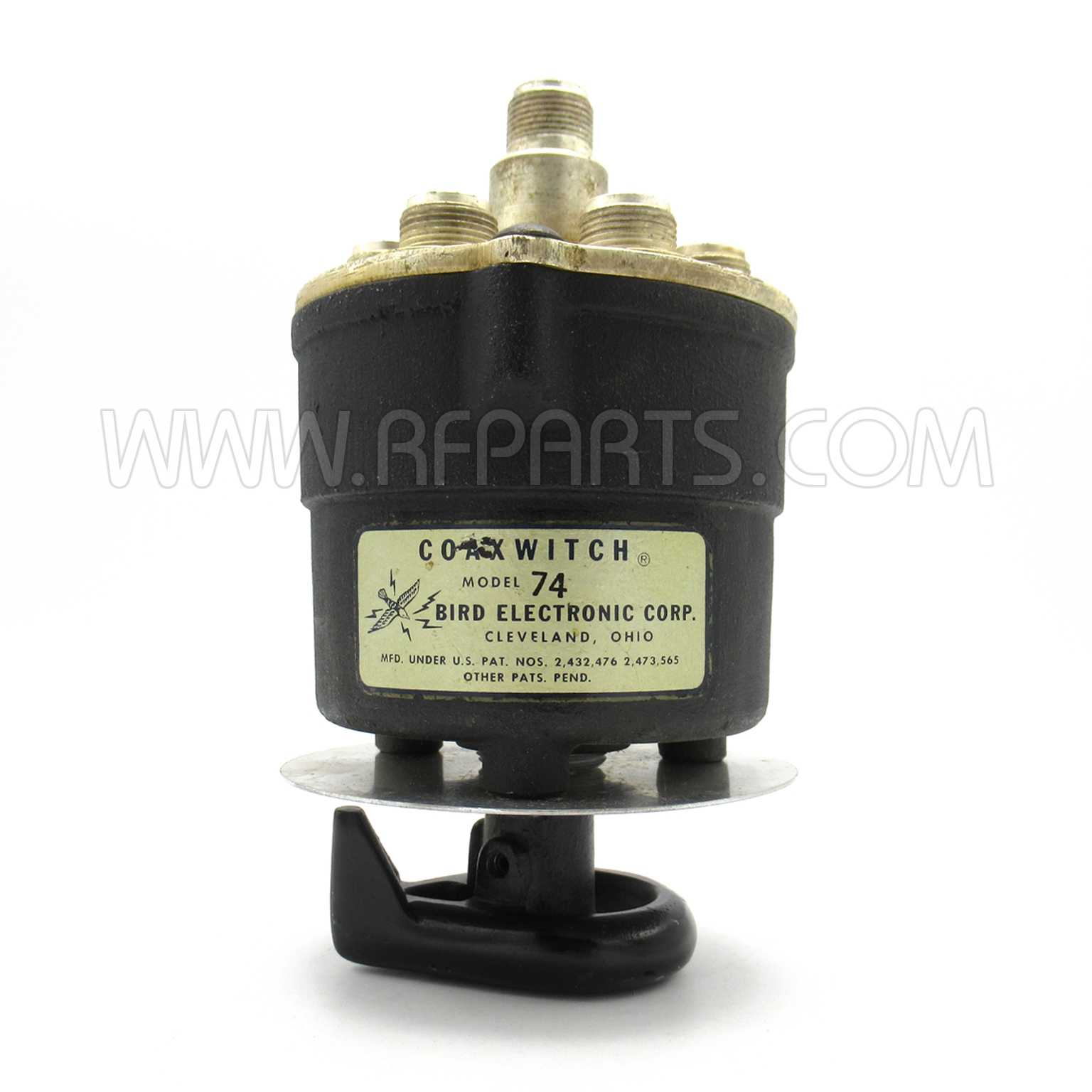

74 Coax Switch, 1P 6T, 50 Ohm, Type-N Female, DC-10GHZ, Bird (NOS)

Limited Quantity Available, New Old Stock, Not for Export

Picture for Reference only, Costmetic condition may vary

74, 50-Ohm - 6 Position Coax - Coaxial Selector Switch
Bird's RF Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4 1/2" of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position.

The Selector Switches may be panel-mounted. All connectors are located on the rear of the housing and are parallel to the shaft of the switch. All connecting cables may be laced together without the use of right-angle adapters.
The switches have a valuable advantage that they cannot be operated accidentally, but must be operated by intentional sequential movement. The knob must be grasped, pulled out, rotated and pushed in to make contact.

  • Switches may be panel-mounted
  • Cannot be operated accidentally
  • Easy to Use
  • Rugged and Reliable

MFR: Bird Electronics

Made in USA




Typical Operation Values
Insertion Loss
Max. RF Power Rating @ 65°C
100 MHz
0.02 dB
850 W
1000 MHz
1.06 max.
0.09 dB
200 W
4000 MHz
1.30 max.
0.22 dB
75 W


product specifications:





Item No 74
Item Name 50-Ohm, 6 Position Coaxial Selector Switch
Positions 6
Coaxial Circuits 1
Frequency Range DC to 10 GHz
Maximum RF Voltage 500 V
Attenuation For unused channel - 75 dB (cross talk)
Temperature Range -60 to +65 °C (-76 to +149 °F)
Weight 2-1/2 lbs. (1.1 kg)
Made in the USA

Additional Information

Featured Product No
Made in the USA Yes
Manufacturer Bird Elec. (Clean used)
Call For Price No
Manufacturer Name Bird Electronics
