Bird Coaxial Switches

Connectors: N-Type (F)
Frequency Range: DC - 10 GHz
RF Voltage: 500 Volts rms (max)
Attenuation to Unused Channel: 75 dB (cross talk)

Used * No longer available for export
MFR: Bird Electronics, USA

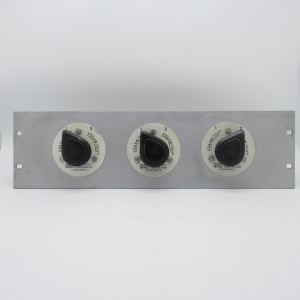

SKU: 72-2-Triple-P

Bird^®, 50-Ohm Coaxial Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switches cannot be operated accidentally, but must be operated by intentional sequential movement.

Clean Used * No longer available for export
MFR: Bird Electronics, USA

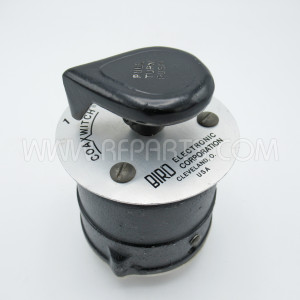

SKU: 72R-P

Picture for reference only, Cosmetic condtion may vary.

• Switches may be panel-mounted
• Cannot be operated accidentally
• Easy to Use
• Rugged and Reliable

Typical Operation Values
Frequency     VSWR    Insertion Loss   RF Power Rating @ 65°C
100 MHz       Negligible     0.02 dB                 850 W
1000 MHz    1.06 max.      0.09 dB                 200 W
4000 MHz    1.30 max.      0.22 dB                  75 W

Used * No longer available for export
MFR: Bird Electronics, USA
SKU: 72-2-P

Designed to handle up to 10 GHz and 500 volts AC.
Connectors: N-Type (Female)
75dB (Cross talk)
Used Excellent Condition * No longer available for export
MFR: Bird Electronics, USA
SKU: 7431-4-P

74S-72 Bird Coaxial Switch 1P 6T 72 Ohm Type-N Female DC-10 GHz
Clean Used w/display * No longer available for export
MFR: Bird Electronics, USA
SKU:74S-72

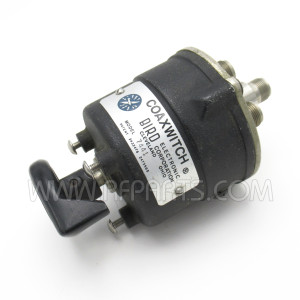

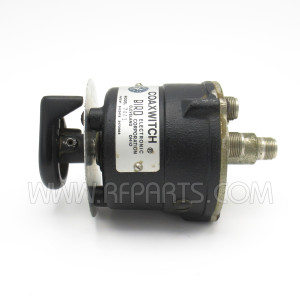

7441 Bird 3 Position Single Circuit Selector Coaxial Switch
Used great condition * No longer available for export
MFR: Bird Electronics, USA
SKU: 7441
Has connectors N Female connectors and a 10 GHz frequency rating. Max voltage of 500V AC. Has a cross talk of 75dB.

Bird's RF Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4 1/2" of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position.

Positions: 6
Coaxial Circuits: 1
Frequency Range: DC to 10 GHz
Maximum RF Voltage: 500 V
Attenuation for unused channel: 75 dB (cross talk)
Temperature Range: -60 to +65 °C (-76 to +149 °F)
Weight:  2-1/2 lbs. (1.1 kg)

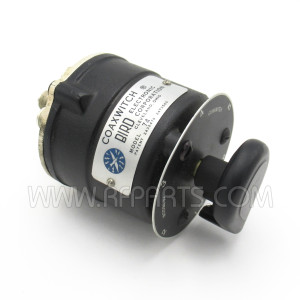

New Old Stock * No longer available for export
MFR: Bird Electronic Corporation
SKU: BIRD74-NOS

Bird^® 50-Ohm Coaxial Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4 1/2" of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position.

Used * No longer available for export
MFR: Bird Electronic Corporation
SKU: 718-P

Picture for reference only, Cosmetic condition may vary

Bird's RF Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4 1/2" of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position.

Positions: 6
Coaxial Circuits: 1
Frequency Range: DC to 10 GHz
Maximum RF Voltage: 500 V
Attenuation for unused channel: 75 dB (cross talk)
Temperature Range: -60 to +65 °C (-76 to +149 °F)
Weight:  2-1/2 lbs. (1.1 kg)

Used * No longer available for export
MFR: Bird Electronic Corporation
SKU: BIRD74-P

NOTE: Picture for reference only. Condition may vary.
