Plate Coupling & Bypass

High Voltage Plate Coupling & Bypass Capacitors
for High Power Linear Amps
Part NumberVoltsuFMax. Plate
Volts
DxL (in.)
3 KV
.004
1.8 KV
0.8 x 0.1
10 KV
.001
10 KV
0.8 x 0.3
10 KV
.002
10 KV
1.1 x 0.3
10 KV
.001
6 KV
0.6 X 0.25
10 KV
.0002
6 KV
0.5 x 0.3
10 KV
.0005
6 KV
0.5 x 0.25
6 KV
.0022
3.5 KV
0.5 x 0.2

List  Grid

per page
Set Descending Direction

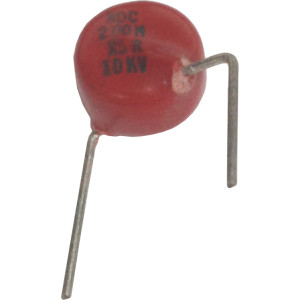

  1. 0002-10KVHDB  High Voltage Capacitor,  .0002uf / 10KV, Radial Lead

    0002-10KVHDB High Voltage Capacitor, .0002uf / 10KV, Radial Lead

    0002-10KVHDB High Voltage Capacitor, .0002uf / 10KV, Radial Lead

    uF: .0002
    Volts: 10 KV
    Max Plate Volts: 6 KV
    Dia. x Length (in.): 0.5x0.3

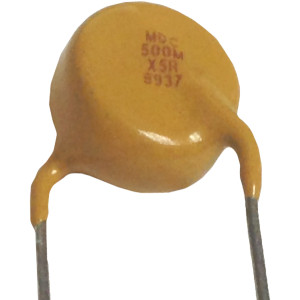

  2. 0005-10KVHDB   High Voltage Capacitor, .0005uf / 10KV, Radial Lead

    0005-10KVHDB High Voltage Capacitor, .0005uf / 10KV, Radial Lead

    $1.95

    0005-10KVHDB High Voltage Capacitor, .0005uf / 10KV, Radial Lead

    uF: .0005
    Volts: 10 KV
    Max Plate Volts: 6 KV

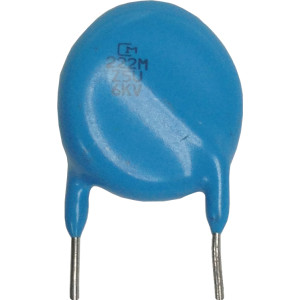

  3. 0022-6KVHDB  HIgh Voltage Capacitor, .0022uf / 6KV, Radial Lead

    0022-6KVHDB HIgh Voltage Capacitor, .0022uf / 6KV, Radial Lead

    0022-6KVHDB High Voltage Capacitor, .0022uf 6KV, Z5U, 222M, MFR: Murata

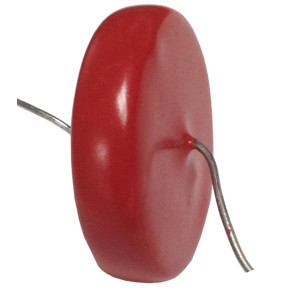

  4. 002UF-10KVHDA  High Voltage Capacitor, .002 / 10KV,  Axial Lead

    002UF-10KVHDA High Voltage Capacitor, .002 / 10KV, Axial Lead

    $2.95

    002UF-10KVHDA High Voltage Capacitor, .002 / 10KV, Axial Lead

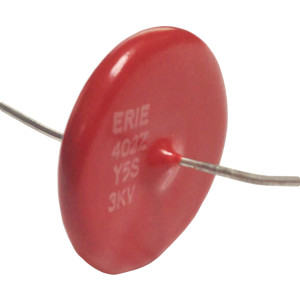

  5. 004-3KVHDA  High Voltage Coupling Cap, .004uf 3KV

    004-3KVHDA High Voltage Coupling Cap, .004uf 3KV

    004-3KVHDA High Voltage Coupling Cap, .004uf 3KV

    uF: .004
    Volts: 3 KV
    Max Plate Volts: 1.8 KV
    Dia. x Length (in.): 0.8 x 0.1

5 Item(s)
