Air Dielectric (Piston)



Air Dielectric/Piston Trimmer-Variable Capacitors
JOHANSON & Various Manufacturers

Standard
Part NumberType / PhotoMfg.*Q @ 100MHzCap. RangeL x D
2950 - JOH 2000 0.8-10pF .480 x .260
2954 - JOH 2000 0.8-10pF .680 x .280
3901 - JOH 1500 1-14pF .500 x .280
4640 - JOH 5000 0.4-6.0pF .550 x .220
4702 - JOH 5000 0.35-3.5pF .480 x .140
4890 - JOH - - .750 x .280
4894 - JOH - - .470 x .280
5185 - JOH - - .550 x .210
5187 - JOH - - .470 x .210
5201 250vdc JOH 5000 0.8-10pF .500 x .260
5202 250vdc JOH 5000 0.8-10pF .600 x .280
5701 250vdc JOH 10000 0.6-6pF .475 x .235
5880 250vdc JOH - 0.35-3.5pF .590 x .150
6703 250vdc JOH   1-14pF .470 x .270
8032 - JOH - - .570 x .280
8052 250vdc JOH 5000 1.0-10.0pF .570 x .280
8053 250vdc (Clean Pullouts) JOH 3000 1.5-14pF .600 x .285
V3117 250vdc VOL 3000 1.5-14pF .645 x .295
8064   JOH 5000 1.0-15pF .500 x .290
MVM010 PC31J100 / JFDMVM010 MUR 5000 0.8-10.0pF .610 x .280
MVM010W PC26J100 / JFDMVM010W MUR 5000 0.8-10.0pF .640 x .280
VAM010W JFDVA0101W MUR 5000 0.8-10.0pF .500 x .280
AP10 PC18L100 VOL 5000 0.8-10.0pF .500 x .280
AT10 PC47L100 VOL 5,000 0.8-10.0pF .620 x .290
PC4IJ4R5 750vdc  NSN: 5910-00-881-0344 JFD   0.8-4.5pF .365 x .310
PC51J100 750vdc  NSN: 5910-00-992-3306 JFD   0.8-11pF .580 x .310

List  Grid

per page
Set Descending Direction

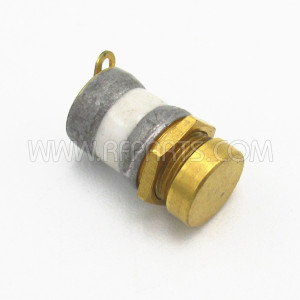

  1. 2950 Johanson Piston Trimmer Capacitor 0.8-10pF (NOS)

    2950 Johanson Piston Trimmer Capacitor 0.8-10pF (NOS)

    $6.91

    • Range: 0.8-10pF
    • Size: .48 long x .26 dia

    New Old Stock * No longer available for export
    MFR: Johanson
    SKU: 2950

    Made in the USA

  2. 8032 Johanson trimmer capacitor

    8032 Johanson trimmer capacitor

    $8.95

    8032 Johanson trimmer capacitor, No longer available for Export, (NOS)

    Made in the USA

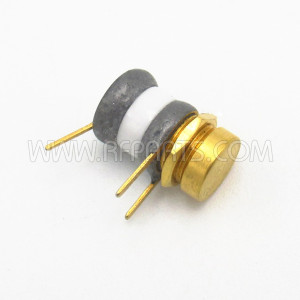

  3. VAM010W Murata Piston trimmer capacitor .8-10 pf (NOS)

    VAM010W Murata Piston trimmer capacitor .8-10 pf (NOS)

    $14.91

    New Old Stock * No longer available for export
    MFR: Murata
    SKU: VAM010W

    Made in the USA

  4. MVM010W Murata Piston Trimmer Capacitor 0.8-10pf (NOS)

    MVM010W Murata Piston Trimmer Capacitor 0.8-10pf (NOS)

    $14.91

    Value: 0.8-10pf
    Q@ 100 MHz:  5.0
    Size: 0.64 x 0.28
    New Old Stock * No longer available for export
    MFR: Murata
    SKU: MVM010W

    Made in the USA

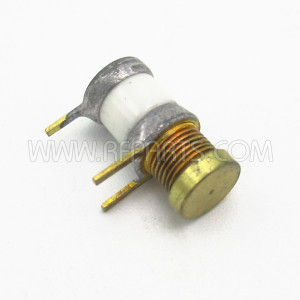

  5. 5701 / PC26J060 Johanson Piston Trimmer Capacitor 0.6-6pf (NOS)

    5701 / PC26J060 Johanson Piston Trimmer Capacitor 0.6-6pf (NOS)

    $8.91

    • MFR Part #: 5701 / PC26J060
    • Range: 0.6-6 > 8 turns
    • Voltage: 250vdc
    • Min Q @ 100 MHz: 10000
    • Size: 0.475 long x 0.235 Diameter

    New Old Stock * No longer available for export
    MFR: Johanson
    SKU: 5701

    Made in the USA

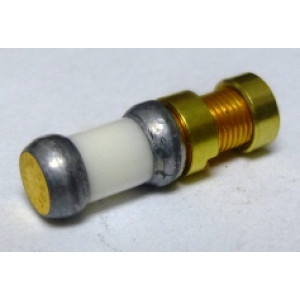

  6. 5880 Johanson Air Trimmer Capacitor 0.35-3.5pf (NOS)

    5880 Johanson Air Trimmer Capacitor 0.35-3.5pf (NOS)

    • Voltage: 250 DC
    • Range: 0.35-3.5pf
    • Size: .59 x .15

    New Old Stock * No longer available for export
    MFR: Johanson
    SKU: 5880

    Made in the USA

  7. 5187 Johanson trimmer capacitor

    5187 Johanson trimmer capacitor

    $19.91

    New Old Stock * No longer available for export
    MFR: Johanson
    SKU: 5187

    Made in the USA

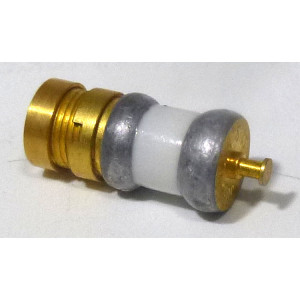

  8. 5185 Johanson Trimmer Capacitor

    5185 Johanson Trimmer Capacitor

    $5.91

    New Old Stock * No longer availabel for export
    MFR: Johanson
    SKU: 5185

    Made in the USA

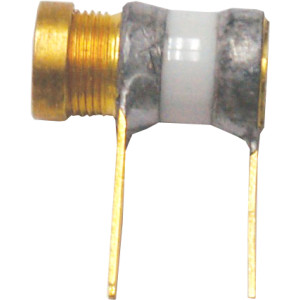

  9. 3901 Johanson Capacitor .35-3.5pf  (NOS)

    3901 Johanson Capacitor .35-3.5pf (NOS)

    $12.91

    • Rating: .35-3.5pf
    • Size .5 x .28

    New Old Stock * No longer available for export
    MFR: Johanson
    SKU: 3901

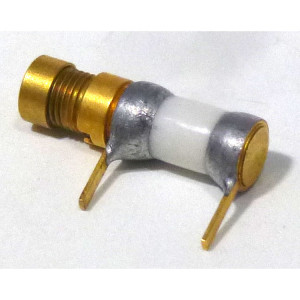

  10. 4702 Johanson Trimmer Capacitor 0.35-3.5 pf (NOS)

    4702 Johanson Trimmer Capacitor 0.35-3.5 pf (NOS)

    $12.91

    • Range: 0.35-3.5 pf
    • Size: .48 x .14

    New Old Stock, No longer available for export
    MFR: Johanson
    SKU: 4702

    Made in the USA

Items 1 to 10 of 20 total
