Air Variable - Johnson Panel Mount

JOHNSON AIR VARIABLE CAPACITORS

Limited Quantity Available. NOS Original Johnson Capacitors

PART #

CAPACITANCE PF (MIN-MAX)

PLATES DIMENSIONS HxWxL SHAFT
148-504-1 3.2-35 14   1.4" x 0.885" x 1.594"  0.22 hex
160-102-1 0.5-5   5 0.75" x 0.625" x 0.60" 3/16"
160-104-1 1.8-8.7  9 0.75" x 0.625" x 0.812" 3/16"
160-107-1 1-15  15  0.63" x 1.6" x 0.86"  3/16"
160-110-1 2.7-19.6 21  0.75" x 0.625" x 1.172"  3/16"
160-130-1 3.1-31.9 28   1.77 " x 0.63" x 0.76"  3/16"
160-203-1 1.5-3.1  5 0.75" x 0.625" x 0.703"  3/16"
160-208-1 2.2-8  16 0.75" x 0.625" x 1"  3/16"
160-305-1 1.8-8.7  9 0.75" x 0.625" x 0.812"  3/16"

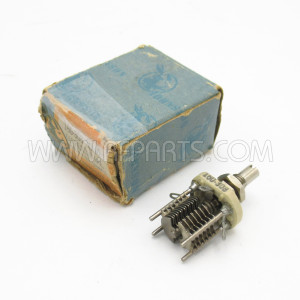

160-308-1 2.3-14.2   15 0.75" x 0.625" x 1"  3/16"
160-311-1 2.7-19.6  21  0.75" x 0.625" x 1.172"  3/16"
167-1-1 2.2-10 3 1.375" x 1.375" x 0.75" 1/4"
167-2-1 2.9-25 7 1.375" x 1.375" x 0.953" 1/4"
167-3-1 4-50 13 1.375" x 1.375" x 1.25" 1/4"
167-4-1 5.2-75 19 1.375" x 1.375" x 1.562" 1/4"
167-21-1 2.3-10 5 1.375" x 1.375" x 0.859" 1/4"
167-22-1 3.7-25 12 1.375" x 1.375" x 1.25" 1/4"
167-23-1 5.9-50 23 1.375" x 1.375" x 1.75" 1/4"
167-31-1 2.8-11 3 1.375" x 1.375" x 0.75" 1/4"
167-52-1 5.4-51 (DUAL) 13 1.375" x 1.375" x 2.234" 1/4"

List  Grid

per page
Set Descending Direction

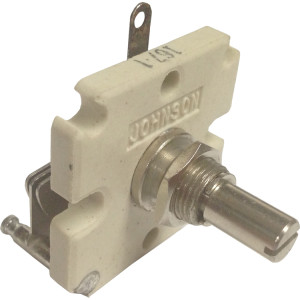

  1. 167-1 E.F. Johnson Variable Capacitor 2.2-10pf 2Kv (NOS)

    167-1 E.F. Johnson Variable Capacitor 2.2-10pf 2Kv (NOS)

    $21.91

    Sections: 1
    Capacitance: 2.2-10pf
    Peak Volts: 2Kv
    Total Plates: 3
    Plate Spacing: 0.030"
    L x W x H: 3/4" x 1 3/8" x 1 3/8"
    Shaft diameter: 1/4" Round x 3/8"L
    167-0001-001
    NSN 5910-814-4250
    New Old Stock, Not for Export
    MFR: E. F. Johnson
    SKU: 167-1-1

    Made in the USA

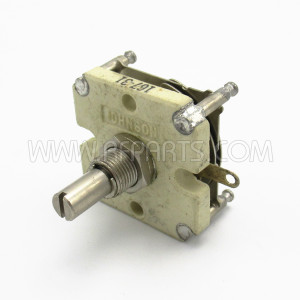

  2. 167-31 E.F. Johnson Variable Capacitor 3-10pf 2Kv (Pull)

    167-31 E.F. Johnson Variable Capacitor 3-10pf 2Kv (Pull)

    $21.91

    Sections: Differential
    Capacitance: 3-10pf
    Total Plates: 3
    Peak Volts: 2Kv
    3/4" long (body) x 1 3/8" wide x 1 3/8" high
    Shaft diameter: 1/4" Round x 3/8" long
    Used Very Clean * No longe available for export
    MFR: E.F. Johnson
    SKU: 167-31-P

    Made in the USA

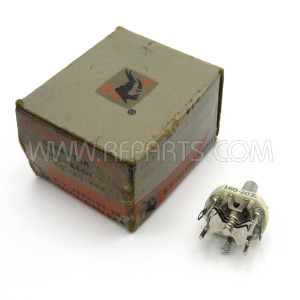

  3. 160-203 E. F. Johnson Variable Capacitor 1.5-3.1 pf (NOS)

    160-203 E. F. Johnson Variable Capacitor 1.5-3.1 pf (NOS)

    $19.91

    Sections: Butterfly
    Min/Max Cap Pf: 1.5-3.1
    Total Plates: 5
    L x W x H: 45/64" x 1 3/4" x 1 5/8"
    Shaft diameter: 0.188" Round
    New Old Stock * No longer available for export
    MFR: E.F. Johnson
    SKU: 160-203

    Made in the USA

  4. 160-102-1  Variable Capacitor, Panel Mount, 1.5-5 pf, E.F. Johnson (5M11)

    160-102-1 Variable Capacitor, Panel Mount, 1.5-5 pf, E.F. Johnson (5M11)

    $14.95

    160-102-1 Variable Capacitor, Panel Mount, 1.5-5 pf, MFR: E. F. Johnson

    No longer available for Export

    Made in the USA

  5. 193-8-52 E.F. Johnson Air Variable Capacitor 2.5-27pf (NOS)

    193-8-52 E.F. Johnson Air Variable Capacitor 2.5-27pf (NOS)

    $11.91

    Panel mount
    Sections: Single
    Min/Max Capacitance: 2.5-27pf
    Peak Volts: 1Kv
    Total Plates: 16
    Spacing: 0.02mm
    L x W x H: 3/4" x 1/2" x 9/16"
    Shaft diameter: 3/16" Round
    New Old Stock * No longer available for export
    MFR: E. F. Johnson
    SKU: 193-8-52

    Made in the USA

  6. 154-11-1 E.F. Johnson Air Variable Capacitor 25-340pf 3Kv (Pull)

    154-11-1 E.F. Johnson Air Variable Capacitor 25-340pf 3Kv (Pull)

    $156.91

    Peak Volts: 3kv
    PF: 25 to 340
    Gap: 0.075"
    Plates: 51
    Size: 7-5/16" long x 2-9/16" wide x 2-5/8" high
    Used * No longer available for export
    MFR: E. F. Johnson
    SKU: 154-11-1-P

    Made in the USA

  7. 149-10-4 EF Johnson Variable Capacitor 12-250pf 1.2kv (Pull)

    149-10-4 EF Johnson Variable Capacitor 12-250pf 1.2kv (Pull)

    $49.91

    Shaft: ¼” Round
    Capacitance: 12-250pf
    Peak Voltage: 1.2kv
    Gap: 0.025”
    Plates: 34
    Size: 2-3/8” Long x 1-5/8” Wide x 1-1/4” High
    Used * No longer available for export
    MFR: E.F. Johnson
    SKU: 149-10-4-P

    Made in the USA

  8. 650E15SP Johnson Air Variable Capacitor (Pull)

    650E15SP Johnson Air Variable Capacitor (Pull)

    $139.91

    Capactance: 15-650pf
    Peak Voltage: 1.8Kv
    Plates: 41
    Gap: 0.031
    Used * No longer available for export
    MFR: E.F. Johnson
    SKU: 650E15SP-P

    Made in the USA

  9. 155-4 EF Johnson Variable Capacitor (100F20) 10-106pf 3kv (Pull)

    155-4 EF Johnson Variable Capacitor (100F20) 10-106pf 3kv (Pull)

    $79.91

    Shaft: ¼” Round
    Capacitance: 10-106pf
    Peak Voltage:3kvdc
    Gap: 0.045”
    Plates:17
    Size: 2-5/8” Long x 2-1/8” Wide x 2” High
    Clean Used * No longer available for export
    MFR: E.F. Johnson
    SKU: 155-4-P

    Made in the USA

  10. 167-1 E.F. Johnson Variable Capacitor 2.2-10pf 2Kv (Pull)

    167-1 E.F. Johnson Variable Capacitor 2.2-10pf 2Kv (Pull)

    $18.91

    Sections: 1
    Capacitance: 2.2-10pf
    Peak Volts: 2Kv
    Total Plates: 3
    Plate Spacing: 0.030"
    L x W x H: 3/4" x 1 3/8" x 1 3/8"
    Shaft diameter: 1/4" Round x 3/8"L
    167-0001-001
    NSN 5910-814-4250
    Used * Not for Export
    MFR: E. F. Johnson
    SKU: 167-1-P

    Made in the USA

Items 1 to 10 of 31 total
