insulators - Glazed Ceramic

SQUARE INSULATORS
PART # LENGTH IN. WIDTH IN WEIGHT LBS THREAD

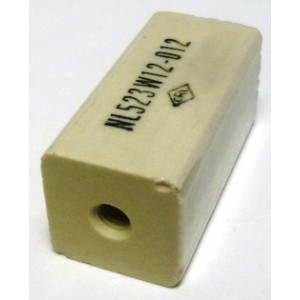

NL523W12-012 1.5 0.75 0.05 10/32
NS5W1224 3.0 0.75 0.15 10/32
NL523W13-020 2.5 1.0 0.20 1/4-20



ROUND INSULATORS
PART#          LENGTH IN.

DIAMETER IN.

WEIGHT LBS THREAD
NL523W01-012 1.5 0.375 0.01 6/32
NL523W01-450 4.5 0.375 0.05 6/32
NL422B01-004 0.50 0.375 0.01 6/32
NL422B01-006 0.75 0.375 0.01 6/32
NL422B01-008 1.0 0.375 0.01 6/32
NL523W02-050 0.50 0.50 0.01 6/32
NL523W02-008 1.0 0.50 0.01 6/32
NL523W02-010 1.25 0.50 0.01 8/32
NL523W02-012 1.5 0.50 0.01 8/32
NS5W0216 2.0 0.50 0.05 8/32
NS5W0216-T 2.0 0.50 0.05 8/32 STUD ATTACHED
NL523W02-020 2.5 0.50 0.05 6/32
NL523W02-4035 4.0 0.50 0.05 8/32
NL523W03-0515 0.50 0.75 0.01 10/32
NL523W03-008 1.0 0.75 0.05 10/32
NL422B03-008 1.0 0.75 0.05 10/32
NL523W03-012 1.5 0.75 0.05 10/32
NL523W03-020 2.5 0.75 0.10

10/32

NL422B03-016 2.0 0.75 0.10

10/32

NL523W03-250 2.5 0.75 0.15

3 HOLE MOUNT &

BANANA PLUG W/SOLDER LUG

NL422B03-024 3.0 0.75 0.15 10/32
NL523W03-032 4.0 0.75 0.15 10/32
NL523W04-020 2.50 1.0 0.20 1/4-20
NL523W04-040 5 1.0 0.35 1/4-20
CER5.5 (Non-Glazed) 5.5 1.0 0.45 1/4-20

List  Grid

per page
Set Descending Direction
  1. 7716 Standoff Insulator, Glazed Ceramic, 1" Long x 1/2" Diameter with 6-32 Threaded Mounting Holes (NL523W02-008)

    7716 Standoff Insulator, Glazed Ceramic, 1" Long x 1/2" Diameter with 6-32 Threaded Mounting Holes (NL523W02-008)

    7716 Commericial version Standoff Insulator, Glazed Ceramic, 1" Long x 1/2" Diameter with 6-32 Threaded Mounting Holes  (Similar to NL523W02-008 but with 6-32 Thread mounting holes)

  2. CER5.5 Standoff Insulator, Ceramic, 5.5" Long x 1" Diameter with Threaded Mounting Holes,

    CER5.5 Standoff Insulator, Ceramic, 5.5" Long x 1" Diameter with Threaded Mounting Holes,

    $34.95

    CER5.5 Standoff Insulator, Ceramic (Non-Glazed), 5.5" Long x 1" Diameter with Threaded Mounting Holes (NL523W04-044)



  3. NL422B01-006 Standoff Insulator, Glazed Ceramic, 3/4" Long x 3/8" Diameter with Threaded Mounting Holes, CNP

    NL422B01-006 Standoff Insulator, Glazed Ceramic, 3/4" Long x 3/8" Diameter with Threaded Mounting Holes, CNP

    $2.95

    NL422B01-006 Standoff Insulator, Glazed Ceramic, 3/4" Long x 3/8" Diameter with Threaded Mounting Holes, CNP

  4. NL422B01-008 Standoff Insulator, Glazed Ceramic, 1" Long x 3/8" Diameter with Threaded Mounting Holes, CNP

    NL422B01-008 Standoff Insulator, Glazed Ceramic, 1" Long x 3/8" Diameter with Threaded Mounting Holes, CNP

    $3.25

    NL422B01-008 Standoff Insulator, Glazed Ceramic, 1" Long x 3/8" Diameter with Threaded Mounting Holes, CNP

  5. NL422B03-008 Standoff Insulator, Glazed Ceramic, 1" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

    NL422B03-008 Standoff Insulator, Glazed Ceramic, 1" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

    $4.85

    NL422B03-008 Standoff Insulator, Glazed Ceramic, 1" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

  6. NL422B03-016 Standoff Insulator, Glazed Ceramic, 2" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

    NL422B03-016 Standoff Insulator, Glazed Ceramic, 2" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

    $6.95

    NL422B03-016 Standoff Insulator, Glazed Ceramic, 2" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

  7. NL422B03-024 Standoff Insulator, Glazed Ceramic, 3" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

    NL422B03-024 Standoff Insulator, Glazed Ceramic, 3" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

    $8.95

    NL422B03-024 Standoff Insulator, Glazed Ceramic, 3" Long x 3/4" Diameter with Threaded Mounting Holes, CNP

  8. NL523W01-012 Standoff Insulator, Glazed Ceramic, 1 1/2" Long x 3/8" Diameter with Threaded Mounting Holes

    NL523W01-012 Standoff Insulator, Glazed Ceramic, 1 1/2" Long x 3/8" Diameter with Threaded Mounting Holes

    $2.00

    NL523W01-012 Standoff Insulator, Glazed Ceramic, 1 1/2" Long x 3/8" Diameter with Threaded Mounting Holes, 6-32

  9. NL523W01-450 Standoff Insulator, Glazed Ceramic, 4 1/2" Long x 3/8" Diameter with Threaded Mounting Holes

    NL523W01-450 Standoff Insulator, Glazed Ceramic, 4 1/2" Long x 3/8" Diameter with Threaded Mounting Holes

    $6.95

    NL523W01-450 Standoff Insulator, Glazed Ceramic, 4 1/2" Long x 3/8" Diameter with Threaded Mounting Holes, 6-32

  10. NL523W02-010 Standoff Insulator, Glazed Ceramic, 1 1/4" Long x 1/2" Diameter with Threaded Mounting Holes

    NL523W02-010 Standoff Insulator, Glazed Ceramic, 1 1/4" Long x 1/2" Diameter with Threaded Mounting Holes

    $3.50

    NL523W02-010 Standoff Insulator, Glazed Ceramic, 1 1/4" Long x 1/2" Diameter with Threaded Mounting Holes, 8-32

Items 1 to 10 of 27 total
