Hammond Filament & Low Voltage

Hammond Filament and Low Voltage Transformers



Part #Secondary(RMS)Dim. Ref.
166U5 5.0 VCT 15 A C14H
166U7 7.5VCT 15 A C16H

Filament Transformer for YC156 and YC179
Use two 7.5 Volt transformers (part number 166U7), with secondaries connected in Series, to give the required 15V @ 15A with a centertap. Primaries may be connected for 115VAC or 230VAC operation.

166R12 12.6VCT 8 A C16H
166L14 14.0 VCT 2 A C10H
166Q14 14.0 VCT 6 A C15H
165V10 10.0 VCT 20 A H10
165V12 12.6 VCT 20 A 115VAC Primary
165X5 5.0 VCT 30 A H9
167U5 5.0VCT 15A X6
167X5 5.0VCT 30A X10
167U6 6.3VCT 16A X8
167V7 7.5VCT 21A X10
167S12 12.6VCT 10A X9
167V12 12.5VCT 20A X13
Part #VASecondary(RMS)Dim. Ref.
185E10 80 10VCT@8.0A
or 5V@16A
B
185G10 175 10VCT@17.5A
or 5V@35A
B
185E12 80 12.6VCT@6.3A
or 6.3V@12.6A
B
185F10 130 10VCT@13A
or 5.0V@26A
B
185G12 175 12.6VCT@14A
or 6.3V@28A
B
185G16 175 16VCT@11A
or 8V@22A
B
265X5 220 5VCT@30A B

List  Grid

per page
Set Descending Direction

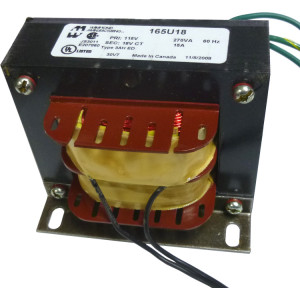

  1. 165U18 Hammond Power Transformer 115V 60Hz 15A

    165U18 Hammond Power Transformer 115V 60Hz 15A

    Call for Price
    1-800-RFPARTS (1-800-737-2787)

    • Primary: 115V 60Hz
    • Secondary (Full Load): 18V
    • Power - Max: 270VA

    MFR: Hammond
    SKU:165U18

    See Data Sheet

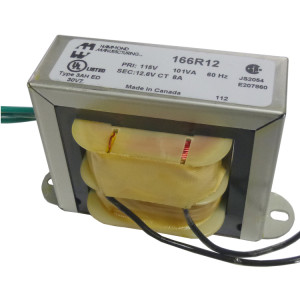

  2. 166R12 Hammond Transformer 115V 50hz/60hz 8A

    166R12 Hammond Transformer 115V 50hz/60hz 8A

    $57.91

    • Primary: 115V 50/60Hz
    • Secondary (Full Load): 12.6V
    • Power - Max: 100.8VA

    MFR: Hammond
    SKU:166R12

    See Data Sheet

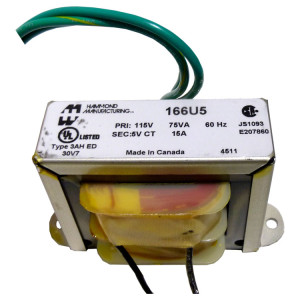

  3. 166U5 Hammond Power Transformer 115V 50Hz/60Hz 15A

    166U5 Hammond Power Transformer 115V 50Hz/60Hz 15A

    $48.91

    • Primary: 115V 50/60Hz
    • Secondary (Full Load): 5V
    • Power - Max: 75VA

    MFR: Hammond
    SKU: 166U5

    See Data Sheet

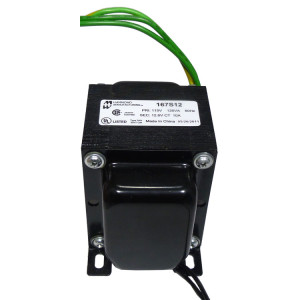

  4. 167S12 Hammond Power Transformer 115V 50hz/60hz 10A

    167S12 Hammond Power Transformer 115V 50hz/60hz 10A

    Call for Price
    1-800-RFPARTS (1-800-737-2787)

    • Primary: 115V 50/60Hz
    • Secondary (Full Load): 12.6V
    • Power - Max: 126VA

    MFR: Hammond
    SKU: 167S12

    See Data Sheet

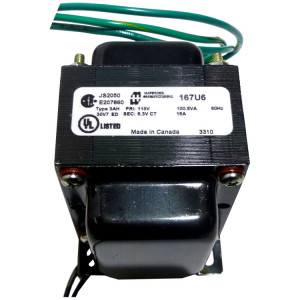

  5. 167U6 Hammond Power Transformer 115V 50hz/60hz 16A

    167U6 Hammond Power Transformer 115V 50hz/60hz 16A

    $59.91

    • Primary: 115V 50/60Hz
    • Secondary (Full Load): 6.3V
    • Power - Max: 100.8VA

    MFR: Hammond
    SKU:167U6

    See Data Sheet

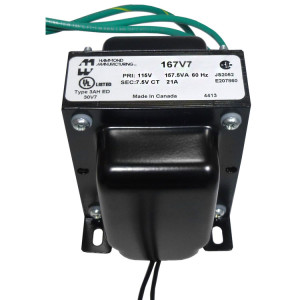

  6. 167V7 Hammond Power Transformer 115V  50Hz/60Hz 21A

    167V7 Hammond Power Transformer 115V 50Hz/60Hz 21A

    $75.91

    • Primary: 115V 50/60Hz
    • Secondary: Secondary (Full Load): 7.5V
    • Power - Max: 157.5VA

    MFR: Hammond
    SKU: 167V7

    See Data Sheet

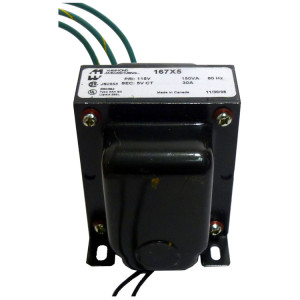

  7. 167X5 Hammond Power Transformer 115V 50hz/60hz 30A

    167X5 Hammond Power Transformer 115V 50hz/60hz 30A

    $72.91

    • Primary: 115V 50/60Hz
    • Secondary (Full Load): 5V
    • Power - Max: 150VA

    MFR: Hammond
    SKU: 167X5

    See Data Sheet

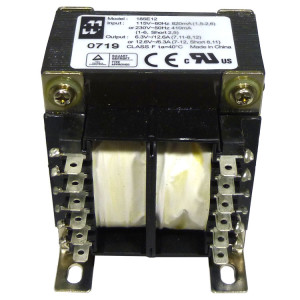

  8. 185E12 Hammond Power Transformer 115V/230V 50Hz/60Hz 12.6A/6.3A

    185E12 Hammond Power Transformer 115V/230V 50Hz/60Hz 12.6A/6.3A

    $35.91

    • Primary: 115V, 230V
    • Secondary (Full Load): Parallel 6.3V, Series 12.6V
    • Power - Max: 80VA

    MFR: Hammond
    SKU:185E12

    See Data Sheet

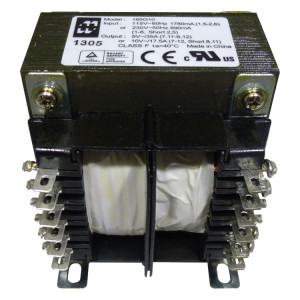

  9. 185G10 Hammond Power Transformer 115v / 230v 50Hz / 60Hz 17.5A / 35A

    185G10 Hammond Power Transformer 115v / 230v 50Hz / 60Hz 17.5A / 35A

    $48.91

    • Primary: 115V/230V 50/60Hz
    • Secondary: Parallel 5V, Series 10V
    • Power - Max: 175VA

    MFR: Hammond
    SKU: 185G10

    See Data Sheet

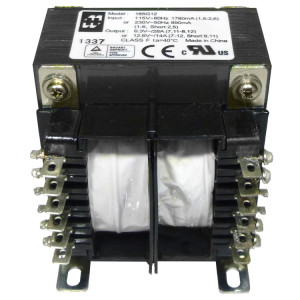

  10. 185G12 Hammond Power Transformer 115V / 230V 50/60Hz 14A / 28A

    185G12 Hammond Power Transformer 115V / 230V 50/60Hz 14A / 28A

    Call for Price
    1-800-RFPARTS (1-800-737-2787)

    • Primary: 115V, 230V 50/60Hz
    • Secondary: Parallel 6.3V, Series 12.6V
    • Power - Max: 175VA

    MFR: Hammond
    SKU: 185G12

    See Data Sheet

Items 1 to 10 of 24 total

Page:
  1. 1
  2. 2
  3. 3
