Hammond Filament & Low Voltage

Hammond Filament and Low Voltage Transformers



Part #Secondary(RMS)Dim. Ref.
166U5 5.0 VCT 15 A C14H
166U7 7.5VCT 15 A C16H

Filament Transformer for YC156 and YC179
Use two 7.5 Volt transformers (part number 166U7), with secondaries connected in Series, to give the required 15V @ 15A with a centertap. Primaries may be connected for 115VAC or 230VAC operation.

166R12 12.6VCT 8 A C16H

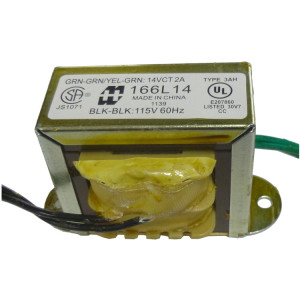

166L14 14.0 VCT 2 A C10H

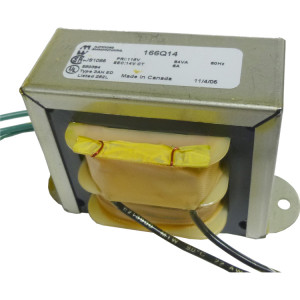

166Q14 14.0 VCT 6 A C15H
165V10 10.0 VCT 20 A H10
165V12 12.6 VCT 20 A 115VAC Primary
165X5 5.0 VCT 30 A H9

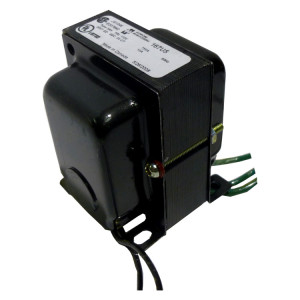

167U5 5.0VCT 15A X6
167X5 5.0VCT 30A X10
167U6 6.3VCT 16A X8
167V7 7.5VCT 21A X10
167S12 12.6VCT 10A X9

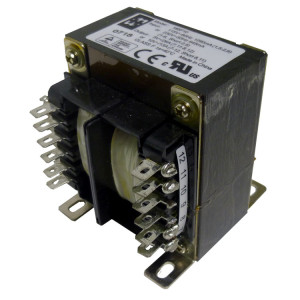

167V12 12.5VCT 20A X13
Part #VASecondary(RMS)Dim. Ref.

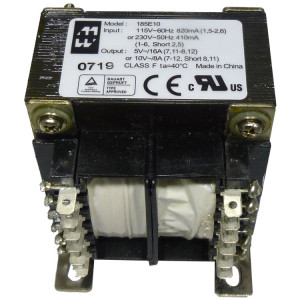

185E10 80 10VCT@8.0A
or 5V@16A
B
185G10 175 10VCT@17.5A
or 5V@35A
B
185E12 80 12.6VCT@6.3A
or 6.3V@12.6A
B

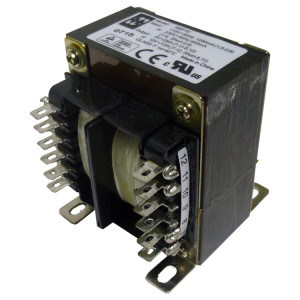

185F10 130 10VCT@13A
or 5.0V@26A
B
185G12 175 12.6VCT@14A
or 6.3V@28A
B
185G16 175 16VCT@11A
or 8V@22A
B
265X5 220 5VCT@30A B

List  Grid

per page
Set Descending Direction
  1. 166R12 Transformer 12.6vct at 8a, Hammond

    166R12 Transformer 12.6vct at 8a, Hammond

    $46.95

    166R12 - Transformer 12.6vct at 8a, MFR: Hammond MFG



  2. 167U6 Transformer 6.3vct at 16a, Hammond

    167U6 Transformer 6.3vct at 16a, Hammond

    167U6 Transformer 6.3vct at 16a

    Mg: Hammond

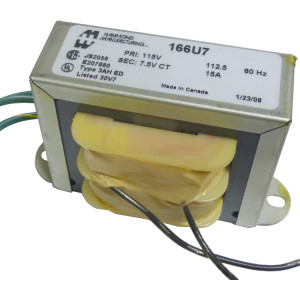

  3. 166U7 Transformer, 7.5vct @ 15a, Hammond

    166U7 Transformer, 7.5vct @ 15a, Hammond

    $54.95

    166U7 Hammond Transformer, 7.5vct @ 15a

  4. 167S12 Transformer 12.6vct at 10a, Hammond

    167S12 Transformer 12.6vct at 10a, Hammond

    $58.95

    167S12 Transformer 12.6vct at 10a

    Mg: Hammond

  5. 167X5 Transformer, Hammond, 5v CT, 30a, Hammond

    167X5 Transformer, Hammond, 5v CT, 30a, Hammond

    $62.95

    167X5 Transformer, Hammond, 5v CT, 30a Dim:a=3.13 b=3.50 c=3.81 d=2 E=2.19 case :x10, pri:115vac MFR: Hammond Manufacturing

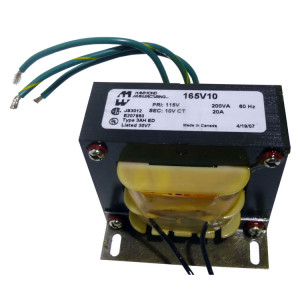

  6. 165V10 Transformer 10.0 vct 20 amps

    165V10 Transformer 10.0 vct 20 amps

    $64.95

    165V10 Transformer 10.0 vct 20 amps

  7. 165U18 - 18VCT @ 15 Amps Transformer, Hammond

    165U18 - 18VCT @ 15 Amps Transformer, Hammond

    $67.50

    165U18 - 18VCT @ 15 Amps Transformer, MFR: Hammond

  8. 165V12 Transformer, 12vct 20a, Hammond

    165V12 Transformer, 12vct 20a, Hammond

    $68.00

    165V12 Transformer, 12vct 20a

    Mg: Hammond

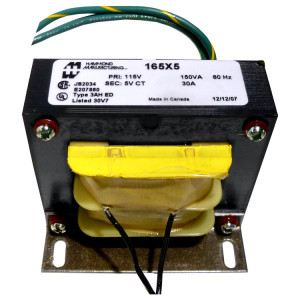

  9. 165X5  5.0 vct 30 amps primary 115v, Hammond

    165X5 5.0 vct 30 amps primary 115v, Hammond

    $69.95

    165X5 5.0 vct 30 amps primary 115v

  10. 265X5  5.0 vct 30 amps primary 220v

    265X5 5.0 vct 30 amps primary 220v

    $69.95

    265X5  Transformer, 5.0 vct 30 amps primary 220v, MFR: Hammond

Items 11 to 20 of 22 total
