Variable Tuning & Load

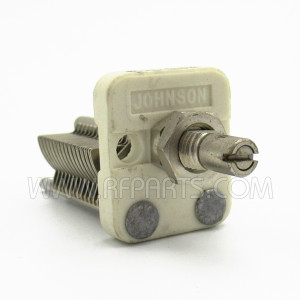

Variable Tuning & Load Capacitors

The M-73 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.
Our Part NumberSec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak
Volts
Overall
W x H x L

73-112-15 1 14-70 15 .118 4500V 2.6" x 2.6" x 3.3"
73-175-17 1 10-110 17 .060 2800V 2.6" x 2.6" x 4"
73-175-23 1 14-155 21 .075 3200V 2.6" x 2.6" x 4.8"
26-96** 1 20-160 23 .075 3000V 2.6" x 2.6" x 4.3"
73-180-35
1 20-215 35 .080 3600V 2.6" x 2.6" x 6.2"
73-145-25 1 20-240 27 .045 2000V 2.6" x 2.6" x 3.6"
73-1100-49 1 20-240 49 .090 4000V 2.6" x 2.6" x 8.5"
73-1100-54 1 35-280 54 .100 4400V 2.6" x 2.6" x 9.3"
73-132-53 1 25-840 53 .030 1200V 2.6" x 2.6" x 5.7"
20-160 2 10-70 / 10-90 34 .065 2500V 3" x 2.2" x 4.6"
47-887 2 22-430 / 25-457 40 .030 1200V 4.1" x 3.5" x 3.6"

**Shaft length and mounting cut to fit SB200.



Our Part NumberSec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
48APL30
( sub for 48APL41S )
1 5-30 15 .048 2000V 1.5" x 1.4" x 1.5"
074-047
1 5-100 26 .032 1200V 1.5" x 1.4" x 2"
(Shaft Length 5.75")
19100 1 7-100 13 .032 1200V 1.5" x 1.7" x 2"
20APL300DE** 1 12-300 49 .020 1200V 1.4" x 2.5" x 1.3"
HF15 1 3-15 5 .020 750V 1.3" x 1.3" x .8 "
F1-397 1 7-20 4 .030 500V 1.7" x 1.7" x 1.8 "
(Shaft Length 4.5")
**20APL300S is the same capacitor as "DE" version, but with ceramic end plate for added strength.




Part NumberShaft
Dia x Lth
inches
Sec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
CT10042G 1/4 x 3/8 1 5-45 12 .016 250V 0.9" x 1.2" x 1.2"
7254172 3/8 x 9/16 1 2-30 12 .020 350v 0.94" x 1.21" x 1.15"
7254173 1/4 x 9/16 1 1-28 12 .020  350v 0.94" x 1.21" x 1.35"
7254174 1/4x3/4 1 3-60 17 .020 350V 0.8" x 1.2" x 4.3"
48B084E 1/4 x 3/4 1 7-140 39 .016 250V 1" x 1.2" x 2"
29516 3/16 x 7/16 1 2-12 5 .025 500V 0.6" x 0.8" x 0.6"
922-0014 slot 1 3-36 12 .015 250 .08" x 1.1" x 1.1"
074-054 1/4x3/8 1 5-26 18 .045 1500V 1"x1.2"x1.8"
08-65 1/4x3/8  1 8-65  21  .012 200v  1.6" x 1.2" x 1.2"
5M11 3/16 x 1/4 1 0.5-5 5 .016 250V 0.5" x 0.7" x 0.8"
15M11 3/16 x 1/4 1 1-15 15 .016 250V
VC55-250 3/16 x 1/4 1 1-15 14 .016 250V 0.8" x 1" x 1"
160-110-1 3/16 x 1/4 1 3-20 22 .016 250V 0.6" x 0.8" x 1.3"
160-107-1 3/16 x 1/4 1 2-13 15 .16 250V 0.6" x 0.8" x 1"
158-4 slot 1 3-70 20 .015 250 .09" x 1.2" x 1.3"
167-1 - 1 2-10 3 .032 1200V 1.4" x 1.4" x 0.9"
ASP27 1/4 x 3/8 1 7-27 20 - - .95" x 1.25" x 1.96"
563-7625-03
Mfg. Cambian
0.41 x 0.22 1 4-35 14 - - .785" x .95" x 1.0"
9411-72 SLOT 1 10-140 47 .016 250V 1" x 1.2" x 2.5"
148-81-11 .125 x .3 1 6-30 34 - - 13/16" x 7/8" x 2-3/8"
4138 1/4 x 1.1" 25-370  21 x (3)   -  -  3.2" x 1.85" x 3.75"

List  Grid

per page
Set Descending Direction
  1. 074-047 Variable Capacitor, 5-100 pf

    074-047 Variable Capacitor, 5-100 pf

    $19.90

    074-047 Variable Capacitor, 5-100 pf Min/Max Cap Pf.:;5-100<br /Peak Volts:1200V

  2. 074-054 Variable Capacitor, 3-25 pf

    074-054 Variable Capacitor, 3-25 pf

    $13.95

    074-054 Variable Capacitor, 3-25 pf Volts;1500V 11.2"1.8" Condition:Good. Pulled out of working equipment

  3. 074-062 Capacitor, variable 10-375pf, ASP style

    074-062 Capacitor, variable 10-375pf, ASP style

    $16.95

    074-062  Variable Capacitor, Dual Section 10-375pf, 1/4" shaft, ASP Style

  4. 08-65 Variable Tuning Capacitor, Long Taper, Silver Plated, 8-65 pf

    08-65 Variable Tuning Capacitor, Long Taper, Silver Plated, 8-65 pf

    $14.95

    08-65 Variable Tuning Capacitor, Long Taper, Silver Plated, 8-65 pf

  5. 148-504-1 Variable Capacitor, Panel Mount, 3.2-35 pf, E. F. Johnson

    148-504-1 Variable Capacitor, Panel Mount, 3.2-35 pf, E. F. Johnson

    $19.95

    148-504-1 Variable Capacitor, Panel Mount, 3.2-35 pf, MFR: E.F. Johnson

  6. 148-81-11 Variable Capacitor, 6-30 pf

    148-81-11 Variable Capacitor, 6-30 pf

    $13.95

    148-81-11 Variable Capacitor, 6-30 pf Min/Max Cap Pf.:;6-30
  7. 160-107-1 Variable Capacitor, 1-15 pf, E.F. Johnson (15M11)

    160-107-1 Variable Capacitor, 1-15 pf, E.F. Johnson (15M11)

    $13.95

    160-107-1 Variable Capacitor, 1-15 pf  (15M11), MFR: E. F. Johnson

  8. 160-203-1 Variable Capacitor, Panel Mount, 1.5-3.1 pf, E. F. Johnson

    160-203-1 Variable Capacitor, Panel Mount, 1.5-3.1 pf, E. F. Johnson

    $14.95

    160-203-1 Variable Capacitor, Panel Mount, 1.5-3.1 pf, MFR: E. F. Johnson

  9. 160-308-1 Variable Capacitor, Panel Mount, 2.3-14.2 pf, E.F. Johnson

    160-308-1 Variable Capacitor, Panel Mount, 2.3-14.2 pf, E.F. Johnson

    $18.95

    160-308-1 Variable Capacitor, Panel Mount, 2.3-14.2 pf, MFR: E.F. Johnson

  10. 160-311-1 Variable Capacitor, Panel Mount, 2.7-19.6 pf, E.F. Johnson

    160-311-1 Variable Capacitor, Panel Mount, 2.7-19.6 pf, E.F. Johnson

    $18.95

    160-311-1 Variable Capacitor, Panel Mount, 2.7-19.6 pf, MFR: E.F. Johnson

Items 1 to 10 of 45 total
