Variable Tuning & Load

Variable Tuning & Load Capacitors

The M-73 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.
Our Part NumberSec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak
Volts
Overall
W x H x L

73-112-15 1 14-70 15 .118 4500V 2.6" x 2.6" x 3.3"
73-175-17 1 10-110 17 .060 2800V 2.6" x 2.6" x 4"
73-175-23 1 14-155 21 .075 3200V 2.6" x 2.6" x 4.8"
26-96** 1 20-160 23 .075 3000V 2.6" x 2.6" x 4.3"
73-180-35
1 20-215 35 .080 3600V 2.6" x 2.6" x 6.2"
73-145-25 1 20-240 27 .045 2000V 2.6" x 2.6" x 3.6"
73-1200-38 1 23.176 38 .12 2000V

2.6 x 2.6 x 7

73-1100-49 1 20-240 49 .090 4000V 2.6" x 2.6" x 8.5"
73-1100-54 1 35-280 54 .100 4400V 2.6" x 2.6" x 9.3"
73-132-53 1 25-840 53 .030 1200V 2.6" x 2.6" x 5.7"
20-160 2 10-70 / 10-90 34 .065 2500V 3" x 2.2" x 4.6"
47-887 2 22-430 / 25-457 40 .030 1200V 4.1" x 3.5" x 3.6"

**Shaft length and mounting cut to fit SB200.



Our Part NumberSec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
48APL30
( sub for 48APL41S )
1 5-30 15 .048 2000V 1.5" x 1.4" x 1.5"
074-047
1 5-100 26 .032 1200V 1.5" x 1.4" x 2"
(Shaft Length 5.75")
19100 1 7-100 13 .032 1200V 1.5" x 1.7" x 2"
20APL300DE** 1 12-300 49 .020 1200V 1.4" x 2.5" x 1.3"
32APL144DE 1 12-144 34 .032 1070V 1.4" x 2.3" x 1.36"
HF15 1 3-15 5 .020 750V 1.3" x 1.3" x .8 "
F1-397 1 7-20 4 .030 500V 1.7" x 1.7" x 1.8 "
(Shaft Length 4.5")
**20APL300S is the same capacitor as "DE" version, but with ceramic end plate for added strength.




Part NumberShaft
Dia x Lth
inches
Sec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
CT10042G 1/4 x 3/8 1 5-45 12 .016 250V 0.9" x 1.2" x 1.2"
7254172 3/8 x 9/16 1 2-30 12 .020 350v 0.94" x 1.21" x 1.15"
7254173 1/4 x 9/16 1 1-28 12 .020  350v 0.94" x 1.21" x 1.35"
7254174 1/4x3/4 1 3-60 17 .020 350V 0.8" x 1.2" x 4.3"
48B084E 1/4 x 3/4 1 7-140 39 .016 250V 1" x 1.2" x 2"
29516 3/16 x 7/16 1 2-12 5 .025 500V 0.6" x 0.8" x 0.6"
922-0014 slot 1 3-36 12 .015 250 .08" x 1.1" x 1.1"
074-054 1/4x3/8 1 5-26 18 .045 1500V 1"x1.2"x1.8"
08-65 1/4x3/8  1 8-65  21  .012 200v  1.6" x 1.2" x 1.2"
5M11 3/16 x 1/4 1 0.5-5 5 .016 250V 0.5" x 0.7" x 0.8"
15M11 3/16 x 1/4 1 1-15 15 .016 250V
VC55-250 3/16 x 1/4 1 1-15 14 .016 250V 0.8" x 1" x 1"
160-110-1 3/16 x 1/4 1 3-20 22 .016 250V 0.6" x 0.8" x 1.3"
160-107-1 3/16 x 1/4 1 2-13 15 .16 250V 0.6" x 0.8" x 1"
158-4 slot 1 3-70 20 .015 250 .09" x 1.2" x 1.3"
167-1 - 1 2-10 3 .032 1200V 1.4" x 1.4" x 0.9"
ASP27 1/4 x 3/8 1 7-27 20 - - .95" x 1.25" x 1.96"
563-7625-03
Mfg. Cambian
0.41 x 0.22 1 4-35 14 - - .785" x .95" x 1.0"
9411-72 SLOT 1 10-140 47 .016 250V 1" x 1.2" x 2.5"
148-81-11 .125 x .3 1 6-30 34 - - 13/16" x 7/8" x 2-3/8"
4138 1/4 x 1.1" 25-370  21 x (3)   -  -  3.2" x 1.85" x 3.75"

List  Grid

per page
Set Descending Direction

  1. 20APL300DE Variable Capacitor, 12-300pF, OEP

    20APL300DE Variable Capacitor, 12-300pF, OEP

    20APL300DE Variable Capacitor, 12-300pf, 1200v, 49 plates, MFR: OEP

    Made in the USA
  2. 26-96 Variable Capacitor, 20-16pf, 3kv

    26-96 Variable Capacitor, 20-16pf, 3kv

    $69.95

    26-96 Variable Capacitor, 20-160pf, 3kv, MFR: OEP

    Shaft length and mounting cut to fit Heathkit SB200

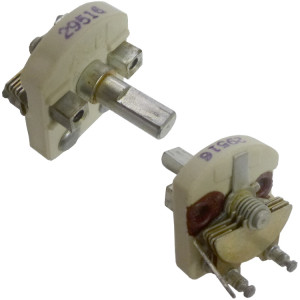

  3. 29516 Capacitor, variable 2-12 pf

    29516 Capacitor, variable 2-12 pf

    $14.95

    29516 Capacitor, variable 2-12 pf

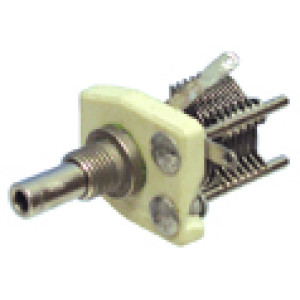

  4. 563-7625-03 Capacitor, variable 4-35pf

    563-7625-03 Capacitor, variable 4-35pf

    $12.95

    563-7625-03 Capacitor, variable 4-35pf

  5. 73-1100-49  Variable Capacitor, 20-240pf, 4kv

    73-1100-49 Variable Capacitor, 20-240pf, 4kv

    $94.95

    73-1100-49  Variable Capacitor, 20-240pf, 4kv, MFR: OEP



  6. 73-1100-54  Variable Capacitor, 35-280pf, 4.4kv

    73-1100-54 Variable Capacitor, 35-280pf, 4.4kv

    $99.95

    73-1100-54  Variable Capacitor, 35-280pf, 4.4kv, 54 plates, MFR: OEP

  7. 73-1-12-15  M73 Air Variable Capacitor, 14-70pF, 4.5kv

    73-1-12-15 M73 Air Variable Capacitor, 14-70pF, 4.5kv

    73-1-12-15 Capacitor, variable 14-70pF, 4.5kv

    MFR: OEP



  8. 73-132-53 Variable Capacitor, 25-840pf, 1.2kv

    73-132-53 Variable Capacitor, 25-840pf, 1.2kv

    $104.91

    73-132-53  Variable Capacitor, 25-840pf, 1.2kv, MFR: OEP (26-145)

    Replacement for Heathkit SB220 and SB221

  9. HF15 Capacitor, variable, 2.8-17.5pf Hammerlund

    HF15 Capacitor, variable, 2.8-17.5pf Hammerlund

    $16.95

    HF15  Variable Capacitor, Panel Mount, 2.8-17.5pf, MFR: Hammerlund

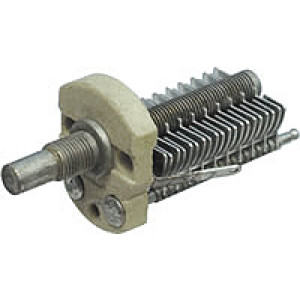

  10. ASP27 Capacitor, variable 7-27pf

    ASP27 Capacitor, variable 7-27pf

    $17.95

    ASP27 Capacitor, variable 7-27pf

Items 21 to 30 of 63 total
