Dummy Loads
Please click on a subcategory.
-
RFLOAD-DF200 RF Industries 7/16 Din Female 200 Watt Termination Load - 600-2700MHz
$718.91- Impedance: 50 Ohm
- 3rd Order IM: -155dBc (Relative to Carrier)
- 3rd Order IM Test Method: 2x43dBm Carriers
- VSWR: ≤ 1.25
- Power: 200W
MFR: RF Inudustries
SKU: RFLOAD-DF200See Data Sheet
-
DL250N Celwave 250 Watt Dummy Load with N Female Connector (Pull)
$49.95Out of stock
-
6705E1 Altronic Research Dummy Load (Tuned for Channel 13 - 210-216 MHz ) (Pull)
$2,500.00The 6700 Series are extraordinary air cooled terminations for 50-ohm coaxial transmission line systems that exhibit excellent and stable RF characteristics during their full range of operating power.
- Silver contacts on special film resistors and clips eliminate resistor failure due to contact resistance and make possible the superior RF performance.
- Easy air ducting, extremely quiet, standby operation, interlock, alarm output, and easy to find replacement components.
- The 6700 Series has set new industry standards for all areas of performance, reliability, and value.
Clean * This unit has some minor damage to the Light on front panel
Used * No longer available for export
MFR: Altronic Research Inc. * Made in USA
SKU:6705E1Note: This unit must ship by Freight Truck.
Made in the USA -
T350T KDI TNC Male 1.12 GHz 20 Watt Dummy Load, NSN 5985-00-139-3493 (Pull)
$49.95Out of stock
-

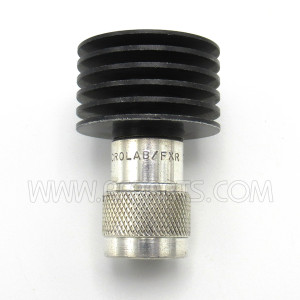

TB-5NM Microlab / FXR Fixed Termination Type-N Male DC-5.5GHz 10 Watt (Pull)
$79.91 -
160-20MN Sierra Electronic Corp. 20 Watt 1.2GHz N Male Dummy Load, NSN 5985-00-984-6064 (Pull)
$59.95 -
908A DC-4GHz 50Ω 0.5W Type-N-Male Coaxial Termination Load
$74.95 -

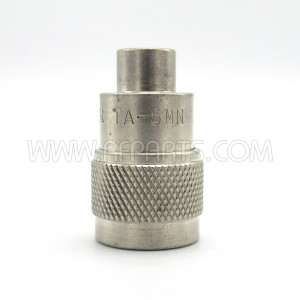

TA-5MN Microlab / FXR 2 Watt DC to 18GHz Type-N Resistive Termination (Pull)
$45.91Frequency: DC - 18 GHz
Power: 2W
VSWR:
<1.17:1 max., 1.10:1 typ. for DC-4GHz
<1.34:1 max., 1.20:1 typ. for 4-6GHz
PIM: n/a
Connectors: N (m)
Ingress Protection: n/a
MFR: Microlab / FXR
SKU: TA-5MN-PSee Data Sheet
-
NTRM-50 Mini Circuits 2GHz 50 Ohms Dummy Load (Pull)
$19.95 -
A3RRC4 Aeroflex / KDI Surface Mount Termination 150 Watt DC-3 GHz 50 Ohm (NOS)
$12.91 As low as: $12.50
