Variable Tuning & Load

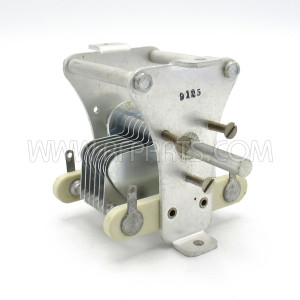

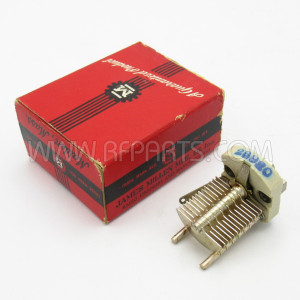

Variable Tuning & Load Capacitors

The M-73 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.
Our Part NumberSec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak
Volts
Overall
W x H x L

73-112-15 1 14-70 15 .118 4500V 2.6" x 2.6" x 3.3"
73-175-17 1 10-110 17 .060 2800V 2.6" x 2.6" x 4"
73-175-23 1 14-155 21 .075 3200V 2.6" x 2.6" x 4.8"
26-96** 1 20-160 23 .075 3000V 2.6" x 2.6" x 4.3"
73-180-35
1 20-215 35 .080 3600V 2.6" x 2.6" x 6.2"
73-145-25 1 20-240 27 .045 2000V 2.6" x 2.6" x 3.6"
73-1200-38 1 23.176 38 .12 2000V

2.6 x 2.6 x 7

73-1100-49 1 20-240 49 .090 4000V 2.6" x 2.6" x 8.5"
73-1100-54 1 35-280 54 .100 4400V 2.6" x 2.6" x 9.3"
73-132-53 1 25-840 53 .030 1200V 2.6" x 2.6" x 5.7"
20-160 2 10-70 / 10-90 34 .065 2500V 3" x 2.2" x 4.6"
47-887 2 22-430 / 25-457 40 .030 1200V 4.1" x 3.5" x 3.6"

**Shaft length and mounting cut to fit SB200.



Our Part NumberSec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
48APL30
( sub for 48APL41S )
1 5-30 15 .048 2000V 1.5" x 1.4" x 1.5"
074-047
1 5-100 26 .032 1200V 1.5" x 1.4" x 2"
(Shaft Length 5.75")
19100 1 7-100 13 .032 1200V 1.5" x 1.7" x 2"
20APL300DE** 1 12-300 49 .020 1200V 1.4" x 2.5" x 1.3"
32APL144DE 1 12-144 34 .032 1070V 1.4" x 2.3" x 1.36"
HF15 1 3-15 5 .020 750V 1.3" x 1.3" x .8 "
F1-397 1 7-20 4 .030 500V 1.7" x 1.7" x 1.8 "
(Shaft Length 4.5")
**20APL300S is the same capacitor as "DE" version, but with ceramic end plate for added strength.




Part NumberShaft
Dia x Lth
inches
Sec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
CT10042G 1/4 x 3/8 1 5-45 12 .016 250V 0.9" x 1.2" x 1.2"
7254172 3/8 x 9/16 1 2-30 12 .020 350v 0.94" x 1.21" x 1.15"
7254173 1/4 x 9/16 1 1-28 12 .020  350v 0.94" x 1.21" x 1.35"
7254174 1/4x3/4 1 3-60 17 .020 350V 0.8" x 1.2" x 4.3"
48B084E 1/4 x 3/4 1 7-140 39 .016 250V 1" x 1.2" x 2"
29516 3/16 x 7/16 1 2-12 5 .025 500V 0.6" x 0.8" x 0.6"
922-0014 slot 1 3-36 12 .015 250 .08" x 1.1" x 1.1"
074-054 1/4x3/8 1 5-26 18 .045 1500V 1"x1.2"x1.8"
08-65 1/4x3/8  1 8-65  21  .012 200v  1.6" x 1.2" x 1.2"
5M11 3/16 x 1/4 1 0.5-5 5 .016 250V 0.5" x 0.7" x 0.8"
15M11 3/16 x 1/4 1 1-15 15 .016 250V
VC55-250 3/16 x 1/4 1 1-15 14 .016 250V 0.8" x 1" x 1"
160-110-1 3/16 x 1/4 1 3-20 22 .016 250V 0.6" x 0.8" x 1.3"
160-107-1 3/16 x 1/4 1 2-13 15 .16 250V 0.6" x 0.8" x 1"
158-4 slot 1 3-70 20 .015 250 .09" x 1.2" x 1.3"
167-1 - 1 2-10 3 .032 1200V 1.4" x 1.4" x 0.9"
ASP27 1/4 x 3/8 1 7-27 20 - - .95" x 1.25" x 1.96"
563-7625-03
Mfg. Cambian
0.41 x 0.22 1 4-35 14 - - .785" x .95" x 1.0"
9411-72 SLOT 1 10-140 47 .016 250V 1" x 1.2" x 2.5"
148-81-11 .125 x .3 1 6-30 34 - - 13/16" x 7/8" x 2-3/8"
4138 1/4 x 1.1" 25-370  21 x (3)   -  -  3.2" x 1.85" x 3.75"

List  Grid

per page
Set Descending Direction

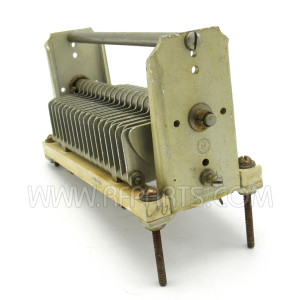

  1. VC50  Cardwell Capacitor, 17-50pf 3kv 22 plates, Spacing: 0.165 (PULL)

    VC50 Cardwell Capacitor, 17-50pf 3kv 22 plates, Spacing: 0.165 (PULL)

    $129.95

    VC50 Cardwell Capacitor, 17-50pf 3kv 22 plates, Spacing: 0.165. Used Excellent Condition. Not for export
    Made in the USA

  2. 153-6  Air Variable Capacitor, 36-496 pf, 3500v, EF Johnson (PULL)

    153-6 Air Variable Capacitor, 36-496 pf, 3500v, EF Johnson (PULL)

    $271.95

    153-6  Air Variable Capacitor, 39-496 pf, 3500v, 39 Plates, 0.08" spacing, MFR: E.F. Johnson  No longer available for Export. Used Excellent Condition.



    Made in the USA

  3. 153-18  Air Variable Capacitor, 43-149 pf, 9000v, EF Johnson (PULL)

    153-18 Air Variable Capacitor, 43-149 pf, 9000v, EF Johnson (PULL)

    $199.95

    153-18  Air Variable Capacitor, 43-149 pf, 9000v, 29 plates, 0.25" spacing, MFR: E.F. Johnson (Clean Used)  No longer available for Export



    Made in the USA

  4. 12515 Millen Variable Capacitor, 20-150pf 3kv, Comes With Ceramic Insulators (PULL)

    12515 Millen Variable Capacitor, 20-150pf 3kv, Comes With Ceramic Insulators (PULL)

    $129.95

    12515 Millen Variable Capacitor, 20-150pf 3kv, 35 plates, Spacing: 0.075”. Used Good conditions. Comes with 4 ceramic mounting insulators
    Made in the USA

  5. 152-207  Johnson Variable Capacitor, 50CD110, Dual Section 18-50pF,  11kv, 8 plates x 2, 0.35" Spacing (Pull)

    152-207 Johnson Variable Capacitor, 50CD110, Dual Section 18-50pF, 11kv, 8 plates x 2, 0.35" Spacing (Pull)

    $429.95

    152-207  EF Johnson Variable Capacitor, 50CD110, Dual Section 18-50pF, 11kv, 8 plates x 2, 0.35" Spacing (Used, Excellent Condition)

    Made in the USA

  6. 160-211-1 E. F. Johnson Variable Capacitor, Panel Mount, 2.7-10.8 pf, 11M811 (NOS)

    160-211-1 E. F. Johnson Variable Capacitor, Panel Mount, 2.7-10.8 pf, 11M811 (NOS)

    $19.95

    160-211-1 E. F. Johnson Variable Capacitor, Panel Mount, 2.7-10.8 pf, 11M811. New Old Stock.

    No longer available for Export

    Made in the USA

  7. AMT  National Variable Capacitor 15-55pf 8kv 0.18" gap 18 plates (Pull)

    AMT National Variable Capacitor 15-55pf 8kv 0.18" gap 18 plates (Pull)

    $189.95

    AMT National Variable Capacitor 15-55pf 8kv 0.18" gap 18 plates. Used, Great Condition.
    Made in the USA
  8. 075-003 Capacitor, variable 4-8 / 5-13pf, ASP style, 2 section

    075-003 Capacitor, variable 4-8 / 5-13pf, ASP style, 2 section

    $14.95

    075-003 Capacitor, variable 4-8 / 5-13pf, ASP style, 2 section, Used in Swan or Atlas transceivers, Made in England

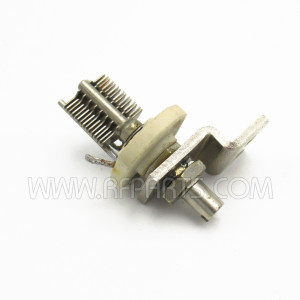

  9. ATM-15 Variable Capacitor, 2.2-14.8 pf, OEP (160-107-1 / 15M11)

    ATM-15 Variable Capacitor, 2.2-14.8 pf, OEP (160-107-1 / 15M11)

    ATM-15 Variable Capacitor, 2.2-14.8 pf, 15 plates, (will sub for Johnson 160-107-1 / 15M11), MFR: OEP Inc.

    Similar replacement for Johnson 160-107-1/15M11.

    Made in the USA
  10. 73-1120-38 Capacitor, variable 23-176pf, 38 Plates

    73-1120-38 Capacitor, variable 23-176pf, 38 Plates

    $84.95

    73-1120-38 Capacitor, variable 23-176pf, 3.5kv, 38 Plates, 0.12 plate gap

    NOTE: Used in Ten Tec equipment
