Variable Tuning & Load

Variable Tuning & Load Capacitors

The M-73 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.
Our Part NumberSec'sMin/Max
Cap pF		Total PlatesPlate SpacingPeak
Volts		Overall
W x H x L

73-112-15 1 14-70 15 .118 4500V 2.6" x 2.6" x 3.3"
73-175-17 1 10-110 17 .060 2800V 2.6" x 2.6" x 4"
73-175-23 1 14-155 21 .075 3200V 2.6" x 2.6" x 4.8"
26-96** 1 20-160 23 .075 3000V 2.6" x 2.6" x 4.3"
73-180-35
 1 20-215 35 .080 3600V 2.6" x 2.6" x 6.2"
73-145-25 1 20-240 27 .045 2000V 2.6" x 2.6" x 3.6"
73-1200-38 1 23.176 38 .12 2000V

2.6 x 2.6 x 7
73-1100-49 1 20-240 49 .090 4000V 2.6" x 2.6" x 8.5"
73-1100-54 1 35-280 54 .100 4400V 2.6" x 2.6" x 9.3"
73-132-53 1 25-840 53 .030 1200V 2.6" x 2.6" x 5.7"
20-160 2 10-70 / 10-90 34 .065 2500V 3" x 2.2" x 4.6"
47-887 2 22-430 / 25-457 40 .030 1200V 4.1" x 3.5" x 3.6"

**Shaft length and mounting cut to fit SB200.



Our Part NumberSec'sMin/Max
Cap pF		Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
48APL30
( sub for 48APL41S )		 1 5-30 15 .048 2000V 1.5" x 1.4" x 1.5"
074-047
1 5-100 26 .032 1200V 1.5" x 1.4" x 2"
(Shaft Length 5.75")
19100 1 7-100 13 .032 1200V 1.5" x 1.7" x 2"
20APL300DE** 1 12-300 49 .020 1200V 1.4" x 2.5" x 1.3"
32APL144DE 1 12-144 34 .032 1070V 1.4" x 2.3" x 1.36"
HF15 1 3-15 5 .020 750V 1.3" x 1.3" x .8 "
F1-397 1 7-20 4 .030 500V 1.7" x 1.7" x 1.8 "
(Shaft Length 4.5")
**20APL300S is the same capacitor as "DE" version, but with ceramic end plate for added strength.




Part NumberShaft
Dia x Lth
inches		Sec'sMin/Max
Cap pF		Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
CT10042G 1/4 x 3/8 1 5-45 12 .016 250V 0.9" x 1.2" x 1.2"
7254172 3/8 x 9/16 1 2-30 12 .020 350v 0.94" x 1.21" x 1.15"
7254173 1/4 x 9/16 1 1-28 12 .020  350v 0.94" x 1.21" x 1.35"
7254174 1/4x3/4 1 3-60 17 .020 350V 0.8" x 1.2" x 4.3"
48B084E 1/4 x 3/4 1 7-140 39 .016 250V 1" x 1.2" x 2"
29516 3/16 x 7/16 1 2-12 5 .025 500V 0.6" x 0.8" x 0.6"
922-0014 slot 1 3-36 12 .015 250 .08" x 1.1" x 1.1"
074-054 1/4x3/8 1 5-26 18 .045 1500V 1"x1.2"x1.8"
08-65 1/4x3/8  1 8-65  21  .012 200v  1.6" x 1.2" x 1.2"
5M11 3/16 x 1/4 1 0.5-5 5 .016 250V 0.5" x 0.7" x 0.8"
15M11 3/16 x 1/4 1 1-15 15 .016 250V
VC55-250 3/16 x 1/4 1 1-15 14 .016 250V 0.8" x 1" x 1"
160-110-1 3/16 x 1/4 1 3-20 22 .016 250V 0.6" x 0.8" x 1.3"
160-107-1 3/16 x 1/4 1 2-13 15 .16 250V 0.6" x 0.8" x 1"
158-4 slot 1 3-70 20 .015 250 .09" x 1.2" x 1.3"
167-1 - 1 2-10 3 .032 1200V 1.4" x 1.4" x 0.9"
ASP27 1/4 x 3/8 1 7-27 20 - - .95" x 1.25" x 1.96"
563-7625-03
Mfg. Cambian		 0.41 x 0.22 1 4-35 14 - - .785" x .95" x 1.0"
9411-72 SLOT 1 10-140 47 .016 250V 1" x 1.2" x 2.5"
148-81-11 .125 x .3 1 6-30 34 - - 13/16" x 7/8" x 2-3/8"
4138 1/4 x 1.1" 3  25-370  21 x (3)   -  -  3.2" x 1.85" x 3.75"

List  Grid

per page
Set Descending Direction

  1. 9411-72-50385 Hammarlund Variable Capacitor 10-140pf (NOS)

    9411-72-50385 Hammarlund Variable Capacitor 10-140pf (NOS)

    $28.91

    Size:  1"x1.2"x2.5"

    New Old Stock, Not for Export
    MFR: Hammarlund
    SKU: 9411-72-50385



    Made in the USA
  2. CT10042G Capacitor, variable 5-45pf

    CT10042G Capacitor, variable 5-45pf

    $14.91

    CT10042G ASP Variable Capacitor 5-45pf

    SKU: CT10042G

  3. F1-397 Variable Capacitor, 7-20pf

    F1-397 Variable Capacitor, 7-20pf

    $24.95

    F1-397 Variable Capacitor, 7-20pf

  4. MCA-140-S Hammarlund Variable Capacitor 7-140pf 1.5Kv (NOS)

    MCA-140-S Hammarlund Variable Capacitor 7-140pf 1.5Kv (NOS)

    $59.91

    Capacitance: 7-140pf
    Peak Voltage: 1.5Kv
    19 Plates
    1-15/32" long (body) x 1-11/16" wide x 1-1/4" high
    New Old Stock * No longer available for export
    MFR: Hammarlund
    SKU: MCA140S

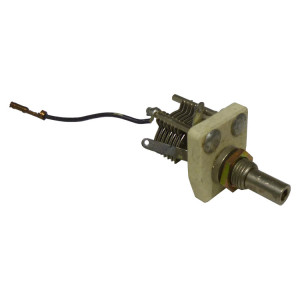

  5. VC55-250; Capacitor, variable, 1-15 pf

    VC55-250; Capacitor, variable, 1-15 pf

    $8.91

    VC55-250; Capacitor, variable, 1-15 pf

  6. HF-15-X Hammarlund Air Variable Capacitor 4-15pf 1.2Kv (Pull)

    HF-15-X Hammarlund Air Variable Capacitor 4-15pf 1.2Kv (Pull)

    $14.91

    • Capacitance: 4-15pf
    • Peak Voltage: 1.2Kv
    • Plates: 10

    Used * No longer available for export
    MFR: Hammarlund
    SKU: HF-15-X-P

  7. HF-15 Hammarlund Variable Capacitor 2.8-17.5pf (NOS)

    HF-15 Hammarlund Variable Capacitor 2.8-17.5pf (NOS)

    $14.91

    Ideal for critical high-frequency circuits. Isolanite insulation.

    • Min/Max Cap Pf.: 2.8-17.5
    • L x W x H: 1.3" x 1.3" x 0.8"

    New Old Stock  * No longer available for export
    MFR: Hammarlund
    SKU: HF15




  8. 167-1 E.F. Johnson Variable Capacitor 2.2-10pf 2Kv (NOS)

    167-1 E.F. Johnson Variable Capacitor 2.2-10pf 2Kv (NOS)

    $21.91

    Sections: 1
    Capacitance: 2.2-10pf
    Peak Volts: 2Kv
    Total Plates: 3
    Plate Spacing: 0.030"
    L x W x H: 3/4" x 1 3/8" x 1 3/8"
    Shaft diameter: 1/4" Round x 3/8"L
    167-0001-001
    NSN 5910-814-4250
    New Old Stock, Not for Export
    MFR: E. F. Johnson
    SKU: 167-1-1

    Made in the USA
  9. 19100 Millen Variable Capacitor 10-100pf 1.2Kv (NOS)

    19100 Millen Variable Capacitor 10-100pf 1.2Kv (NOS)

    $24.91

    • Part Number: 19100
    • Sections: 1
    • Min/Max Cap Pf.: 7-100

    New Old Stock * No longer available for export
    MFR: Millen Manufacturing Company
    SKU: 19100-MILLEN


  10. 20APL300DE OEP Variable Capacitor 12-300pF

    20APL300DE OEP Variable Capacitor 12-300pF

    $33.91 As low as: $32.30

    Sections: 1
    Min/Max Cap Pf.: 12-300
    Total Plates: 49
    Plate Spacing: .020"
    Peak Volts: 1200V
    W x L x H: 1.4" x 2.5" x 1.3"
    MFR: OEP
    SKU: 20APL300DE

    Made in the USA

Items 11 to 20 of 89 total

Page:
  2. 1
  3. 2
  4. 3
  5. 4
  6. 5
