Hammond Filament & Low Voltage

Hammond Filament and Low Voltage Transformers


Part #Secondary(RMS)Dim. Ref.
166U5 5.0 VCT 15 A C14H
166U7 7.5VCT 15 A C16H

Filament Transformer for YC156 and YC179
Use two 7.5 Volt transformers (part number 166U7), with secondaries connected in Series, to give the required 15V @ 15A with a centertap. Primaries may be connected for 115VAC or 230VAC operation.
166R12 12.6VCT 8 A C16H
166L14 14.0 VCT 2 A C10H
166Q14 14.0 VCT 6 A C15H
165V10 10.0 VCT 20 A H10
165V12 12.6 VCT 20 A 115VAC Primary
165X5 5.0 VCT 30 A H9
167U5 5.0VCT 15A X6
167X5 5.0VCT 30A X10
167U6 6.3VCT 16A X8
167V7 7.5VCT 21A X10
167S12 12.6VCT 10A X9
167V12 12.5VCT 20A X13
Part #VASecondary(RMS)Dim. Ref.
185E10 80 10VCT@8.0A
or 5V@16A		 B
185G10 175 10VCT@17.5A
or 5V@35A		 B
185E12 80 12.6VCT@6.3A
or 6.3V@12.6A		 B
185F10 130 10VCT@13A
or 5.0V@26A		 B
185G12 175 12.6VCT@14A
or 6.3V@28A		 B
185G16 175 16VCT@11A
or 8V@22A		 B
265X5 220 5VCT@30A B

List  Grid

per page
Set Descending Direction
  1. 185G16 Hammond Power Transformer 115V/230V 50Hz/60Hz 22A/11A

    185G16 Hammond Power Transformer 115V/230V 50Hz/60Hz 22A/11A

    $52.91 As low as: $50.27

    • Primary: 115V/230V 50/60Hz
    • Secondary (Full Load): 14V
    • Power - Max: 24VA

    MFR: Hammond
    SKU: 185G16

    See Data Sheet

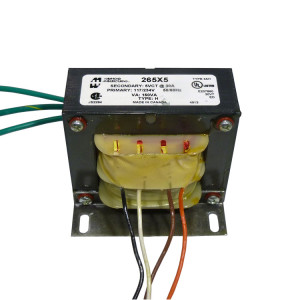

  2. 265X5 Hammond Power Transformer 117V 50/60Hz 30A

    265X5 Hammond Power Transformer 117V 50/60Hz 30A

    $94.91

      • Primary: 117/234V 50/60Hz
      • Secondary: 5VCT @ 30A
      • VA: 150VA

      MFR: Hammond
      SKU: 265X5

      See Data Sheet

    • 104415 Hammond Control Transformer 1kv 240x480 (NOS)

      104415 Hammond Control Transformer 1kv 240x480 (NOS)

      $129.91

      New Old Stock * No longer available for export
      MFR: Hammond
      SKU: 104415

    • 166Q6 Hammond 115 Volt Chassis Mount Power Transformer

      166Q6 Hammond 115 Volt Chassis Mount Power Transformer

      $39.91

      • Type: Laminated Core
      • Voltage - Primary: 115V
      • Voltage - Secondary (Full Load): 6.3V
      • Current - Output (Max): 6 Amps

      MFR: Hammond Manufacturing
      Made in Canada
      SKU: 166Q6

    • H302117 Hammond Instrumentation Transformer (Custom) 115vac 400Hz

      H302117 Hammond Instrumentation Transformer (Custom) 115vac 400Hz

      $68.91

      • 2 Primary Pin
      • 6 Secondary Pins
      • Primary: 115vac @ 400Hz
      • Secondary: 85vac, 115vac, 125vac @ 400Hz, 10mA

      MFR: Hammond
      SKU: H302117
