Amperite Thermal Delay



Amperite Thermal Delay RelaysAMPERITE
Definition of a part number for the Amperite G Series Time Delay Relay.
  • A:  Denotes nominal Input voltage. Voltages Available: 6, 12, 26, 50 & 115V AC/DC.
  • B:  Denotes contact form:  NO = normally open (Delay on Make) -1 form A - SPST;   C = normally closed (Delay on Break) -1 form B - SPST
  • C:  Denotes timing value: Factory preset time delays from 1 - 300 secs. are available (octal style) and 1 - 120 secs. (9-pin miniature style)
  • D:  Denotes type of glass envelope: Blank = octal style. T = 9-pin miniature style.
  • Octal Base 9 Pin Miniature
    Part NumberVoltsDelay/Sec. Part NumberVoltsDelay/Sec.
    Normally Open Contacts   Normally Open Contacts
    6NO2 6 2   2NO15T 2 15
    6NO3 6 3   6NO2T 6 2
    6NO5 6 5   6NO5T 6 6
    6NO8 6 8   6NO10T 6 10
    6NO10 6 10   6NO60T 6 60
    6NO15 6 15   6NO75T 6 75
    6NO20 6 20   6NO120T 6 120
    6NO30 6 30   6NO150T 6 150
    6NO40 6 40   6NO180T 6 180
    6NO45 6 45   12NO3T 12 3
    6NO60 6 60   12NO10T 12 10
    6NO90 6 90   26NO2T 26 2
    6NO120 6 120   26NO3T 26 3
    6NO150 6 150   26NO20T 26 20
    6NO180 6 180   26NO60T 26 60
    12NO10 12 10   115NO2T 115 2
    12NO30 12 30   115NO3T 115 3
    12NO60 12 60   115N05T 115 5
    12NO90 12 90   115NO7T 115 7
    12NO120 12 120   115NO20T 115 20
    26NO5 26 5   115NO30T 115 30
    26NO8 26 8   115NO45T 115 45
    26NO10 26 10   115NO60T 115 60
    26NO20 26 20   115NO75T 115 70
    26NO45 26 45   115NO90T 115 90
    26NO60 26 60   115NO120T 115 120
    26NO75 26 75   Normally Closed Contacts
    26NO180 26 180   12C3T 12 3
    50NO60 50 60   26C2T 26 2
    115NO2 115 2   26C30T 26 30
    115NO5 115 5   115C2T 115 2
    115NO10 115 10   115C8T 115 8
    115NO15 115 15   115C15T 115 15
    115NO20 115 20   115C45T 115 45
    115NO30 115 30   115C60T 115 60
    115NO45 115 45
    115NO60 115 60
    115NO75 115 75
    115NO90 115 90
    115NO120 115 120
    115NO150 115 150
    115NO180 115 180
    Normally Closed Contacts
    6C10 6 10
    12C120 12 120
    26C8 26 8
    26C20 26 20
    115C2 115 2
    115C3 115 3
    115C10 115 10
    115C30 115 30
    115C60 115 60
    115C120 115 120
    115C180 115 180

    List  Grid

    per page
    Set Descending Direction
    1. 115C45T Amperite, 9 pin minature

      115C45T Amperite, 9 pin minature

      $14.95

      115C45T Amperite, 9 pin minature

    2. 6NO20 Amperite Time Delay Relay (NOS)

      6NO20 Amperite Time Delay Relay (NOS)

      $24.91

      • Octal Base with 6 pins
      • 3 Amps
      • SPST-No
      • 20 second delay
      • Similar to 6VDC 6VAC

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO20

      Data Sheet

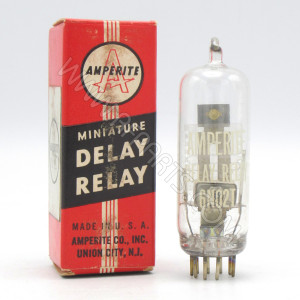

    3. 6NO2T Amperite Time Delay Relay (NOS)

      6NO2T Amperite Time Delay Relay (NOS)

      $24.91

      • 9 pin Base
      • SPST: No
      • 2 second delay
      • 3 Amp
      • Similar to 6VDC, 6VAC.

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO2T

      Data Sheet

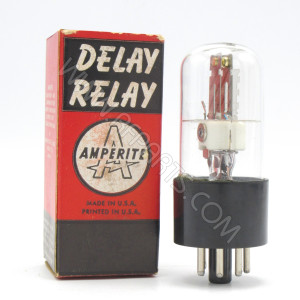

    4. 6NO3 Amperite Time Delay Relay (NOS)

      6NO3 Amperite Time Delay Relay (NOS)

      $24.91

      • Octal Base with 6 pins
      • 3 Amps
      • SPST-No
      • 3 second delay
      • Similar to 6VDC 6VAC

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO3

      Data Sheet

    5. 6NO30 Amperite Time Delay Relay (NOS)

      6NO30 Amperite Time Delay Relay (NOS)

      $24.91

      • Octal base with 6 pins
      • SPST: No
      • 30 second delay
      • 3Amp
      • Similar to 6VDC, 6VAC.

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO30

      Data Sheet

    6. 6NO30T Amperite Time Delay Relay (NOS)

      6NO30T Amperite Time Delay Relay (NOS)

      $29.91

      • 9 pin base
      • SPST: No
      • 30 second delay
      • 3 Amps
      • Similar to 6VDC, 6VAC.

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO30T

      Data Sheet

    7. 6NO45 Amperite Time Delay Relay (NOS)

      6NO45 Amperite Time Delay Relay (NOS)

      $29.91

      • 6 volt normally open 45 second delay
      • Octal Base with 6 piins

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO45

      Data Sheet

    8. 6NO45T Amperite Time Delay Relay (NOS)

      6NO45T Amperite Time Delay Relay (NOS)

      $29.91

      • 6 volt normally open 45 second delay
      • 9 Pins

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO45T

      Data Sheet

    9. 6NO5 Amperite Time Delay Relay (NOS)

      6NO5 Amperite Time Delay Relay (NOS)

      $24.91

      • Octal base with 6 pins
      • 3 Amps
      • SPST-No
      • 5 second delay
      • Similar to 6VDC 6VAC

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO5

      Data Sheet

    10. 6NO5T Amperite Time Delay Relay (NOS)

      6NO5T Amperite Time Delay Relay (NOS)

      $24.91

      • 9 pin base
      • SPST: No
      • 5 second delay
      • 3 Amp
      • Similar to 6VDC, 6VAC.

      New Old Stock * No longer available for export
      MFR: Amperite
      SKU: 6NO5T

      Data Sheet

    Items 1 to 10 of 34 total
