Antenna Load

Broadcast Variable Style
Our Part NumberSec'sMin/Max
Cap pF
Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
56-36 1 15-410 35 .015 250V 1.5”x1.6”x1.2”
X480-1 1 14-360 29 .010 250V 1.5”x1.6”x1.2”
074-062 2 15-365, 15-365 23 .015 250V 1.8”x2.1”x2.2”
10295 2 20-430, 20-430 27 .015 250V 1.8”x2.1”x2.2”
X764 * 3 3 x 15-470 93 .015 250V 1.8”x2.1”x3.3”
Palomar/Pride
 MC100SX 16.5-100   35  .050  250v  1.7"x 1.28"x 5.25"
0121-0010 3 - - - - -
PTR 60725 3 - 31 - - -
2 and 3 section capacitors: connect sections in parallel for maximum capacitance.
* X764 requires tapping holes for mounting.
Shield between sections not available in X764 and CN156.

List  Grid

per page
Set Descending Direction
  1. 074-048  Variable Antenna Loading Capacitor, 3-Section, 15-520pf per section

    074-048 Variable Antenna Loading Capacitor, 3-Section, 15-520pf per section

    $34.95

    074-048  Variable Antenna Loading Capacitor, 3-Section, 3x: 15-520pf, ASP

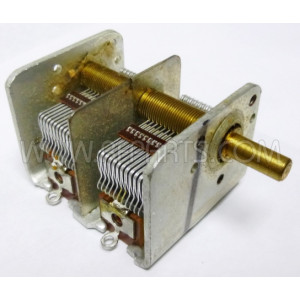

  2. 074-062 Capacitor, variable 10-375pf, ASP style

    074-062 Capacitor, variable 10-375pf, ASP style

    $16.95

    074-062  Variable Capacitor, Dual Section 10-375pf, 1/4" shaft, ASP Style

  3. 10295 Capacitor,  Dual sec. 10-440 pf, Variable

    10295 Capacitor, Dual sec. 10-440 pf, Variable

    $19.95

    10295 Capacitor, Dual sec. 10-440 pf, Variable Variable Capacitor, Dual section 10-440 pf, 1/4" Shaft

  4. 249037  Variable Capacitor, 4 Gang, 15-520pf x 4 sections, NOS

    249037 Variable Capacitor, 4 Gang, 15-520pf x 4 sections, NOS

    $49.95

    249037  Variable Capacitor, 4 sections, 15-520 pf per section

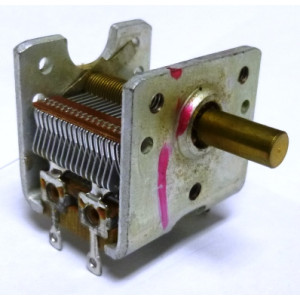

  5. 56-36 Capacitor, variable 15-410pf

    56-36 Capacitor, variable 15-410pf

    $9.95

    56-36 Capacitor, variable 15-410pf 15-410pf, 1/4" Shaft dia

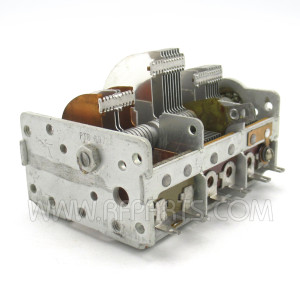

  6. PTR60725  Variable Capacitor, 3 Section

    PTR60725 Variable Capacitor, 3 Section

    $17.95

    PTR60725 Variable Capacitor, 3 Section Variable Capacitor, 3 Section

6 Item(s)
