Air Variable - Johnson Panel Mount
|
JOHNSON AIR VARIABLE CAPACITORS Limited Quantity Available. NOS Original Johnson Capacitors |
| PART # |
CAPACITANCE PF (MIN-MAX) |
PLATES | DIMENSIONS HxWxL | SHAFT |
| 148-504-1 | 3.2-35 | 14 | 1.4" x 0.885" x 1.594" | 0.22 hex |
| 160-102-1 | 0.5-5 | 5 | 0.75" x 0.625" x 0.60" | 3/16" |
| 160-104-1 | 1.8-8.7 | 9 | 0.75" x 0.625" x 0.812" | 3/16" |
| 160-107-1 | 1-15 | 15 | 0.63" x 1.6" x 0.86" | 3/16" |
| 160-110-1 | 2.7-19.6 | 21 | 0.75" x 0.625" x 1.172" | 3/16" |
| 160-130-1 | 3.1-31.9 | 28 | 1.77 " x 0.63" x 0.76" | 3/16" |
| 160-203-1 | 1.5-3.1 | 5 | 0.75" x 0.625" x 0.703" | 3/16" |
| 160-208-1 | 2.2-8 | 16 | 0.75" x 0.625" x 1" | 3/16" |
| 160-305-1 | 1.8-8.7 | 9 | 0.75" x 0.625" x 0.812" | 3/16" |
| 160-308-1 | 2.3-14.2 | 15 | 0.75" x 0.625" x 1" | 3/16" |
| 160-311-1 | 2.7-19.6 | 21 | 0.75" x 0.625" x 1.172" | 3/16" |
| 167-1-1 | 2.2-10 | 3 | 1.375" x 1.375" x 0.75" | 1/4" |
| 167-2-1 | 2.9-25 | 7 | 1.375" x 1.375" x 0.953" | 1/4" |
| 167-3-1 | 4-50 | 13 | 1.375" x 1.375" x 1.25" | 1/4" |
| 167-4-1 | 5.2-75 | 19 | 1.375" x 1.375" x 1.562" | 1/4" |
| 167-21-1 | 2.3-10 | 5 | 1.375" x 1.375" x 0.859" | 1/4" |
| 167-22-1 | 3.7-25 | 12 | 1.375" x 1.375" x 1.25" | 1/4" |
| 167-23-1 | 5.9-50 | 23 | 1.375" x 1.375" x 1.75" | 1/4" |
| 167-31-1 | 2.8-11 | 3 | 1.375" x 1.375" x 0.75" | 1/4" |
| 167-52-1 | 5.4-51 (DUAL) | 13 | 1.375" x 1.375" x 2.234" | 1/4" |

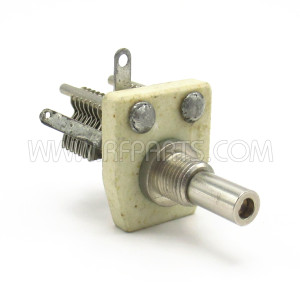

335 Cambion Air Variable Capacitor 3-35pf 800v (Pull)
In Stock
- Peak Voltage: 800v
- Capacitance: 3-35pf
Used * No longer available for export
MFR: Cambion
SKU: 335-P

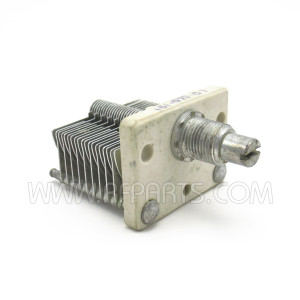

161-076-01 E.F. Johnson Air Variable Capacitor 7-80pf 1Kv (Pull)
In Stock
- Capacitance: 7-80pf
- Peak Volts: 1kv
Used * No longer available for export
MRF: E.F. Johnson
SKU: 161-076-01-P

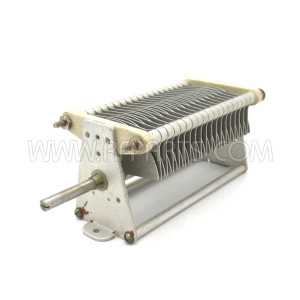

154-9 E.F. Johnson Variable Capacitor 20-260pf 2KV (Pull)
In Stock
- Plates: 37
- Max Voltage: 2kv
- Impedance: 20-260pf
Clean Used * No longer available for export
MFR: E.F. Johnson
SKU: 154-9-JOHNSON-P
100F20 Johnson Air Variable Capacitor 12-100pf 2kv (NOS)
In Stock
- Plates: 17
- Shaft: 1/4" Slotted
New Old Stock * No longer available for export
MFR: E.F. Johnson
SKU: 100F20
25LA15 Johnson Variable Butterfly Capacitor 5-25pf 1kv (Pull)
In Stock
Capacitance: 5-25pf
Total Plates: 7
Peak Volts: 1kv
15/16" (body) long x 1-3/8" wide x 1-3/8" high
Shaft Diameter: 1/4" Round
Used * No longer available for export
MFR: Johnson
SKU: 25LA15-P
3MB11 Johnson Butterfly Variable Capacitor 1.5-3pf (NOS)
In Stock
- Voltage: 1 kv
- Capacitance: 1.5-3pf
New Old Stock * No longer available for export
MFR: E.F. Johnson
SKU: 3MB11
15M11 E.F. Johnson Variable Capacitor 2.3-14pf (NOS)
In Stock
- Min/Max Capacitance: 2.3-14pf
- Peak Volts: 1Kv
New Old Stock * No longer available for export
MFR: E.F. Johnson
SKU: 15M11

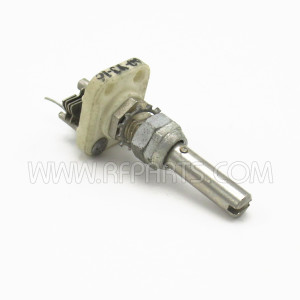

160-13-16 Johnson Air Variable Capacitor 1.5-4pf 500v (Pull)
In Stock
Capacitance: 1.5-4pf
Voltage: 500v
Plates: 4
Shaft: 7/16" diameter x 19/32" long (Slotted)
Used * No longer available for export
MFR: Johnson
SKU: 160-13-16-P
19K475606 Johnson Air Variable Tuning Capacitor 3-20pf 1.2kv (Pull)
In Stock
- Capacitance: 3 to 20pf
- Peak Voltage: 1200v
Used * No longer available for export
MFR: Johnson Manufacturing Corporation
SKU: 19K475606-P
15M11 E.F. Johnson Variable Capacitor 2.3-14pf with Bracket (NOS)
In Stock
- Min/Max Capacitance: 2.3-14pf
- Peak Volts: 1Kv
New Old Stock * No longer available for export
MFR: E.F. Johnson
SKU: 15M11-BKT
