Air Variable - PC Mount

Air Variable Capacitors — Type U Johnson Vertical PC Mount

Part Number	Total Plates	pF Min-Max	Length (inches) (mm)	WVDC
187-0109-005 ( Marked T9-5)	18	1.9-15.7	0.581 (14.73)	125
189-501-5 189-502-222	4	1.2-4.2	0.422 (10.72)	325
189-502-223 (189-502-5)	6	1.3-6.7	0.469 (11.91)	325
189-503-004	8	1.4-9.2	0.516 (13.11)	325
189-503-45	8	1.4-9.2	0.516 (13.11)	325
189-503-25	8	1.4-9.2	0.516 (13.11)	325
189-504-5	10	1.5-11.6	0.563 (14.30)	325
189-504-222	10	1.5-11.6	0.563 (14.30)	325
1108-25013 (Mfg. Trim-Tronics)	12	2-14	0.57 (14.50)	325
189-506-5	14	1.8-16.7	0.673 (17.09)	325
189-509-5	20	2.4-24.5	0.813 / (20.65)	250

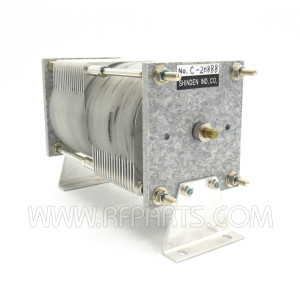

C-20888 Shinden Differential Variable Capacitor with Teflon Insulation 45-1821pf 1800v (Pull)

$219.91
- Plates: 35 x 35
- Volts: 1800v
Used * No longer available for export
MFR: Shinden
SKU: C-20888-P
- | Add to Compare
204-2112-1 OEP Variable Capacitor 20-250pf 3Kv (Pull)

$89.91
- Plates: 37
- Spacing: 0.06
- Volts: 3kv
Used * No longer available for export
MFR: OEP
SKU: 204-2112-1-P
- | Add to Compare

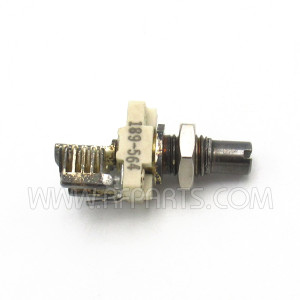

189-564 E.F. Johnson Air Variable Capacitor 1.5pf-11.6pf (NOS)

$14.91
- Silver plating has tarnished
- 10 plates
- Length: 15.62mm (0.615 in.)
New Old Stock * No longer available for export
MFR: E.F. Johnson
SKU: 189-563

Made in the USA
- | Add to Compare
189-563 E.F. Johnson Air Variable Capacitor 1-10pf (NOS)

$14.91
- Silver plating has tarnished
- 8 plates
New Old Stock * No longer available for export
MFR: E.F. Johnson
SKU: 189-563

Made in the USA
- | Add to Compare

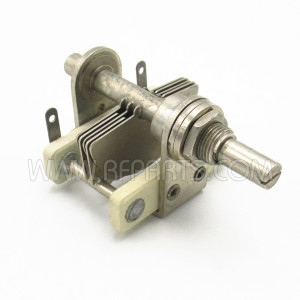

149-2 E.F. Johnson Air Variable Capacitor 7-35pf 1.2kv (Pull)

$39.91
- Plates: 5
- Capacitance: 7-35pf
- Peak Voltage: 1.2kv
- Size: 1-3/4" long (body only) x 1-5/8" wide x 1-1/4" high
- Similar to Hammarlund MC325M
Used * No longer available for export
MFR: E.F. Johnson
SKU: 149-2-P
- | Add to Compare

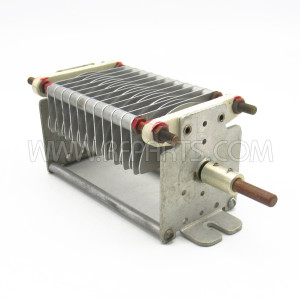

1-12-23 Air Variable Capacitor 20-100pf 2.8kv (Pull)

$49.91
- Plates: 23
- Capacitance: 20-100pf
- Peak Voltage: 2.8kv
- Size: 5-7/8" long (body only) x 2-5/8" wide x 2-19/32" high
Used * No longer available for export
MFR: Unbranded
SKU: 1-12-23-P
- | Add to Compare

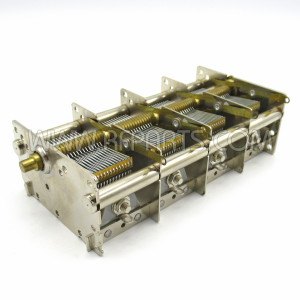

0121-0002 RYC Variable Capacitor 4 Sections 15-530pf (Pull)

$89.91

Capacitance: 15-530pf each section
.020 spacing Xmtg type w/ith insulated frame
Plates Per Section: 27
Knob Shaft: 1/4"
Size: 6-7/32" Long (body) x 3-3/16" Wide x 1-7/8" High
Used * No longer available for export
MFR: RYC
SKU: 0121-0002-P
- | Add to Compare
