HT57 Series 15kv
HT57/HH57/857 Series RF Doorknob Caps
15 KVDC Rating
1.187" Diameter x 1.89" Long • 10-32 Thread
| RF Parts Number |
Factory Part # |
pF | TC | Current/Amps 1 MHz 10 MHz 30 MHz |
||
|---|---|---|---|---|---|---|
|
15 KVDC Rating P=CLEAN PULLOUT
|
||||||
| 570010-15P | HT574100 | 10 | NPO | |||
| 570012-15 | HT57Y120MA | 12 | NPO | 0.66 | 10.1 | 11.3 |
| 570018-15P | HT574180 | 18 | NPO | |||
| 570025-15 | HT57Y250KA | 25 | NPO | 1.66 | 11.5 | 12.5 |
| 570025-15P | HT57Y250KA | 25 | NPO | 1.66 | 11.5 | 12.5 |
| 570033-15 | HT57Y330MA | 33 | NPO | 1.85 | 11.7 | 12.7 |
| 570040-15P | HT57Y400 | 40 | NPO | 3.00 | 12.0 | 12.8 |
| 570050-15 | HT57Y500KA | 50 | NPO | 3.33 | 12.5 | 13.0 |
| 570050-15P | HT57Y500 | 50 | NPO | 3.33 | 12.5 | 13.0 |
| 510100-15 | 2DHT51Y101KAA | 100 | ||||
| 570100-15 | HT57Y101MA | 100 | N-750 | 3.8 | 11.1 | 13.7 |
| 570100-15P | HT57Y101MA | 100 | N-750 | 3.8 | 11.1 | 13.7 |
| 570200-15 | HT57Y201KA | 200 | N-750 | 5.1 | 12.5 | 15.0 |
| 570500-15 | HT57Y501MA | 500 | N4700 | 2.6 | 5.8 | 6.9 |
| 571000-15 | HH57Y122MA | 1000 | X5T | 2.1 | 3.8 | 5.1 |
570025-15P-10 Doorknob Capacitor, 25pf 15kv 10% (Pull)
In Stock
Removed from working equipment. 100% checked and meets factory specs.
- Capacitance: 50pf
- Peak Voltage: 15,000v
- Tolereance: 10%
Used
SKU: 570025-15-10-P
NOTE: Picture for reference only. Brand and Condition may vary.
570033-15 Doorknob Capacitor, 33pf 15kv, High Energy
In Stock
- 15KVdc Working Voltage
- Capacitance: 33pf
MFR: High Energy
SKU: 570033-15
570033-15P Doorknob Capacitor, 33pf 15kv (Pull)
Available on Backorder -- Please call 1-800-RFPARTS (1-800-737-2787) for availability.
This item will ship as soon as it becomes available.
570033-15P Capacitor Doorknob, 33pf 15kv (5%)
Used clean condition * No longer available for export
MFR: M.E.C. UK
SKU: 570033-15P
570040-15P Centralab Doorknob Capacitor, 40pf 15kv (Pull)
In Stock
570040-15P Doorknob Capacitor, 40pf 15kv
Used * No longer available for export
MFR: Centralab
SKU: 570040-15P
HT57Y500KA High Energy Doorknob Capacitor 50pf 15kv 10%
In Stock
- 15KVdc Working Voltage
- 35 kVA Max Power
MFR: High Energy
SKU: 570050-15

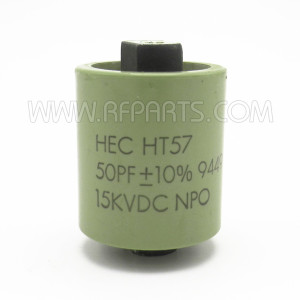

HT57 High Energy Doorknob Capacitor 50pf 15kv 10% (Pull)
In Stock
- 15KVdc Working Voltage
- Capacitance: 50pf
- Tolerance: 10%
Used * No longer available for export
MFR: High Energy
SKU: 570050-15-10-P

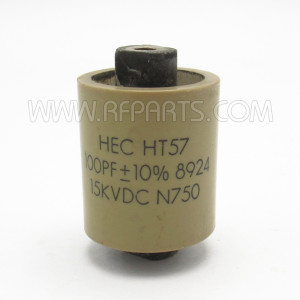

HT57 High Energy Doorknob Capacitor 100pf 15kv 10% (Pull)
In Stock
- 15KVdc Working Voltage
- Capacitance: 100pf
- Tolerance: 10%
Used
MFR: High Energy
SKU: 570100-15-10-P
580022-7 HI-Q Doorknob Capacitor 22pf 7.5kv 5% NPO (Pull)
In Stock
- Capaciance: 22pf
- Voltage: 7.5kv
- Tolerance: 5%
Used * No longer available for export
MFR: HI-Q
SKU: 580022-7-P
570025-15-2 MEC Doorknob Capacitor 25pf 15kv 2% (Pull)
In Stock
Used * No longer available for export
MFR: M.E.C.
Made in United Kingdom
SKU: 570025-15-2-P
580020-5 Centralab Doorknob Capacitor 20pf 5kv 10% (Pull)
In Stock
Used * No longer available for export
MFR: Centralab
SKU: 580020-5-P
