1/4" Heliax

 NOTE: CABLE IS SOLD BY THE FOOT.

(1 METER = 3.3 FEET)

List  Grid

per page
Set Descending Direction

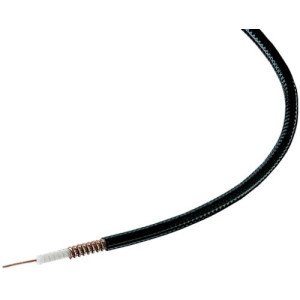

  1. FSJ1-50A CommScope® / Andrew HELIAX® Super Flexible 1/4" Low Density Foam Coaxial Cable

    FSJ1-50A CommScope® / Andrew HELIAX® Super Flexible 1/4" Low Density Foam Coaxial Cable

    Jacket Material: PE
    Outer Conductor Material: Corrugated copper
    Dielectric Material: Foam PE
    Flexibility: Super Flexible
    Inner Conductor Material: Copperclad Aluminum Wire
    Jacket Color: Black
    Cable Impedance 50 ohm ±1 ohm

    MFR: CommScope® / Andrew
    SKU: FSJ1-50A
    Sold by the Foot.

  2. FSJ1RK-50B - Andrew Heliax Superflex Fire Retardant Coax Cable

    FSJ1RK-50B - Andrew Heliax Superflex Fire Retardant Coax Cable

    FSJ1RK-50B, HELIAX® Superflexible Foam Coaxial Cable, corrugated copper, 1/4 in, black nonhalogenated, fire retardant polyolefin jacket.

    NOTE: THIS CABLE IS SPECIAL ORDER.  MINIMUM ORDER IS 500 FEET.  DELIVERY: 5-6 WEEKS ARO.

    Sold by the foot.



  3.  LDF1-50 CommScope® / Andrew Heliax® 1/4" Coaxial Cable

    LDF1-50 CommScope® / Andrew Heliax® 1/4" Coaxial Cable

    Dielectric Type: Low Density Foam Dielectric
    Dielectric Material: Polyethylene Foam
    Jacket Color: Black
    Jacket Material: Polyethelyne
    Outer Conductor Material: Corrugated Copper
    Inner Conductor Material:Copper-Clad Aluminum Wire
    Cable Impedance (ohms): 50.00
    Pressurizable: No

    MFR: Andrew/Commscope
    SKU: LDF1-50
    Sold by the Foot.

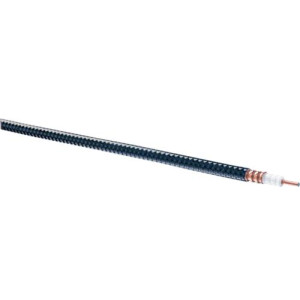

  4. LDF1RK-50 - 1/4" Fire Retardant Heliax Coax Cable

    LDF1RK-50 - 1/4" Fire Retardant Heliax Coax Cable

    LDF1RK-50, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/4 in, black, nonhalogenated, fire retardant jacket, MFR: Andrew /  Commscope

    NOTE:  Special order cable.  Normal delivery is 3-4 weeks ARO.  Minimum order requirement is 500 foot.

    Sold by the Foot

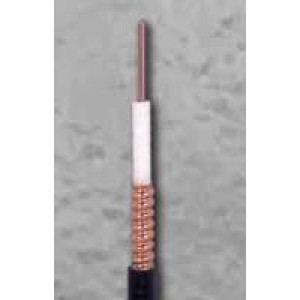

  5. EC1-50-HF Eupen 1/4" Hi-flex Foam Coax Cable

    EC1-50-HF Eupen 1/4" Hi-flex Foam Coax Cable

    Sold by the foot

    • Inner conductor
    Material:  copper clad aluminum
    Diameter, in (mm):  0.075 (1.9)
    • Dielectric
    Material: gas-injected cellular polyethylene
    Diameter, in (mm): 0.181 (4.6)
    • Outer conductor
    Material:  corrugated copper tube
    Diameter, in (mm): 0.252 (6.4)
    • Outer sheath
    Material: black polyethylene
    Thickness, in (mm): 0.022 (0.55)
    Diameter, in (mm): 0.295 (7.5)

    MFR: Eupen
    SKU: EC1-50HF

    For more info, please see the data sheet on file.

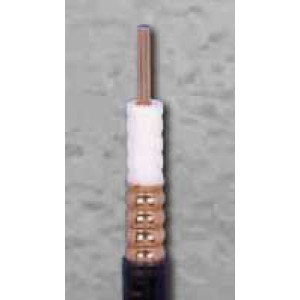

  6. EC1-50 Eupen 1/4" Standard Foam Coax Cable

    EC1-50 Eupen 1/4" Standard Foam Coax Cable

    Sold by the Foot

    • Inner conductor
    Material:  copper clad aluminum
    Diameter, in (mm):  0.075 (1.9)
    • Dielectric
    Material: gas-injected cellular polyethylene
    Diameter, in (mm): 0.181 (4.6)
    • Outer conductor
    Material:  corrugated copper tube
    Diameter, in (mm): 0.252 (6.4)
    • Outer sheath
    Material: black polyethylene
    Thickness, in (mm): 0.022 (0.55)
    Diameter, in (mm): 0.295 (7.5)

    MFR: Eupen
    SKU: EC1-50

    For more info, please see the data sheet on file.
