7/8" Heliax

 NOTE: CABLE IS SOLD BY THE FOOT.

(1 METER = 3.3 FEET)

List  Grid

per page
Set Descending Direction

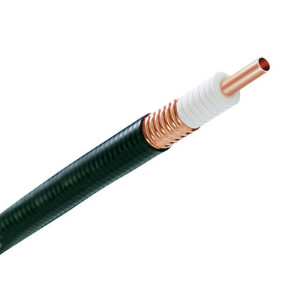

  1. AVA5P-50-C HELIAX® Andrew Virtual Air™ 7/8" Coaxial Cable (AVA5-50)

    AVA5P-50-C HELIAX® Andrew Virtual Air™ 7/8" Coaxial Cable (AVA5-50)

    7/8" HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, black PE jacket (Halogen free jacketing non-fire-retardant) tested C-Band and CBRS qualified. (AVA5-50)

    CommScope's HELIAX AVA5 and AVA6 C-band coaxial feeder cables deliver all the performance and value of the legacy HELIAX AVA products, with one important difference: Now, C-band has been enabled. Additionally, the AVA6 C-band coaxial feeder cable is uniquely optimized and tested to deliver a 0.5 dB gain in performance over AVA5-enabling MNOs to get even more from their C-band investment.

    Jacket Material: PE
    Outer Conductor Material: Corrugated copper
    Dielectric Material: Foam PE
    Flexibility: Standard
    Inner Conductor Material: Corrugated copper tube
    Jacket Color: Black
    Cable Impedance 50 ohm ±1 ohm

    All HELIAX coaxial cables are jacketed for direct burial or for corrosive environmental conditions. Standard jacketing material is weather-resistant polyethylene suitable for use in extreme climates.

    MFR: Commscope® / Andrew
    SKU: AVA5P-50-C
    Sold by the Foot.

  2. AVA5RK-50  7/8" Fire Retardant Heliax Coax Cable

    AVA5RK-50 7/8" Fire Retardant Heliax Coax Cable

    AVA5RK-50,  HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, 7/8 in, black non-halogenated, fire retardant polyolefin jacket B2ca- s1a, d1,a1

    NOTE: THIS CABLE IS SPECIAL ORDER FROM FACTORY.  NORMAL LEAD TIME IS 2-3 WEEKS ARO.

    MFR: Andrew /Commscope

    Sold by the Foot

  3. LDF5-50A  7/8" Heliax Coax Cable, Andrew

    LDF5-50A 7/8" Heliax Coax Cable, Andrew

    $7.95

    Out of stock

    LDF5-50A  HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 7/8 in, black PE jacket, MFR: Andrew

    Limited Quantity Available.  New old stock, Not for Export.  Please call our Sales Staff for available cable lengths.

    Sold by the Foot

  4. 78-HPT Andrew Manual Prep Tool for AVA5-50 Heliax Cable

    78-HPT Andrew Manual Prep Tool for AVA5-50 Heliax Cable

    $195.91

    You can use this tool for FXL780 and AVA5-50FX cable

    Tool Type: Manual Cable Prepartion Tool
    Includes: One AVA5-50 Tool Bit | One Cutting Tool Body | One FXL-780 Tool Bit | One Hex Wrench | Ten Saw Guides
    Application: Prepares Cables for Connector Attachment
    Material Type: Blade Hardened Tool Steel
    Material Type: Body Engineered Plastic
    Cutting Blade Life: 150 Cable Preparations
    Combination Blades Included: 2
    Jacket Blades Included: 1
    Nominal size: 7/8 in.
    Shipping weight: 0.59 lbs.
    Weight: 0.59 lbs

    MFR: Andrew / Commscope
    SKU: 78HPT

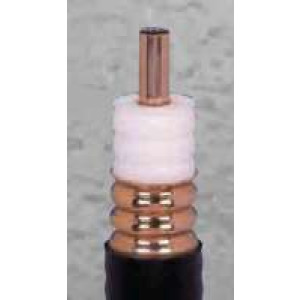

  5. EC5-50A Eupen 7/8" Standard Foam Coax Cable

    EC5-50A Eupen 7/8" Standard Foam Coax Cable

    Sold by the Foot

    • Inner conductor
    Material:  copper clad aluminum
    Diameter, in (mm):  0.36 (9.2)
    • Dielectric
    Material: gas-injected cellular polyethylene
    Diameter, in (mm): 0.93 (23.5)
    • Outer conductor
    Material:  corrugated copper tube
    Diameter, in (mm): 0.98 (25.0)
    • Outer sheath
    Material: black polyethylene
    Thickness, in (mm): 0.06 (1.4)
    Diameter, in (mm): 1.09 (27.8)

    MFR: Eupen
    SKU: EC5-50A

    For more info, please see the data sheet on file.

  6. F-78 Cable Prep Tool, 7/8" EC5-50, Eupen

    F-78 Cable Prep Tool, 7/8" EC5-50, Eupen

    $350.00

    Out of stock

    F-78 Cable Prep Tool, 7/8" EC5-50A Eupen Cable, MFR: Eupen



  7. LCF78-50JA RFS 7/8" Premium Attenuation Low-Loss Foam-Dielectric CELLFLEX® Cable

    LCF78-50JA RFS 7/8" Premium Attenuation Low-Loss Foam-Dielectric CELLFLEX® Cable

    LCF78-50JA CELLFLEX®  ELECTRICAL SPECIFICATIONS:

    Impedance, Ohm Ω 50 +/- 1
    Maximum Frequency GHz 5
    Velocity, percent % 88
    Capacitance pF/m (pF/ft) 74 (22.5)
    Inductance, uH/m (uH/ft) µH/m (µH/ft) 0.185 (0.056)
    Peak Power Rating kW 85
    RF Peak Voltage Volts 2920
    Jacket Spark Volt RMS 8000
    Return Loss (VSWR) Performance Standard or Premium according to B-Class
    Min. Return Loss (Max. VSWR) dB (VSWR) Standard 20 (1.222), Premium 24 (1.135)/ 23 (1.152)
    Temperature & Power Standard

    MFR: Radio Frequency Systems, Inc.
    SKU: LCF78-50JA-A0

    Note: Special Order.  Delivery is 4-5 weeks ARO.



7 Item(s)
