Connectors - Heliax Type (Andrew-Commscope/ RFS-Cablewave/ Eupen)

Please choose from the following HELIAX Sub-Catagory choices:

1/4" HELIAX CABLE

1/4" HELIAX CONNECTORS

3/8" HELIAX CABLE

3/8" HELIAX CONNECTORS

1/2" HELIAX CABLE

1/2" HELIAX CONNECTORS

5/8" HELIAX CABLE

5/8" HELIAX CONNECTORS

7/8" HELIAX CABLE

7/8" HELIAX CONNECTORS

1-1/4" HELIAX CABLE

1-1/4" HELIAX CONNECTORS

1-5/8" HELIAX CABLE

1-5/8" HELIAC CONNECTORS



List  Grid

per page
Set Descending Direction
  1. L4PNF-RC Andrew Type N Female RingFlare™ for 1/2" LDF4-50A Cable (NOS/NIB)

    L4PNF-RC Andrew Type N Female RingFlare™ for 1/2" LDF4-50A Cable (NOS/NIB)

    $24.91

    Body Style: Straight
    Cable Family: LDF4-50A
    Inner Contact Attachment Method: Captivated
    Inner Contact Plating: Gold
    Interface: N Female
    Mounting Angle: Straight
    Outer Contact Attachment Method: Ring-flare
    Outer Contact Plating: Trimetal
    Pressurizable: No

    New Old Stock * New In Box * No longer available for export
    MFR: Andrew - Made in Mexico
    Replaced by L4TNF-PS and L4TNF-PSA

    See Data Sheet

  2. L4TNM-PSA CommScope® / Andrew Type N Male Positive Stop™ for 1/2" AL4RPV-50, LDF4-50A, HL4RPV50 Cable

    L4TNM-PSA CommScope® / Andrew Type N Male Positive Stop™ for 1/2" AL4RPV-50, LDF4-50A, HL4RPV50 Cable

    $26.91 As low as: $24.91

    The L4TNM-PSA connector is a high-quality, reliable connector that is well-suited for use in a variety of telecommunications and RF applications.

    The connector is designed for use with 1/2" coaxial cables such as the AL4RPV-50, LDF4-50A, and HL4RPV50, which are commonly used in telecommunications and RF applications.

    Body Style: Straight
    Cable Family: AL4-50
    Harmonized System (HS) Code: 854420 (Coaxial cable and other coaxial electric conductors)
    Inner Contact Attachment Method: Captivated
    Inner Contact Plating: Silver
    Interface: N Male
    Mounting Angle: Straight
    Outer Contact Attachment Method: Ring-flare
    Outer Contact Plating: Trimetal

    MFR: CommScope® / Andrew
    SKU: L4TNM-PSA

    See Data Sheet

  3. L4TNF-PS Andrew Type N Female Positive Stop™ for 1/2" LDF4-50A Cable (NOS)

    L4TNF-PS Andrew Type N Female Positive Stop™ for 1/2" LDF4-50A Cable (NOS)

    $19.91

    Body Style: Straight
    Cable Family: LDF4-50A
    Inner Contact Attachment Method: Captivated
    Inner Contact Plating: Silver
    Interface: N Female
    Mounting Angle: Straight
    Outer Contact Attachment Method: Ring-flare
    Outer Contact Plating: Trimetal
    Pressurizable: No

    New Old Stock * No longer available for export
    MFR: Andrew
    Made in Mexico
    SKU: L4TNF-PS
    Replaced by L4TNF-PSA

    See Data Sheet

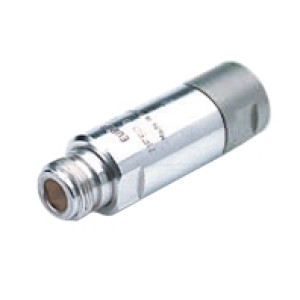

  4. NF50V12 Eupen Type-N Female Connector for EC4-50 Cable

    NF50V12 Eupen Type-N Female Connector for EC4-50 Cable

    $25.91 As low as: $22.73

    MFR: Eupen

    SKU: NF50V12

    NOTE: See DATA SHEET for more information

  5. 15566070 Type-N Male Connector, NM-LCF12-070, LCF12-50 Cable, Cablewave 5935-01-453-4781

    15566070 Type-N Male Connector, NM-LCF12-070, LCF12-50 Cable, Cablewave 5935-01-453-4781

    $21.91 As low as: $18.91

    15566070 Type-N Male Connector for LCF12-50J CableWave cable, NM-LCF12-070, NSN # 5935-01-453-4781 (Cellflex)

    MFR: Spinner for RFS

    SKU: 15566070

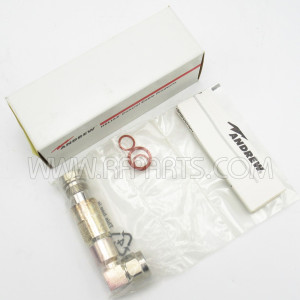

  6. L4PNR-HC Andrew Type N Male Right Angle for 1/2" LDF4-50A Cable (NOS/NIB)

    L4PNR-HC Andrew Type N Male Right Angle for 1/2" LDF4-50A Cable (NOS/NIB)

    $39.91

    Body Style: Right Angle
    Cable Family: LDF4-50A
    Inner Contact Attachment Method: Captivated
    Inner Contact Plating: Silver
    Interface: N Male
    Mounting Angle: Right angle
    Outer Contact Attachment Method: Self-flare
    Outer Contact Plating: Silver
    Pressurizable: No

    New Old Stock * New In Box * No longer available for export
    MFR: Andrew
    SKU: L4PNR-HC
    Replaced by L4TNR-HC

    See Data Sheet

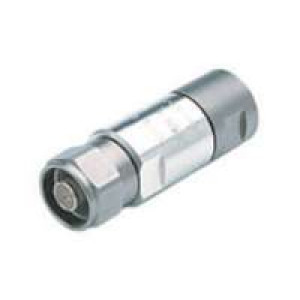

  7. NM50V12 Eupen Type-N Male connector for EC4-50 Cable

    NM50V12 Eupen Type-N Male connector for EC4-50 Cable

    $25.91 As low as: $22.73

    MFR: Eupen
    SKU: NM50V12

    NOTE: See DATASHEET For more information

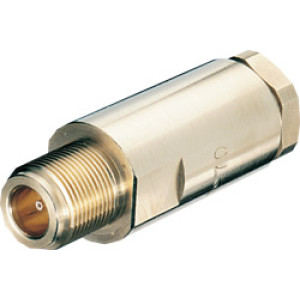

  8. L4NF Andrew Type N Female for 1/2" LDF4-50 Cable (NOS/NIB)

    L4NF Andrew Type N Female for 1/2" LDF4-50 Cable (NOS/NIB)

    $29.91

    Out of stock

    Interface: N Female
    Body Style: Straight
    Brand HELIAX®
    Mounting Angle: Straight
    Outer Contact Attachment Method: Self-flare
    Inner Contact Attachment Method: Solder
    Outer Contact Plating: Unplated
    Inner Contact Plating: Silver
    Attachment Durability: 25 cycles
    Interface Durability: 500 cycles
    Interface Durability Method: IEC 61169-16:9.5
    Pressurizable: No

    New Old Stock * New In Box * No longer availabloe for export
    MFR: Andrew
    SKU: L4NF

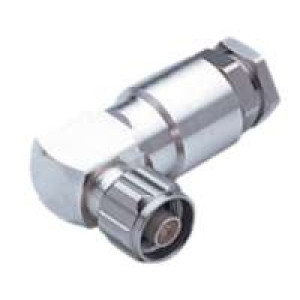

  9. NM50VL12 Eupen Type-N Male Right Angle Connector for EC4-50 Cable

    NM50VL12 Eupen Type-N Male Right Angle Connector for EC4-50 Cable

    $43.91 As low as: $40.39

    MFR: Eupen
    SKU: NM50VL12

    NOTE: See DATASHEET For more information

  10. L7PDF-RPC Andrew 7/16 DIN Female Connector for LDF7-50 Cable (NOS)

    L7PDF-RPC Andrew 7/16 DIN Female Connector for LDF7-50 Cable (NOS)

    $129.91

    Body Style: Straight
    Cable Family: LDF7-50A
    Inner Contact Attachment Method: Captivated
    Inner Contact Plating: Silver
    Interface: 7/16 DIN Female
    Mounting Angle: Straight
    Outer Contact Attachment Method: Ball clamp
    Outer Contact Plating: Trimetal
    Pressurizable: No

    No Original Box
    New Old Stock * No longer available for export
    MFR: Andrew - Made in USA
    SKU: L7PDF-RPC

    See Data Sheet

Items 101 to 110 of 223 total
