6L6GC / 5881 / 6L6WGB

The 6L6GC is the latest version of the 6L6 tube. This version has a 30 watt plate dissipation, 500V plate rating and 450V 5watt screen rating. If your amplifier calls for this tube, you probably CANNOT use some of the earlier 6L6 tubes as they are not rated this high.

This 5881 / 6L6WGB was first developed by TungSol for the US Military.  They are in short stubby glass envelopes.  There is no difference between the 6L6WGB or the 5881, they are the same tube.  The 5881 has a maximum plate rating of 360 volts at 23 watts and a maximum screen rating of 270 volts at 3 watts.   DO NOT USE IN AMPS CALLING FOR 6L6GC's.  They will likely melt down and damage your amp.

The 6L6GB have a plate rating of 360 volts, 19 watts and a screen rating of 270 volts and 2.5 watts They are in straight sided envelopes like 6L6GC's.

The 6L6G are Large ST (Coke Bottle) Shaped Tubes.   They have the same ratings as the 6L6GA/GB; 360 volts/19 watts plate and 270 volts/2.5 watts screen.

The 6L6 is the metal jacketed version of the 6L6 tube.   They have the same plate/screen ratings as the 6L6G/GA/GB.  The 1614 and 1622 are premium versions of the 6L6 that are rated for maximum output and longer life.

List  Grid

per page
Set Descending Direction
  1. 6L6GA National Union Vintage Beam Power Amplifier Tube (NOS)

    6L6GA National Union Vintage Beam Power Amplifier Tube (NOS)

    $39.91

    The 6L6 is designed with high power sensitivity and high efficiency for service in the output stages of AC receivers.
    They are capable of delivering an output at all power levels with a very low percentage of harmonic distortion.

    New Old Stock * No Longer available for export
    MFR: National Union
    SKU: 6L6GA-NU-NOS


  2. JAN-CHS-6L6GA Sylvania Black Plate Beam Power Amplifier Tube (NOS)

    JAN-CHS-6L6GA Sylvania Black Plate Beam Power Amplifier Tube (NOS)

    $39.91

    The 6L6GA is a beam power amplifier tetrode designed for use in the output stage of radio receivers or other equipment requiring high power output,
    power sensitivity and efficiency. The power output at all levels has low third and negligible higher-order harmonic distortion.

    New Old Stock * No longer available for export
    MFR: Sylvania
    SKU: JAN-CHS-BP-6L6GA-SYL

    Made in the USA

  3. JAN-CNU-6L6GA National Union Black Plate Beam Power Amplifier Tube (NOS)

    JAN-CNU-6L6GA National Union Black Plate Beam Power Amplifier Tube (NOS)

    $39.91

    The 6L6GA is a beam power amplifier tetrode designed for use in the output stage of radio receivers or other equipment requiring high power output,
    power sensitivity and efficiency. The power output at all levels has low third and negligible higher-order harmonic distortion.

    New Old Stock * No longer available for export
    MFR: National Union
    SKU: JAN-CNU-6L6GA-NU

    Made in the USA

  4. JAN-CHS-6L6GA Sylvania Black Plate Beam Power Amplifier Tube (Pull)

    JAN-CHS-6L6GA Sylvania Black Plate Beam Power Amplifier Tube (Pull)

    $29.91

    The 6L6GA is a beam power amplifier tetrode designed for use in the output stage of radio receivers or other equipment requiring high power output,
    power sensitivity and efficiency. The power output at all levels has low third and negligible higher-order harmonic distortion.

    Used * No longer available for export
    MFR: Sylvania
    SKU: JAN-CHS-6L6GA-SYL-P

    Made in the USA

  5. JAN-CHS-6L6GA Sylvania Black Plate Beam Power Amplifier Tube (LHP)

    JAN-CHS-6L6GA Sylvania Black Plate Beam Power Amplifier Tube (LHP)

    $33.91

    The 6L6GA is a beam power amplifier tetrode designed for use in the output stage of radio receivers or other equipment requiring high power output,
    power sensitivity and efficiency. The power output at all levels has low third and negligible higher-order harmonic distortion.

    Low Hour Pull * No longer available for export
    MFR: Sylvania
    SKU: JAN-CHS-6L6GA-LHP

    Made in the USA
  6. JAN-CLRV-6L6WGB General Electric Beam Power Amplifier (NOS)

    JAN-CLRV-6L6WGB General Electric Beam Power Amplifier (NOS)

    $89.91

    The 6L6GB is a beam pentode designed primarily for use in audio-frequency power amplifier applications.  The tube features high power sensitivity,
    high efficiency, and low third and higher-order harmonic distortion.

    New Old Stock * Not for Export * No longer available for export
    MFR: General Electric
    Made in Canada
    SKU: JAN-CLRV-6L6WGB-GE


  7. 6L6GB Raytheon Black Plate Beam Power Amplifier (Pull)

    6L6GB Raytheon Black Plate Beam Power Amplifier (Pull)

    $29.91

    The 6L6GB is a beam pentode designed primarily for use in audio-frequency power amplifier applications.  The tube features high power sensitivity, high efficiency, and low third and higher-order harmonic distortion.

    Used * No longer available for export
    MFR: Raytheon
    SKU: 6L6GB-BP-RAY-P

    Made in the USA

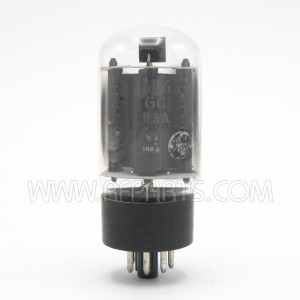

  8. 6L6GC General Electric Beam Power Amplifier Tube (LHP)

    6L6GC General Electric Beam Power Amplifier Tube (LHP)

    $59.91

    The 6L6GC is designed with high power sensitivity and high efficiency for service in the output stages of AC receivers.
    They are capable of delivering an output at all power levels with a very low percentage of harmonic distortion.

    Low Hour Pull * No longer available for export
    MFR: General Electric
    SKU: 6L6GC-GE-LHP

    Made in the USA

  9. 6L6GC RCA Beam Power Amplifier Tube (NOS/NIB)

    6L6GC RCA Beam Power Amplifier Tube (NOS/NIB)

    $149.91

    The 6L6GC is designed with high power sensitivity and high efficiency for service in the output stages of AC receivers.
    They are capable of delivering an output at all power levels with a very low percentage of harmonic distortion.

    New Old Stock * New In Box * No longer available for export
    MFR: RCA
    SKU: 6L6GC-RCA

    Made in the USA

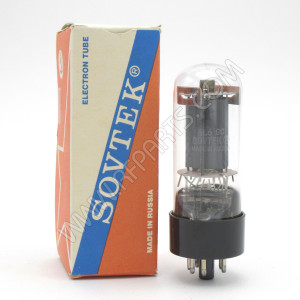

  10. 6L6GC Sovtek Beam Power Amplifier Tube (NOS/NIB)

    6L6GC Sovtek Beam Power Amplifier Tube (NOS/NIB)

    $49.91

    The 6L6GC is designed with high power sensitivity and high efficiency for service in the output stages of AC receivers.
    They are capable of delivering an output at all power levels with a very low percentage of harmonic distortion.

    New Old Stock * New In Box * No longer available for export
    MFR: Sovtek
    Made in Russia
    SKU: 6L6GC-SOV

    Made in the USA
