Wattmeters & VSWR Meters
Please choose from the following WATTMETER Sub-Catagory choices:
|
Wattmeter Elements / Bird & Coaxial Dynamics
|
||
Line Sections / Directional Couplers |
||
|
|
||
|
|
-
BIRD4410A Wattmeter Multipower +/-5% Accuracy (Pull)
Regular Price: $650.91
Special Price $585.00
-
4410A Bird Wattmeter Multipower +/-5% Accuracy (NOS)
$989.91The wattmeter has the basic principles and “look and feel” of the Model 43 but transforms it into a highly accurate high dynamic range instrument. The mirrored-scale linear range meter has 2 switchable ranges, 0-1 and 0-3.
Power is read as a multiple of the value indicated by the pointer, the decimal point location depending upon the range switch position and the factor printed on the plug-in element. Power ranges covered by individual elements are 2 mW to 10 W, 20 mW to 100 W, 200 mW to 1 KW and 2 W to 10 KW, full scale. For most elements, accuracy is +/-5% anywhere above 20% of full scale. The circuitry operates from a standard 9V alkaline battery.
New Old Stock * No longer available for exportMFR: Bird Electonic CorporationSKU: BIRD4410AMade in the USA -
43 Bird Wattmeter with UHF Female QC Connectors (Pull)
$439.91 -
4308-2 Bird Wattmeter (Pull)
$575.00 -
4308-1 Bird Wattmeter Cellular Specialist (Pull)
Regular Price: $649.95
Special Price $599.95
-

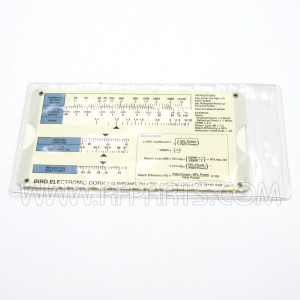

4400-SR Bird Vintage VSWR Slide Rule Forward vs. Reflected Power (Pull)
$14.91 -
4410A Bird Multipower RF Wattmeter Kit (Pull)
$1,279.91Includes 4410A Bird Wattmeter, Calibrated Elements, and Original Carrying Case
Elements Included: 4410-4 (2-30MHz), 4410-5 (25-80MHz), 4410-6 (50-200MHz), and 4410-7 (144-520MHz)
Meter and Elements were calibrated and paired in 2000
Used * No longer available for export
MFR: Bird Electronics, USA
SKU: 4410A-Kit-PMade in the USA -
43P BIRD PEP Thruline RF Wattmeter with Type-N Connectors and Peak Power (Pull)
$575.91- Accurate CW field power measurement over 450 kHz to 2.7 GHz and 100 mW to 10 KW.
- Uses industry standard Bird elements with space to store 2 additional within the meter housing
- Rugged metal housing for the most demanding environments
- Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
Used * No onger available for export
MFR: Bird Electronics, USA
SKU: Bird43PN-P -
4410A Bird Wattmeter Multipower +/-5% Accuracy (Pull)
$806.91 -
4721 Bird Meter Housing 100ua 5/10/25 KW Scales (Pull)
$414.91
