Attenuators
Please choose from the following ATTENUATOR Sub-Catagory choices:
NOTE: Attenuation expressed in decibels of relative power.
A 3 dB pad reduces power to one half, 6 dB to one fourth, 10 dB to one tenth, 20 dB to one hundredth, 30 dB to one thousandth and so on. For voltage you double the dBs so for example 6 dB is half in voltage.
EXAMPLE: Calculating 50 Watt Attenuator into dB:
3db: 50 x 0.50 = 25 watt; 6db: 50 x 0.25 = 12.5 watt; 10db: 50 x 0.10 = 5 watt; 20db: 50 x 0.01 = 0.5 watt; 30db: 50 x 0.001 = 0.05 watt; 40db: 50 x 0.0001 = 0.005 watt.

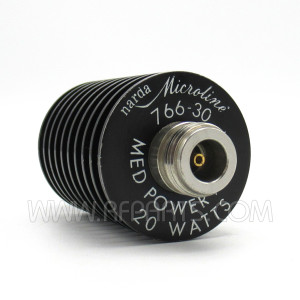

766-30 Narda 30dB 20watt DC-4GHz 50 Ohm N-Male to N-Female Medium Power Attenuator (Pull)
In Stock
These parts are clean used parts tested to factory spec. Picture is for reference. Cosmetic condition will vary slightly.
- VSWR: 1.35 Maximum
- Average Power: 20 Watts
- Attenuation: 30dB Nominal
- Peak Power: 1 Kilowatt
Clean used * No longer available for export
MFR: Narda
SKU: 766-30-P
391-7 Midwest Microwave 7dB 10w DC-12.4GHz Fixed Attenuator (Pull)
In Stock
- Frequency Range: DC-12.4GHz
- Attenuation: 10dB Nominal
- Power : Average - 2 W Max
Used * No longer available for export
MFR: Midwest Microwave
SKU: 391-7-P
Note: Picture is for reference only
391-30 Midwest Microwave 30dB 5w DC-12.4GHz Type-N Fixed Attenuator (Pull)
In Stock
- Frequency Range: DC-12.4GHz
- Attenuation: 30dB Nominal
- Power : Average - 5w Max
Used * No longer available for export
MFR: Midwest Microwave
SKU: 391-30-P
Note: Picture is for reference only

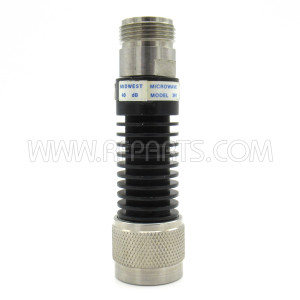

391-40 Midwest Microwave 40dB 5w DC-12GHz Type-N Fixed Attenuator (Pull)
In Stock
- Frequency Range: DC-12GHz
- Attenuation: 40dB Nominal
- Power : Average - 5w Max
Used * No longer available for export
MFR: Midwest Microwave
SKU: 391-40-P
Note: Picture is for reference only

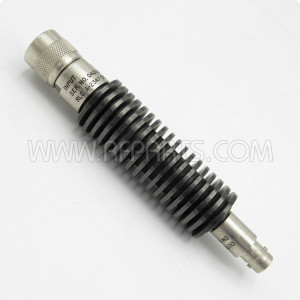

A-2347 RLC Type-C Male to BNC Female Fixed Coaxial Attenuator 55dB SPL (Pull)
In Stock
- Frequency range:: DC-4GHz
- Attenuation:: 55 dB
- Impedance: 50 OHMS
Used * No longer available for export
MFR: RLC
SKU: A-2347-P

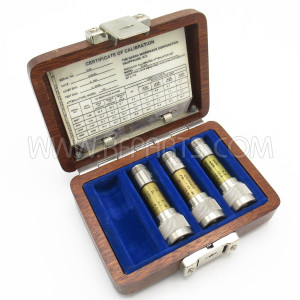

120A/4 Narda Precision Calibrated Attenuation Set 2 Watt DC-18GHz (Pull)
In Stock
This set is missing one attenuator
Connector: Type-N Male/Female
Attenuators included:
- 779-6
- 779-10
- 779-20
Clean Used * No longer available for export
MFR: Narda
SKU: 120A/4-P

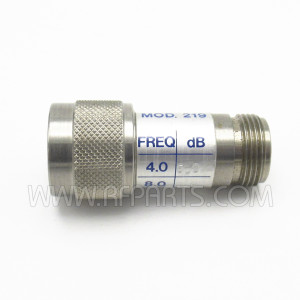

Model 219 Midwest Microwave 6db 2w DC-18GHz Type-N Fixed Attenuator (Pull)
In Stock
- Frequency Range: DC-4GHz to DC18Ghz
- Attenuation: 6dB Nominal
- Power : Average - 2w
Used * No longer available for export
MFR: Midwest Microwave
SKU: 219-6-P

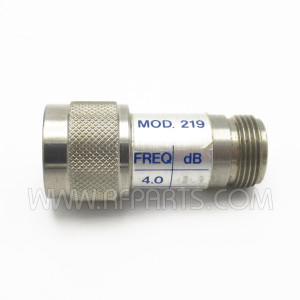

Model 219 Midwest Microwave 3db 2w DC-18GHz Type-N Fixed Attenuator (Pull)
In Stock
- Frequency Range: DC-4GHz to DC18Ghz
- Attenuation: 3dB Nominal
- Power : Average - 2w
Used * No longer available for export
MFR: Midwest Microwave
SKU: 219-3-P

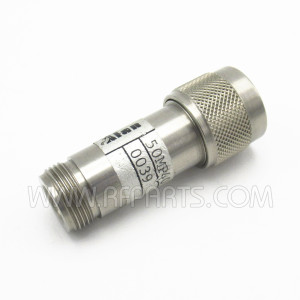

50MP40-0039 Alan Type-N Male/Female Fixed Attenuator 12.4 GHz 40dB (Pull)
In Stock
- Attenuation accuracy reference frequency: 12.4 gigahertz
- Frequency range: 0.000 HZ to12.400 GHz
- Input impedance rating in ohms: 50.0
- Rf signal attenuation in decibels: 40.0
Used * No longer available for export
MFR: Alan Industries, Inc.
SKU: 50MP40-0039-P
50P-046 JFW Programable Attenuator 70dB (NOS)
In Stock
A programmable attenuator is a variable attenuator with a specific dB step size and total attenuation. 50 Ohm impedance with electro-mechanical relay design.
- Max Attenuation: 70dB
- dB Step: 10 / 20
New Old Stock * No longer available for export
MFR: JFW Industries, Inc.
SKU: 50P-046
