Attenuators
Please choose from the following ATTENUATOR Sub-Catagory choices:
NOTE: Attenuation expressed in decibels of relative power.
A 3 dB pad reduces power to one half, 6 dB to one fourth, 10 dB to one tenth, 20 dB to one hundredth, 30 dB to one thousandth and so on. For voltage you double the dBs so for example 6 dB is half in voltage.
EXAMPLE: Calculating 50 Watt Attenuator into dB:
3db: 50 x 0.50 = 25 watt; 6db: 50 x 0.25 = 12.5 watt; 10db: 50 x 0.10 = 5 watt; 20db: 50 x 0.01 = 0.5 watt; 30db: 50 x 0.001 = 0.05 watt; 40db: 50 x 0.0001 = 0.005 watt.
352-097-003 Ultimate Source Type-N Male/Female Attenuator 3dB 2W (NOS)
In Stock
- NIckel Plated
- Peak Power: 2 Watts
- Decibels: 3dB
- Connector: Type-N Male/Female
New Old Stock * No longer available for export
MFR: Ultimate Source
SKU: 352-097-003

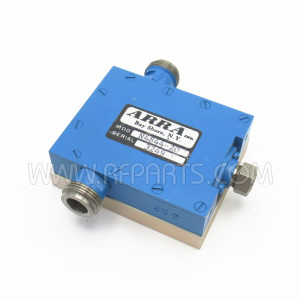

N0682-20 ARRA 1 Watt DC to 100 MHz 20 dB Continuously Variable Attenuator (Pull)
In Stock
- Frequency: DC to 100 MHz
- Attenuation Range: 20 dB
- Power: 1 W
- Impedance: 50 Ohms
Used * No longer available for export
MFR: ARRA Inc.
SKU: N0682-20-P

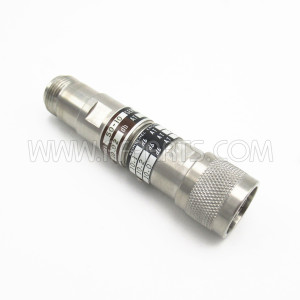

50-10 Weinschel Type-N Attenuator 10dB DC-3Ghz (NOS)
In Stock
- Impedance: 50 Ohms
- Frquency Range: DC to 3 GHz
- Input Power: 1 Watt average maximum
New Old Stock
MFR: Weinschel Engineering
SKU: 50-10-WE

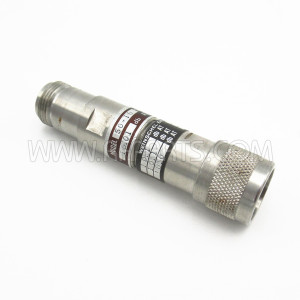

50-10 Weinschel Type-N Attenuator 10dB DC-3Ghz (Pull)
In Stock
- Impedance: 50 Ohms
- Frquency Range: DC to 3 GHz
- Input Power: 1 Watt average maximum
Used
MFR: Weinschel Engineering
SKU: 50-10-WE-P

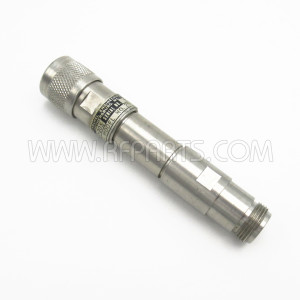

50-20S Weinschel Type-N Attenuator 20dB DC-3Ghz (Pull)
In Stock
- Impedance: 50 Ohms
- Frquency Range: DC to 3 GHz
- Input Power: 1 Watt average maximum
Used
MFR: Weinschell Engineering
SKU: 50-20S-WE-P

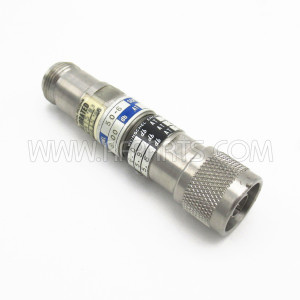

50-6 Weinschel Type-N Attenuator 6dB DC-3Ghz (NOS)
In Stock
- Impedance: 50 Ohms
- Frquency Range: DC to 3 GHz
- Input Power: 1 Watt average maximum
New Old Stock
MFR: Weinschel Engineering
SKU: 50-6-WE

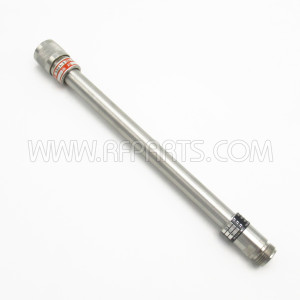

530A-3 Weinschel Type-N Attenuator 3dB DC-0.6-10Ghz (NOS)
In Stock
- Impedance: 50 Ohms
- Frquency Range: DC 0.6-10GHz
- Input Power: 5 Watt average
New Old Stock
MFR: Weinschel Engineering
SKU: 530A-3-WE

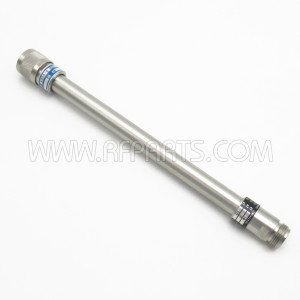

530A-6 Weinschel Type-N Attenuator 6dB DC-1-10Ghz (NOS)
In Stock
- Impedance: 50 Ohms
- Frquency Range: DC 1-10GHz
- Input Power: 3 Watt average
New Old Stock
MFR: Weinschel Engineering
SKU: 530A-6-WE

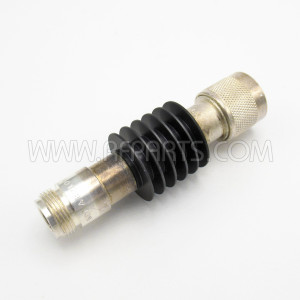

A8210N KDI Type-N Male/Female Attenuator 10dB 10W (NOS)
In Stock
- Silver Plated
- Peak Power: 10 Watts
- Decibels: 10dB
- Connector: Type-N Male/Female
New Old Stock * No longer available for export
MFR: KDI Electronics
SKU: A8210N
8323 Bird Tenuline® Oil Filled Attenuator 100 watts with QC Type-N Female Connectors (NOS/NIB)
In Stock
- Power Rating: 100w continuous
- Frequency Range & VSWR: Input 1.1 max DC to 500 MHz
- Attenuation: 30 db
New Old Stock * New In Box * No longer vailable for export
MFR: Bird Electronics
SKU: BIRD8323
NOTE: Picture for reference only. This attenuator is no longer produced by Bird Electronics.
