Attenuators
Please choose from the following ATTENUATOR Sub-Catagory choices:
NOTE: Attenuation expressed in decibels of relative power.
A 3 dB pad reduces power to one half, 6 dB to one fourth, 10 dB to one tenth, 20 dB to one hundredth, 30 dB to one thousandth and so on. For voltage you double the dBs so for example 6 dB is half in voltage.
EXAMPLE: Calculating 50 Watt Attenuator into dB:
3db: 50 x 0.50 = 25 watt; 6db: 50 x 0.25 = 12.5 watt; 10db: 50 x 0.10 = 5 watt; 20db: 50 x 0.01 = 0.5 watt; 30db: 50 x 0.001 = 0.05 watt; 40db: 50 x 0.0001 = 0.005 watt.
2D5W-03 Aeroflex Fixed Attenuator 7/16 DIN Male / Female 5 Watts 3dB
In Stock
Connector: 7/16 DIN Male/Female
Frequency: DC 2.5 GHz
Ohm: 50
Body: Passivated Stainless Steel
Housing: Anodized Aluminum
MFR: Aeroflex
SKU: 2D5W-03
2D5W-20 Aeroflex Fixed Attenuator 7/16 DIN Male/Female 5 watt 20dB
In Stock
Connector: 7/16 DIN Male/Female
Frequency: DC-2.5 GHz
Ohm: 50
Body: Passivated Stainless Steel
Housing: Anodized Aluminum
MFR: Aeroflex
SKU: 2D5W-20
2D5W-10 Aeroflex Fixed Attenuator 7/16 DIN Male/Female 5 Watt 10dB
In Stock
Connector: 7/16 DIN Male/Female
Frequency: DC-2.5 GHz
Ohm: 50
Body: Passivated Stainless Steel
Housing: Anodized Aluminum
MFR: Aeroflex
SKU: 2D5W-10
2D5W-30 Aeroflex Fixed Attenuator 7/16 DIN Male/Female 5 watt 30dB
In Stock
Connector: 7/16 DIN Male/Female
Frequency: DC-2.5 GHz
Ohm: 50
Body: Passivated Stainless Steel
Housing: Anodized Aluminum
MFR: Aeroflex
Made in USA

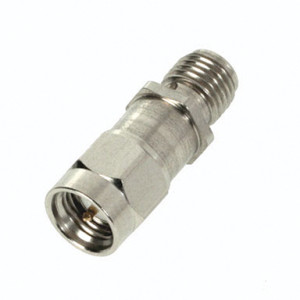

AHC-6 Inmet Fixed Attenuator 2w 6dB SMA Male-Female
In Stock
Connectors: SMA Male - Female
Frequency: DC-6 GHz
Ohms: 50
Watts: 2 watt average
Attenuation: 6 dB nominal
Body: Passivated Stainless Steel
MFR: Inmet
SKU: AHC-6
AHC-3 Inmet Attenuator SMA Male to SMA Female 2w 3dB
In Stock
Connector: SMA Male/Female
Freq: DC-6 GHz
Ohm: 50
Body: Passivated Stainless Steel
MFR: Inmet
SKU: AHC-3
A-18-10-N RLC Electronics 10dB 2w DC-18Ghz Fixed Attenuator Type-N Male/Female (Pull)
In Stock
- Frequency Range: DC-18GHz
- Attenuation: 10dB Nominal
- Power : Average - 2 W Max
Used * No longer available for export
MFR: RLC Electronics
SKU: A-18-10-N-P

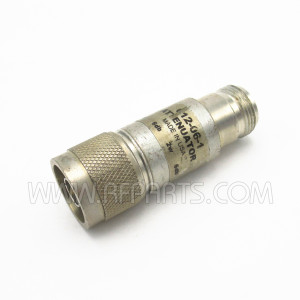

612-04-1/R Meca Attenuator 2 watt 4GHz (Pull)
In Stock
- Frequency: 2.0 - 4.0 GHz
- Average Power: 2 Watts
- Atenuation 4 dB
Used * No longer available for export
MFR: Meca
SKU: 612-04-1/R-P
3082-4010-03 Fixed Attenuator,Type-N Male/Female 3dB, 2 Watt, Omni Spectra
In Stock
Fixed Attenuator, Type-N Male/Female, 3dB, 2 Watt, DC - 3 GHz, MFR: Omni Spectra No longer available for Export
SKU: 3082-03
605-6-1 Meca Attenuator 2 watt 6GHz (Pull)
In Stock
- Frequency: 6.0 GHz
- Average Power: 2 Watts
- Peak Power: 250 watta
- Atenuation 6 dB
- Attenuation Tolerance: ±0.3
Used * No longer available for export
MFR: Meca
SKU: 605-6-1-P
