Connectors - Heliax Type (Andrew-Commscope/ RFS-Cablewave/ Eupen)

Connector Impedance 50 ohm
RF Operating Voltage, maximum (vrms) 707.00 V
dc Test Voltage 2300 V
Peak Power, maximum 10.00 kW

MFR: Andrew / Commscope
SKU: F2TNM-PL

Connector 7/16 DIN Male, Straight Hex Nut, FSJ2-50 Heliax Cable
MFR: Andrew/CommScope
SKU: F2TDM-PL

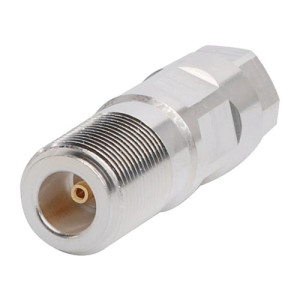

Type-N Female Connector, FSJ2-50, Straight Heliax Cable
MFR: Andrew/CommScope
SKU: F2PNF-C

For cable types: FSJ2-50
Ohms: 50
Body: Nickel
Center Pin: Gold
Dielectric: PTFE

MFR: Andrew/Commscope

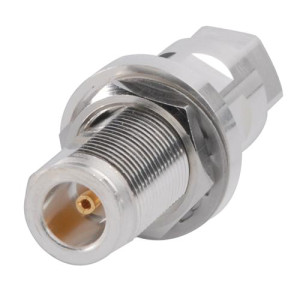

SKU: F2PNF-BH

NOTE:  The F2PNF-BH is no longer available from the factory.  We have some pre-made cable assemblies with this connector installed.  We are offering them on special.  Each cable has an additional connector installed on the other side.  You can remove this connector and install any available connector for this cable.  See "We also Recommend" in our information section.  These cables are available in stock.

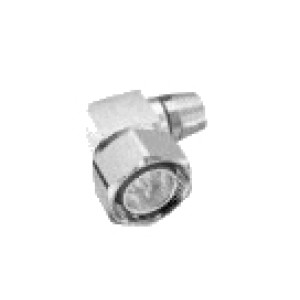

7/16 DIN Male Right Angle, FSJ2-50 Connector, Hex Nut, Heliax Cable
MFR: Andrew/CommScope
SKU: F2PDR-C

For FSJ1-50 cable.

General Specifications
Interface: TNC Male
Body Style: Straight
Brand: HELIAX®
Mounting Angle: Straight

MFR: Andrew / Commscope
SKU: F1TTM-C

F1TDM-C 7/16 DIN Male Connector for 1/4 in FSJ1-50A cable (Good to 6 GHz), MFR: Andrew / Commscope

F1TNR-HC Right Angle Type-N Male Connector for FSJ1-50A Cable

MFR: Andrew / Commscope
SKU: F1TNR-HC

F1TSF-BH SMA Female Bulkhead Connector, FSJ1-50A (Good to 18 GHz)

MFR: Andrew / Commscope
SKU: F1TSF-BH
