Connectors - Heliax Type (Andrew-Commscope/ RFS-Cablewave/ Eupen)

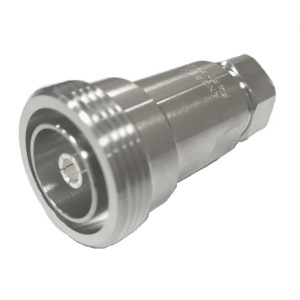

716F12S  7/16 DIN Female Connector for FSJ4-50B 1/2" Superflex Heliax

• Body: Nickel / Silver
• Pin: Silver
• Dielectric: PTFE

New Old Stock * No longer available for export
MFR: Huber Suhner
SKU: 16716-50-9-5/003-E

Includes butyl rubber tape and PVC tape
For 1/4"-1-5/8" Heliax
MFR: Andrew
NSN: 5970-01-425-7058
SKU: 221213

• Interface N Male
• Body Style Straight
• Mounting Angle Straight
• Connector Impedance 50 ohm
• Operating Frequency Band 0 – 18000 MHz
• Average Power 0.4 kW @ 900 MHz
• Peak Power, maximum 6.40 kW
• Shielding Effectiveness -110 dB

MFR: Andrew / Commscope
SKU: F1TNM-HC

• Cable Impedance: 50 ohm
• Outer Contact Plating: Silver
• Inner Contact Plating: Gold

MFR: Andrew  / Commscope
SKU: F1PNM-HF

Connector Impedance 50 ohm
RF Operating Voltage, maximum (vrms) 707.00 V
dc Test Voltage 2300 V
Peak Power, maximum 10.00 kW

MFR: Andrew / Commscope
SKU: F2TNM-PL

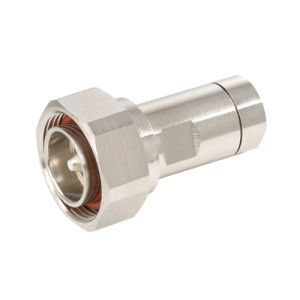

Connector 7/16 DIN Male, Straight Hex Nut, FSJ2-50 Heliax Cable
MFR: Andrew/CommScope
SKU: F2TDM-PL

Type-N Female Connector, FSJ2-50, Straight Heliax Cable
MFR: Andrew/CommScope
SKU: F2PNF-C

For cable types: FSJ2-50
Ohms: 50
Body: Nickel
Center Pin: Gold
Dielectric: PTFE

MFR: Andrew/Commscope
SKU: F2PNF-BH

NOTE:  The F2PNF-BH is no longer available from the factory.  We have some pre-made cable assemblies with this connector installed.  We are offering them on special.  Each cable has an additional connector installed on the other side.  You can remove this connector and install any available connector for this cable.  See "We also Recommend" in our information section.  These cables are available in stock.
