Connectors - Heliax Type (Andrew-Commscope/ RFS-Cablewave/ Eupen)

F1MU Andrew Mini-UHF Connector for 1/4" Superflex FSJ1-50

MFR: Andrew / Commscope
SKU: F1MU

Body Style: Right angle
Inner Contact Attachment Method: Captivated
Inner Contact Plating: Silver
Interface: 4.1-9.5 DIN Male
Mounting Angle: Right angle
Outer Contact Attachment Method: Self-flare
Outer Contact Plating: Silver
Pressurizable: No

End of Life - Replaced by F4PKR-A
New Old Stock * New In Box * No longer available for export
MFR: Andrew * Vintage * Made in USA
SKU: F4PKR-C

See Data Sheet

Interface: 7/16 DIN Male
Body Style: Straight
Brand: HELIAX®
Mounting Angle Straight
Outer Contact Attachment Method: Crush-flare
Inner Contact Attachment Method: Captivated
Outer Contact Plating: Trimetal
Inner Contact Plating: Silver
Attachment Durability: 25 cycles
Interface Durability: 500 cycles
Interface Durability Method: IEC 61169-4:9.5
New Old Stock * New In Box * No longer available for export
MFR: Andrew * Vintage - Made in USA
SKU: F4PDM-C

Replaced by F4PDMV2-C

F1TDF 7/16 Din Female For FSJ1

F4PNF-BH Type-N Female Bulkhead, FSJ4-50B Bulkhead for FSJ4-50B Heliax cable

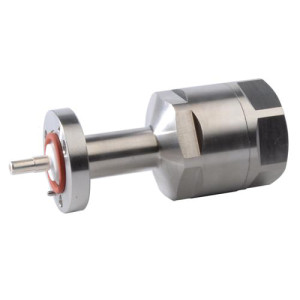

AL7E78-PS 7/8 in EIA Flange Positive Stop™ for 1-5/8 in AVA7-50, AL7-50 and LDF7-50A coaxial cable, MFR: Andrew / Commscope

• Connector Impedance: 50 ohm
• Operating Frequency Band: 0 – 3300 MHz
• Shielding Effectiveness: -130 dB
• Outer Contact Plating: Trimetal
• Inner Contact Plating: Silver

MFR: Andrew
SKU: L6TDM-PS

Body Style: Straight
Cable Family: FSJ4-50B
Inner Contact Attachment Method: Captivated
Inner Contact Plating: Silver
Interface: 7/16 DIN Female
Mounting Angle: Straight
Outer Contact Attachment Method: Self-flare
Outer Contact Plating: Trimetal
Pressurizable: No

MFR: Andrew - Made in Mexico
SKU: F4PDF-C

Connector Impedance: 50 ohm
Operating Frequency Band: 0 – 10200 MHz
Cable Impedance: 50 ohm
dc Test Voltage: 2000 V
Average Power: 0.6 kW @ 900 MHz
Peak Power, maximum: 10.00 kw

MFR: Andrew
SKU: F4NR-HC
