MRF400 Series

MRF4427-APT, MRF486MP, MRF450MQ, MRF454AMQ, SRF3775 /MRF455 Transistor, 12 v, motorola, MRF429MQ Transistor, 50 volt, mquad, MRF448MQ Transistor, 50 volt, mquad, MRF492MQ Transistor, 12 volt, mquad, MRF486 Transistor, 12 volt, MRF454A Transistor, 12 volt, SRF7000-90 Transistor, 12 volt (MRF455), MRF448MP-MOT Transistor, 50 volt, mpair, MRF433 Transistor, , MRF479MP Transistor, 12 volt, mpair, MRF453AMP Transistor, 12 volt, mpair

List  Grid

per page
Set Descending Direction
  1. MRF4427 Microsemi RF & Microwave Discrete Low Power Transistor 20dB 200 MHz (NOS)

    MRF4427 Microsemi RF & Microwave Discrete Low Power Transistor 20dB 200 MHz (NOS)

    $1.91

    Designed for general-purpose RF amplifier applications, such as; pre-drivers, Oscillators, etc.

    • Low Cost SO-8 Plastic Surface Mount Package.
    • S-Parameter Characterization
    • Tape and Reel Packaging Options Available
    • Low Voltage Version of MRF3866
    • Maximum Available Gain – 20dB(typ) @ 200MHz

    New Old Stock * No longer available for export
    MFR: Microsemi
    SKU: MRF4427-MSC

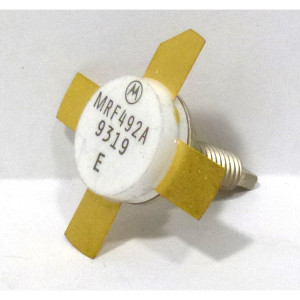

  2. MRF492A Motorola NPN Silicon RF Power Transistor Stud Mount 50 MHz 70W 12.5V (NOS)

    MRF492A Motorola NPN Silicon RF Power Transistor Stud Mount 50 MHz 70W 12.5V (NOS)

    $128.91

    Silicon RF Power Transistor Stud Mount 50 MHz 70W 12.5V
    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF492A

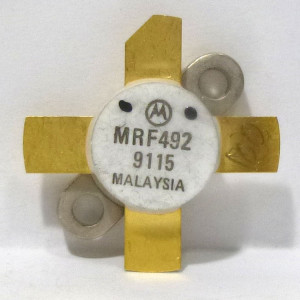

  3. MRF492 Motorola NPN Silicon RF Power Transistor 50 MHz 70W 12.5V Mixed lots (NOS)

    MRF492 Motorola NPN Silicon RF Power Transistor 50 MHz 70W 12.5V Mixed lots (NOS)

    $52.91

     Designed for 12.5 volt low band VHF large-signal power amplifier applications in commercial and industrial FM equipment.

    • Specified 12.5 V, 50 MHz Characteristics: Output Power= 70 W, Minimum gain= 11 dB, Efficiency= 50%
    • limited Stock on hand, misc. mixed lot / DC and beta code

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF492

  4. MRF486 Motorola NPN Silicon RF Power Transistor 28 Volt 30 MHz (NOS)

    MRF486 Motorola NPN Silicon RF Power Transistor 28 Volt 30 MHz (NOS)

    $79.91

    Out of stock

    Designed primarily for application as a high-power linear amplifier from 1.5 to 30 MHz, in single sideband mobile, marine, and base station equipment.

    • Common-Emitter TO0220AB Package
    • 28 Volt, 30MHz
    • Output Power: 40 Watts (PEP)
    • Power Gain: 15 dB Minimum
    • Efficiency: 40% Minimum
    • 30:1 VSWR

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF486

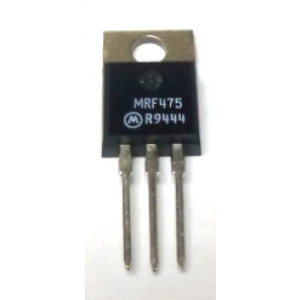

  5. MRF475 Motorola NPN Silicon Power Transistor 12W 30 MHz 13.6V (NOS)

    MRF475 Motorola NPN Silicon Power Transistor 12W 30 MHz 13.6V (NOS)

    $19.91

    Designed Primarily for use in single sideband linear amplifier output applications in citizens band and other communications equipment operating to 30 MHz.

    • Specified 13.6 V, 30 MHz characteristics: Output power = 12 W (PEP), Minimum Power gain = 10 dB (PEP AND CW), Minimum Efficiency = 40% (SSB), Miniumum Efficiency= 50% (CW)

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF475

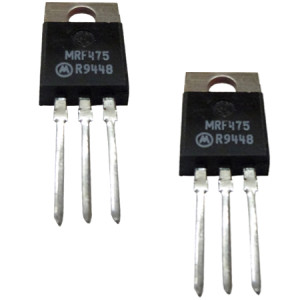

  6. MRF475 Motorola NPN Silicon Power Transistor 12W 30 MHz 13.6V Matched Pair (2) (NOS)

    MRF475 Motorola NPN Silicon Power Transistor 12W 30 MHz 13.6V Matched Pair (2) (NOS)

    $39.91

    Designed Primarily for use in single sideband linear amplifier output applications in citizens band and other communications equipment operating to 30 MHz.

    • Specified 13.6 V, 30 MHz characteristics: Output power = 12 W (PEP), Minimum Power gain = 10 dB (PEP AND CW), Minimum Efficiency = 40% (SSB), Miniumum Efficiency= 50% (CW)

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF475MP

  7. MRF476 Motorola NPN Silicon Power Transistor 3.0W 50 MHz 12.5V (NOS)

    MRF476 Motorola NPN Silicon Power Transistor 3.0W 50 MHz 12.5V (NOS)

    $33.91

    NPN Silicon Power Transistor 3.0W 50 MHz 12.5V
    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF476

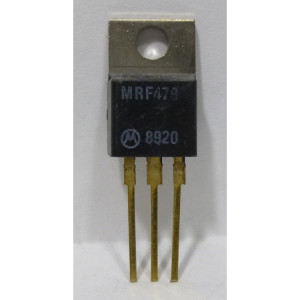

  8. MRF479 Motorola NPN Silicon Power Transistor 15W 30 MHz 12.5V (NOS)

    MRF479 Motorola NPN Silicon Power Transistor 15W 30 MHz 12.5V (NOS)

    $19.91

    Designed Primarily for use in single sideband linear amplifier output applications in citizens band and other communications equipment operating to 50 MHz.

    • Specified 12.5 V, 30 MHz characteristics: Output power = 15 W (PEP AND CW), Minimum Power gain = 12 dB, Minimum Efficiency = 40%
    • Intermodulation Distortion at 15 W (PEP)= -30 dB (Max)

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF479

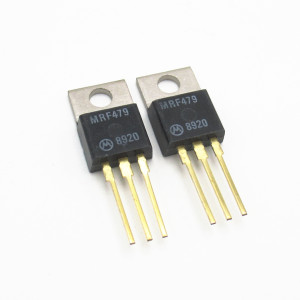

  9. MRF479 Motorola NPN Silicon Power Transistor 15W 30 MHz 12.5V Matched Pair (2) (NOS)

    MRF479 Motorola NPN Silicon Power Transistor 15W 30 MHz 12.5V Matched Pair (2) (NOS)

    $39.91

    Designed Primarily for use in single sideband linear amplifier output applications in citizens band and other communications equipment operating to 50 MHz.

    • Specified 12.5 V, 30 MHz characteristics: Output power = 15 W (PEP AND CW), Minimum Power gain = 12 dB, Minimum Efficiency = 40%
    • Intermodulation Distortion at 15 W (PEP)= -30 dB (Max)

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF479MP

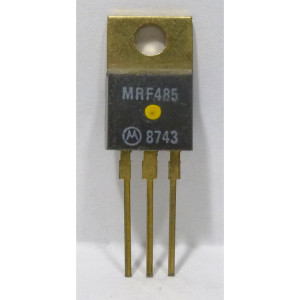

  10. MRF485 Motorola NPN Silicon RF Power Transistor 28V 30 MHz 15W (PEP) High Beta (NOS)

    MRF485 Motorola NPN Silicon RF Power Transistor 28V 30 MHz 15W (PEP) High Beta (NOS)

    $54.91

    Designed primarily for use in single sideband linear amplifier output applications and other communications equipment operating to 30 MHz.

    Not for Early Model Kenwood.

    NOTE: The SV-03YS was a Varistor Diode used in late model Kenwood TS-940 radios. Click Here SV-03YS

    New Old Stock * No longer available for export
    MFR: Motorola
