6L6GC / 5881 / 6L6WGB

The 6L6GC is the latest version of the 6L6 tube. This version has a 30 watt plate dissipation, 500V plate rating and 450V 5watt screen rating. If your amplifier calls for this tube, you probably CANNOT use some of the earlier 6L6 tubes as they are not rated this high.

This 5881 / 6L6WGB was first developed by TungSol for the US Military.  They are in short stubby glass envelopes.  There is no difference between the 6L6WGB or the 5881, they are the same tube.  The 5881 has a maximum plate rating of 360 volts at 23 watts and a maximum screen rating of 270 volts at 3 watts.   DO NOT USE IN AMPS CALLING FOR 6L6GC's.  They will likely melt down and damage your amp.

The 6L6GB have a plate rating of 360 volts, 19 watts and a screen rating of 270 volts and 2.5 watts They are in straight sided envelopes like 6L6GC's.

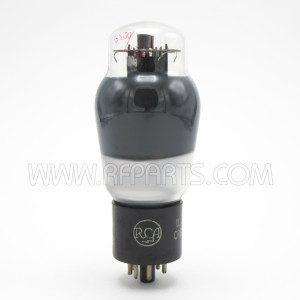

The 6L6G are Large ST (Coke Bottle) Shaped Tubes.   They have the same ratings as the 6L6GA/GB; 360 volts/19 watts plate and 270 volts/2.5 watts screen.

The 6L6 is the metal jacketed version of the 6L6 tube.   They have the same plate/screen ratings as the 6L6G/GA/GB.  The 1614 and 1622 are premium versions of the 6L6 that are rated for maximum output and longer life.

List  Grid

per page
Set Descending Direction

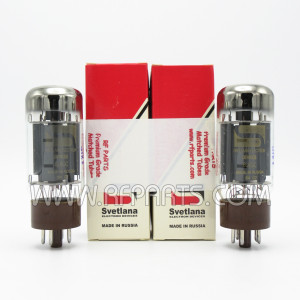

  1. SV6L6GC Svetlana Beam Power Amplifier Tube Matched Pair (2) (NIB)

    SV6L6GC Svetlana Beam Power Amplifier Tube Matched Pair (2) (NIB)

    $121.91

    Matched pair of original Svetlana tubes.Tested at RF Parts test lab.
    The Svetlana SV6L6GC is a glass envelope beam-power tetrode intended for highpower audio amplifier service. This is a Russian Svetlana tube from early 2000 production with Large S logo.
    New In Box * No longer available for export
    MFR: Svetlana, Russia



  2. 6L6GC Svetlana Beam Power Amplifier Tube SV6L6GC

    6L6GC Svetlana Beam Power Amplifier Tube SV6L6GC

    $60.91

    The Svetlana SV6L6GC is a glass envelope beam-power tetrode intended for highpower audio amplifier service. This is a Russian Svetlana tube from early 2000 production with Large S logo.
    New Old Stock * No longer available for export
    MFR: Svetlana, Russia
    SKU: 6L6GC-SVET




  3. 5881 / 6L6WGB Sylvania-JAN, Beam Power Amplifier Tube,  NSN:  5960-00-996-6898 (NOS/NIB)

    5881 / 6L6WGB Sylvania-JAN, Beam Power Amplifier Tube, NSN: 5960-00-996-6898 (NOS/NIB)

    $64.91

    5881-SYL  Tube, Audio  Beam Power Amplifier, 6L6WGB / 5881

    MFR: Sylvania-JAN  NSN:  5960-00-996-6898
    No longer available for Export,  (1980 Production)

    Made in the USA

  4. 5881 / 6L6WGB Sylvania-JAN, Beam Power Amplifier Tube,  NSN:  5960-00-996-6898 (NOS/NIB)

    5881 / 6L6WGB Sylvania-JAN, Beam Power Amplifier Tube, NSN: 5960-00-996-6898 (NOS/NIB)

    $129.91

    5881 / 6L6WGB Sylvania Beam Power Amplifier Tube, Matched Pair

    MFR:Sylvania  (5960-00-996-6898)
    No longer available for Export

    Made in the USA
  5. 5881 Tung-Sol Beam Power Amplifier Matched Pair (2) (NOS/NIB)

    5881 Tung-Sol Beam Power Amplifier Matched Pair (2) (NOS/NIB)

    $111.91

    Out of stock

    5881 Tung-Sol Beam Power Amplifier Matched Pair (2)

    New production Tung Sol from Russia
    No longer available for export
    MFR: Tung-Sol
    SKU: 5881-TUNG

  6. 5881 GE Electron Tube (Pull)

    5881 GE Electron Tube (Pull)

    $64.91

    The 6L6WGB / 5881 is the electrical equivalent to types 6L6 and 6L6GC except that the plate and screen dissipation ratings have been increased approximately 20 percent. It embodies a complete mechanical redesign which results in greater resistance to shock and vibration. The use of treated grids and anode greatly increases its overload capabilities and thereby provides desirable improvement in continuity of service. The addition of a low-loss barrier type base will provide obvious advantages in certain applications.

    Used, Excellent condition * No longer available for export
    MFR: GE, Canada
    SKU: 5881-GE-P


  7. 5881 GE Electron Tube (NOS/NIB)

    5881 GE Electron Tube (NOS/NIB)

    $79.91

    The 6L6WGB / 5881 is the electrical equivalent to types 6L6 and 6L6GC except that the plate and screen dissipation ratings have been increased approximately 20 percent. It embodies a complete mechanical redesign which results in greater resistance to shock and vibration. The use of treated grids and anode greatly increases its overload capabilities and thereby provides desirable improvement in continuity of service. The addition of a low-loss barrier type base will provide obvious advantages in certain applications.

    New old stock * No longer available for export
    MFR: GE
    SKU: 5881-GE

    Made in the USA

  8. 6L6WGB Tung-Sol JAN-CTL / 5881 Electron Tube (NOS/NIB)

    6L6WGB Tung-Sol JAN-CTL / 5881 Electron Tube (NOS/NIB)

    $148.91

    The 6L6WGB / 5881 is the electrical equivalent to types 6L6 and 6L6GC except that the plate and screen dissipation ratings have been increased approximately 20 percent. It embodies a complete mechanical redesign which results in greater resistance to shock and vibration. The use of treated grids and anode greatly increases its overload capabilities and thereby provides desirable improvement in continuity of service. The addition of a low-loss barrier type base will provide obvious advantages in certain applications.

    New old stock * No longer available for export

    SKU:6L6WGB-TS-JAN

    Made in the USA

  9. 5881 Tung-Sol Beam Power Amplifier Tube (NOS/NIB)

    5881 Tung-Sol Beam Power Amplifier Tube (NOS/NIB)

    $149.91

    5881 Tung-Sol Beam Power Amplifier Tube (NOS)
    New Old Stock * No longer available for export
    MFR: Tung-Sol - Made in  USA
    SKU: 5881-TUNG-USA

    Made in the USA
  10. 5881 Tung-Sol Beam Power Amplifier Tube (NOS/NIB)

    5881 Tung-Sol Beam Power Amplifier Tube (NOS/NIB)

    $55.91

    New production.
    No longer available for export
    MFR: Tung-Sol, Russia
    SKU: 5881-TUNG

Items 1 to 10 of 11 total
