Variable Tuning & Load

Variable Tuning & Load Capacitors

The M-73 is a high-voltage, heavy-wattage, continuous duty capacitor. Insulation between rotor and stator is achieved through 1/4" thick, high quality, military spec ceramics riveted to the plated steel end plates. These end plates are tied together by solid aluminum and brass bars, forming a rigid structure. The rotor rides on ball bearings housed between the front end plate and the stainless steel shaft. Blades are heavy .030" thick aluminum. Length dimension is measured from ends of mounting feet.
Our Part NumberSec'sMin/Max
Cap pF		Total PlatesPlate SpacingPeak
Volts		Overall
W x H x L

73-112-15 1 14-70 15 .118 4500V 2.6" x 2.6" x 3.3"
73-175-17 1 10-110 17 .060 2800V 2.6" x 2.6" x 4"
73-175-23 1 14-155 21 .075 3200V 2.6" x 2.6" x 4.8"
26-96** 1 20-160 23 .075 3000V 2.6" x 2.6" x 4.3"
73-180-35
 1 20-215 35 .080 3600V 2.6" x 2.6" x 6.2"
73-145-25 1 20-240 27 .045 2000V 2.6" x 2.6" x 3.6"
73-1200-38 1 23.176 38 .12 2000V

2.6 x 2.6 x 7
73-1100-49 1 20-240 49 .090 4000V 2.6" x 2.6" x 8.5"
73-1100-54 1 35-280 54 .100 4400V 2.6" x 2.6" x 9.3"
73-132-53 1 25-840 53 .030 1200V 2.6" x 2.6" x 5.7"
20-160 2 10-70 / 10-90 34 .065 2500V 3" x 2.2" x 4.6"
47-887 2 22-430 / 25-457 40 .030 1200V 4.1" x 3.5" x 3.6"

**Shaft length and mounting cut to fit SB200.



Our Part NumberSec'sMin/Max
Cap pF		Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
48APL30
( sub for 48APL41S )		 1 5-30 15 .048 2000V 1.5" x 1.4" x 1.5"
074-047
1 5-100 26 .032 1200V 1.5" x 1.4" x 2"
(Shaft Length 5.75")
19100 1 7-100 13 .032 1200V 1.5" x 1.7" x 2"
20APL300DE** 1 12-300 49 .020 1200V 1.4" x 2.5" x 1.3"
32APL144DE 1 12-144 34 .032 1070V 1.4" x 2.3" x 1.36"
HF15 1 3-15 5 .020 750V 1.3" x 1.3" x .8 "
F1-397 1 7-20 4 .030 500V 1.7" x 1.7" x 1.8 "
(Shaft Length 4.5")
**20APL300S is the same capacitor as "DE" version, but with ceramic end plate for added strength.




Part NumberShaft
Dia x Lth
inches		Sec'sMin/Max
Cap pF		Total PlatesPlate SpacingPeak VoltsOverall
W x H x L
CT10042G 1/4 x 3/8 1 5-45 12 .016 250V 0.9" x 1.2" x 1.2"
7254172 3/8 x 9/16 1 2-30 12 .020 350v 0.94" x 1.21" x 1.15"
7254173 1/4 x 9/16 1 1-28 12 .020  350v 0.94" x 1.21" x 1.35"
7254174 1/4x3/4 1 3-60 17 .020 350V 0.8" x 1.2" x 4.3"
48B084E 1/4 x 3/4 1 7-140 39 .016 250V 1" x 1.2" x 2"
29516 3/16 x 7/16 1 2-12 5 .025 500V 0.6" x 0.8" x 0.6"
922-0014 slot 1 3-36 12 .015 250 .08" x 1.1" x 1.1"
074-054 1/4x3/8 1 5-26 18 .045 1500V 1"x1.2"x1.8"
08-65 1/4x3/8  1 8-65  21  .012 200v  1.6" x 1.2" x 1.2"
5M11 3/16 x 1/4 1 0.5-5 5 .016 250V 0.5" x 0.7" x 0.8"
15M11 3/16 x 1/4 1 1-15 15 .016 250V
VC55-250 3/16 x 1/4 1 1-15 14 .016 250V 0.8" x 1" x 1"
160-110-1 3/16 x 1/4 1 3-20 22 .016 250V 0.6" x 0.8" x 1.3"
160-107-1 3/16 x 1/4 1 2-13 15 .16 250V 0.6" x 0.8" x 1"
158-4 slot 1 3-70 20 .015 250 .09" x 1.2" x 1.3"
167-1 - 1 2-10 3 .032 1200V 1.4" x 1.4" x 0.9"
ASP27 1/4 x 3/8 1 7-27 20 - - .95" x 1.25" x 1.96"
563-7625-03
Mfg. Cambian		 0.41 x 0.22 1 4-35 14 - - .785" x .95" x 1.0"
9411-72 SLOT 1 10-140 47 .016 250V 1" x 1.2" x 2.5"
148-81-11 .125 x .3 1 6-30 34 - - 13/16" x 7/8" x 2-3/8"
4138 1/4 x 1.1" 3  25-370  21 x (3)   -  -  3.2" x 1.85" x 3.75"

List  Grid

per page
Set Descending Direction
  1. X764 OEP 3 section Variable Capacitor 15-470pf (ASP7720) (NOS)

    X764 OEP 3 section Variable Capacitor 15-470pf (ASP7720) (NOS)

    $36.91

    Original capacitor used in Pride DX300 / KW-ONE amplifiers for Plate Loading.

    • Plates: 93 (31 per section)
    • Plate Spacing: 0.015
    • Volts: 250 volt
    • Size: 1.8" x 2.1" x 3.3"

    New Old Stock * No longer available for export
    MFR: OEP

    NOTE: Has Grounding tab on back.  Requires tapping holes for mounting.  Does not come with shields between sections.

  2. CN255 Dual Section Variable Capacitor 10-110pf 15-185pf

    CN255 Dual Section Variable Capacitor 10-110pf 15-185pf

    $12.91

    CN255  Variable Capacitor, Dual Section 10-110pf 15-185pf (ASP7550)

  3. 2111 OEP Variable Capacitor, 10-365pf 075-010 (NOS)

    2111 OEP Variable Capacitor, 10-365pf 075-010 (NOS)

    $34.95

    2111  OEP Variable Capacitor, 10-365pf, 350vdc, 29 plates 0.010 gap 075-010 (NOS)  Not for Export

  4. 32APL144DE Variable Capacitor, 12-144 pf

    32APL144DE Variable Capacitor, 12-144 pf

    $24.91 As low as: $23.66

    32APL144DE OEP Variable Capacitor, 12-144 pf (HF140, MCA140)

    SKU: 32APL144DE

    NOTE: Good replacement for HF140 or MCA140.  This will work in place of most 140pf capacitors where space is not an issue.


  5. 73-1120-38 Capacitor, variable 23-176pf, 38 Plates (Pull)

    73-1120-38 Capacitor, variable 23-176pf, 38 Plates (Pull)

    $79.91

    73-1120-38 Capacitor, variable 23-176pf, 3.5kv, 38 Plates, 0.12 plate gap
    Used * No longer available for export
    SKU: 73-1120-38
    NOTE: Used in Ten Tec equipment

    Made in the USA
  6. 075-009 Jackson Brothers Dual Section Variable Capacitor 4-8pf / 5-13pf (Pull)

    075-009 Jackson Brothers Dual Section Variable Capacitor 4-8pf / 5-13pf (Pull)

    $16.91

    Used in Swan or Atlas transceivers

    • Capacitance: Front section 4-8pf
    • Capaciance: Second section 5-13pf
    • 1.48 wide x 1.69" long (body) 3.015" including shaft x 1.4" High
    • Shaft: 1/4" diameter

    Clean Used * No longer available for export
    MFR: Jackson Brothers
    Made in England
    SKU: 075-009

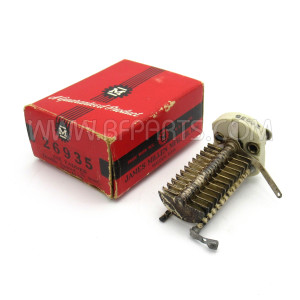

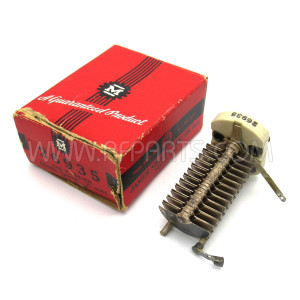

  7. 26935 Millen Variable Tuning Capacitor 8-35pf 1.5kv (NOS)

    26935 Millen Variable Tuning Capacitor 8-35pf 1.5kv (NOS)

    $49.91

    Capacitance:  8-35pf
    Peak Voltage: 1.5kv
    Shaft: 0.162”
    Plates: 25
    Size: 2.0625” Long x 0.9375” Wide x 1.1875” High
    New Old Stock * No longer available for export
    MFR: James Millen
    SKU:  26935-NOS

    Note: Picture for reference only

    Made in the USA

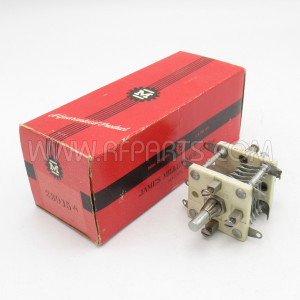

  8. 23915A Millen Variable Capacitor 5-19pf 3kv (NOS)

    23915A Millen Variable Capacitor 5-19pf 3kv (NOS)

    $49.91

    Capacitance:  5-19pf
    Shaft: ¼”
    Peak Voltage: 8kv
    Plates: 9
    Size: 3.25” Long x 1.5” Wide x 1.5” High
    New Old Stock * No longer available for export
    MFR: James Millen
    SKU: 23915A

    Made in the USA

  9. AMT National Variable Capacitor 15-55pf 8kv 0.18" gap 18 plates (Pull)

    AMT National Variable Capacitor 15-55pf 8kv 0.18" gap 18 plates (Pull)

    $189.95

    AMT National Variable Capacitor 15-55pf 8kv 0.18" gap 18 plates
    Used, Great Condition * No longer available for export
    MFR: National
    SKU: AMT-15-55

    Made in the USA

  10. 160-211-1 E. F. Johnson Variable Capacitor, Panel Mount, 2.7-10.8 pf, 11M811 (NOS)

    160-211-1 E. F. Johnson Variable Capacitor, Panel Mount, 2.7-10.8 pf, 11M811 (NOS)

    $19.95

    160-211-1 E. F. Johnson Variable Capacitor, Panel Mount, 2.7-10.8 pf, 11M811. New Old Stock.

    No longer available for Export

    Made in the USA
