HT50 series 5 & 7.5kv

HT50/HH58/850S Series RF Doorknob Caps

0.82" Diameter x 0.89" Long • 6-32 Thread
DOORKNOB DIMENSIONS
RF Parts
Number
Factory
Part #

pF

TC
Current/Amps
1 MHz     10 MHz     30 MHz
1 KV Rating   P=CLEAN PULLOUT
580500-1P HT50T501 500 N4700
3.5 KV Rating   P=CLEAN PULLOUT
332TA  SPHHR332TA 3300 X5V
4 KVDC Rating   P=CLEAN PULLOUT
580067-4 HT50S670JK 67
580080-4P  HT505800 80
5 KVDC Rating   P=CLEAN PULLOUT
580012-5P HT50T120 12 NPO .83 4.2 7.3
580028-5P HT50T280 28 NPO .83 4.9 7.9
580040-5P HT50T400 40 NPO 1.33 5.3 8.9
580050-5P HT50T500 50 NPO 1.66 5.4 9.4
580057-5P HT50T570 57 NPO 1.88 5.4 9.6
580062-5P HT50T620 62 NPO 2.09 5.5 9.7
580063-5P HT50T630 63 NPO 2.09 5.5 9.7
580067-5P HT50T670 67 NPO 2.16 5.5 9.7
580075-5P HT50T750 75 N-750 2.5 6.5 9.7
580080-5P HT50T080 80 N-750 2.7 6.6 9.7
580100-5 850S-100N 100 - - - -
580160-5P HT50T161 160 N-750 3.8 7.0 10.2
580500-5 850S-500 500 - - - -
580500-5P HT50T501 500 N5250 - - -
581000-5P HT50V102MA1 1000 X5V 1.6 3.8 5.6
7.5 KVDC Rating   P=CLEAN PULLOUT

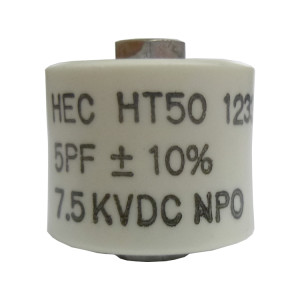

580005-7 HT50V 5 NPO .83 4.2 7.3
580012-7 HT50V120 12 NPO .83 4.2 7.3
580020-7 HT50V200 20 NPO .83 4.6 7.7
580025-7 HT50V250 25 NPO .83 4.9 7.9
580040-7P HT50V400MA 40 NPO   5.1 8.3
580050-7 HT50V500 50 NPO 1.66 5.4 9.4
580050-7P HT50V500 50 NPO 1.66 5.4 9.4
580067-7 HT50V670 67 NPO 2.16 5.5 9.7
580075-7 HT50V750 75 NPO 2.16 5.5 9.7
580075-7P HT50V750 75 NPO 2.16 5.5 9.7

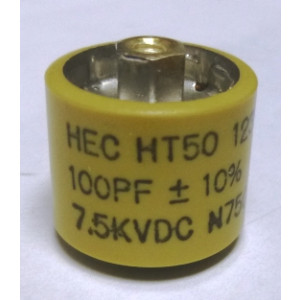

580100-7 HT50V101 100 N-750 3.6 6.8 9.7

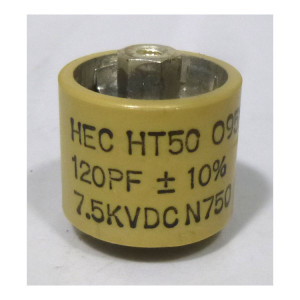

580120-7 HT50V121 120 N-750 3.7 6.9 9.9
580140-7 HT50V141 140 N-750 3.8 7.0 10.2
580170-7 HT50V171 170 N-750 3.9 7.1 10.4
580200-7 HT50V200 200 N-3300 2.8 5.1 6.9
580240-7 HT50V241 240 N-3300 2.8 5.2 7.1
580300-7 HT50V301 300 N-3300 3.9 5.3 7.4
580400-7 HT50V401 400 N-3300 3.0 5.4 7.7
DCOG401MB 580400-7
Mfg. HVCO (blue)
400 N-3300 3.0 5.4 7.7
TS50-401-20-5752 580400-7
Mfg. Germany  (blue)
400 N-5600 2.7 4.9 7.0
580500-7 HT50V501MA 500 N-4700 3.2 6.0 7.3

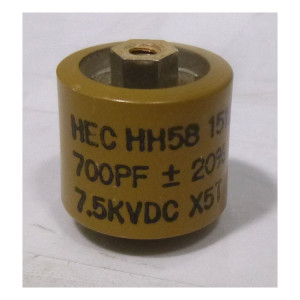

580700-7 HH58V701MA 700 X5T 1.5 3.5 5.1
581000-7 HH58V102MA 1000 X5V 1.6 3.8 5.6

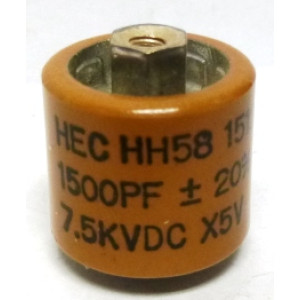

581500-7 HH58V152MA 1500 X5V 1.7 4.0 6.0
582000-7 HH58V202MA 2000 X5V 1.7 4.2 6.3

List  Grid

per page
Set Descending Direction

  1. 580140-7 Doorknob Capacitor, 140pf 7.5kv, HT50V141KA, High Energy

    580140-7 Doorknob Capacitor, 140pf 7.5kv, HT50V141KA, High Energy

    $32.95

    580140-7 Doorknob Capacitor, 140pf 7.5kv, 10%, HT50V141KA, MFR: High Energy

    Made in the USA
  2. 580120-5P Doorknob Capacitor, 120pf 5kv 10% (Pull)

    580120-5P Doorknob Capacitor, 120pf 5kv 10% (Pull)

    Regular Price: $25.95

    Special Price $23.95

    580120-5P  Doorknob Capacitor, 120pf 5kv 10%
    Used clean condition * No longer available for export
    SKU: 580120-5P


  3. 580400-7P High Energy Doorknob Capacitor, 400pf 7.5kv 10% (Pull)

    580400-7P High Energy Doorknob Capacitor, 400pf 7.5kv 10% (Pull)

    Regular Price: $25.95

    Special Price $23.95

    580400-7P Doorknob Capacitor, 400pf 7.5kv 10%
    Used clean condition * No longer available for export
    MFR: High Energy
    SKU: 580400-7P

    Made in the USA

  4. 580500-1P High Energy Corp Capacitor Doorknob, 500pf 1kv, 20% (Pull)

    580500-1P High Energy Corp Capacitor Doorknob, 500pf 1kv, 20% (Pull)

    $21.95

    580500-1P Capacitor Doorknob, 500pf 1kv, 20%
    Used clean condition * No longer available for export
    MFR: High Energy Corp
    SKU: 580500-1P

    Made in the USA
  5. 580500-5P Doorknob Capacitor, 500pf 5kv (Pull)

    580500-5P Doorknob Capacitor, 500pf 5kv (Pull)

    $25.95

    580500-5P Doorknob Capacitor, 500pf 5kv
    Used clean condition * No longer available for export
    SKU: 580500-5P

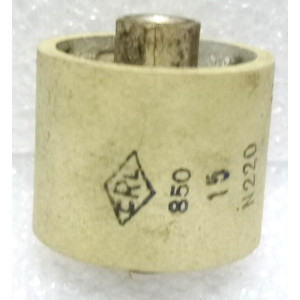

  6. 580015-5P Doorknob Capacitor, 15pf 5kv, +/-20% (Pull)

    580015-5P Doorknob Capacitor, 15pf 5kv, +/-20% (Pull)

    Regular Price: $25.95

    Special Price $23.95

    580015-5P Doorknob Capacitor, 15pf 5kv, +/-20%
    Used clean * No longer available for export
    SKU: 580015-5P

  7. 580100-5P Capacitor, Doorknob, 100pf 5kv, 10% (Pull)

    580100-5P Capacitor, Doorknob, 100pf 5kv, 10% (Pull)

    Regular Price: $25.95

    Special Price $23.95

    580100-5P Doorknob Capacitor, 100pf 5kv, 10%
    Used * No longer available for export
    SKU: 580100-5P

  8. SPHHR332TA Doorknob, 3300pf 3.5kv

    SPHHR332TA Doorknob, 3300pf 3.5kv

    $19.95

    Out of stock

    SPHHR332TA Doorknob, 3300pf 3.5kv

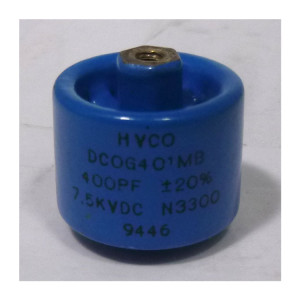

  9. DCOG401MB Doorknob Capacitor, 400pf 7.5kv 20%

    DCOG401MB Doorknob Capacitor, 400pf 7.5kv 20%

    $19.95

    DCOG401MB Doorknob Capacitor, 400pf 7.5kv 20%

    Doorknob Capacitor, 400pf 7.5kv 20%

    MFR Part #: DCOG401MB

    MFR: HYCO

    Temp Coef.:  N3300;

    Clean pull out, tested

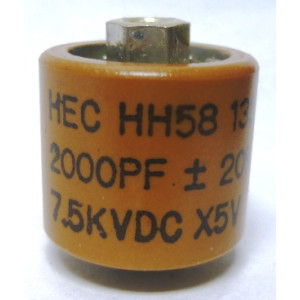

  10. 582000-7 Doorknob Capacitor 2000pf 7.5kv. High Energy

    582000-7 Doorknob Capacitor 2000pf 7.5kv. High Energy

    582000-7 Doorknob Capacitor, 2000pf 7.5kv, HH58V202MA 20%, MFR: High Energy *USA*

    Made in the USA

Items 11 to 20 of 63 total
