HT50 series 5 & 7.5kv
| HT50/HH58/850S Series RF Doorknob Caps 0.82" Diameter x 0.89" Long • 6-32 Thread  | ||||||
|---|---|---|---|---|---|---|
| RF Parts Number | Factory Part # | pF | TC | Current/Amps 1 MHz 10 MHz 30 MHz | ||
| 1 KV Rating P=CLEAN PULLOUT | ||||||
| 580500-1P | HT50T501 | 500 | N4700 | |||
| 3.5 KV Rating P=CLEAN PULLOUT | ||||||
| 332TA | SPHHR332TA | 3300 | X5V | |||
| 4 KVDC Rating P=CLEAN PULLOUT | ||||||
| 580067-4 | HT50S670JK | 67 | ||||
| 580080-4P | HT505800 | 80 | ||||
|
5 KVDC Rating P=CLEAN PULLOUT
|
||||||
| 580012-5P | HT50T120 | 12 | NPO | .83 | 4.2 | 7.3 |
| 580028-5P | HT50T280 | 28 | NPO | .83 | 4.9 | 7.9 |
| 580040-5P | HT50T400 | 40 | NPO | 1.33 | 5.3 | 8.9 |
| 580050-5P | HT50T500 | 50 | NPO | 1.66 | 5.4 | 9.4 |
| 580057-5P | HT50T570 | 57 | NPO | 1.88 | 5.4 | 9.6 |
| 580062-5P | HT50T620 | 62 | NPO | 2.09 | 5.5 | 9.7 |
| 580063-5P | HT50T630 | 63 | NPO | 2.09 | 5.5 | 9.7 |
| 580067-5P | HT50T670 | 67 | NPO | 2.16 | 5.5 | 9.7 |
| 580075-5P | HT50T750 | 75 | N-750 | 2.5 | 6.5 | 9.7 |
| 580080-5P | HT50T080 | 80 | N-750 | 2.7 | 6.6 | 9.7 |
| 580100-5 | 850S-100N | 100 | - | - | - | - |
| 580160-5P | HT50T161 | 160 | N-750 | 3.8 | 7.0 | 10.2 |
| 580500-5 | 850S-500 | 500 | - | - | - | - |
| 580500-5P | HT50T501 | 500 | N5250 | - | - | - |
| 581000-5P | HT50V102MA1 | 1000 | X5V | 1.6 | 3.8 | 5.6 |
| 7.5 KVDC Rating P=CLEAN PULLOUT | ||||||
| 580005-7 | HT50V | 5 | NPO | .83 | 4.2 | 7.3 |

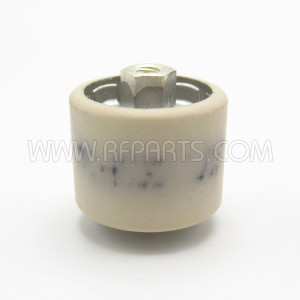

| 580012-7 | HT50V120 | 12 | NPO | .83 | 4.2 | 7.3 |
| 580020-7 | HT50V200 | 20 | NPO | .83 | 4.6 | 7.7 |
| 580025-7 | HT50V250 | 25 | NPO | .83 | 4.9 | 7.9 |
| 580040-7P | HT50V400MA | 40 | NPO | 5.1 | 8.3 | |
| 580050-7 | HT50V500 | 50 | NPO | 1.66 | 5.4 | 9.4 |
| 580050-7P | HT50V500 | 50 | NPO | 1.66 | 5.4 | 9.4 |
| 580067-7 | HT50V670 | 67 | NPO | 2.16 | 5.5 | 9.7 |
| 580075-7 | HT50V750 | 75 | NPO | 2.16 | 5.5 | 9.7 |
| 580075-7P | HT50V750 | 75 | NPO | 2.16 | 5.5 | 9.7 |
| 580100-7 | HT50V101 | 100 | N-750 | 3.6 | 6.8 | 9.7 |
| 580120-7 | HT50V121 | 120 | N-750 | 3.7 | 6.9 | 9.9 |
| 580140-7 | HT50V141 | 140 | N-750 | 3.8 | 7.0 | 10.2 |
| 580170-7 | HT50V171 | 170 | N-750 | 3.9 | 7.1 | 10.4 |
| 580200-7 | HT50V200 | 200 | N-3300 | 2.8 | 5.1 | 6.9 |
| 580240-7 | HT50V241 | 240 | N-3300 | 2.8 | 5.2 | 7.1 |
| 580300-7 | HT50V301 | 300 | N-3300 | 3.9 | 5.3 | 7.4 |
| 580400-7 | HT50V401 | 400 | N-3300 | 3.0 | 5.4 | 7.7 |
| DCOG401MB | 580400-7 Mfg. HVCO (blue) |
400 | N-3300 | 3.0 | 5.4 | 7.7 |
| TS50-401-20-5752 | 580400-7 Mfg. Germany (blue) |
400 | N-5600 | 2.7 | 4.9 | 7.0 |
| 580500-7 | HT50V501MA | 500 | N-4700 | 3.2 | 6.0 | 7.3 |
| 580700-7 | HH58V701MA | 700 | X5T | 1.5 | 3.5 | 5.1 |
| 581000-7 | HH58V102MA | 1000 | X5V | 1.6 | 3.8 | 5.6 |
| 581500-7 | HH58V152MA | 1500 | X5V | 1.7 | 4.0 | 6.0 |
| 582000-7 | HH58V202MA | 2000 | X5V | 1.7 | 4.2 | 6.3 |
-
580080-5P Doorknob Capacitor 80pf 5kv (Pull)
$23.95 -
580080-4P Doorknob Capacitor, 80pf 4kv (Pull)
$19.95 -

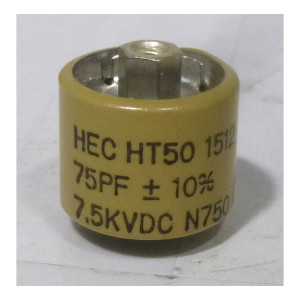

580075-7P Doorknob Capacitor, 75pf 7.5kv 10% (Pull)
$26.91 -
-

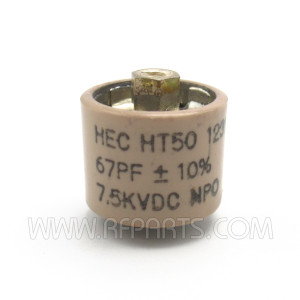

HT50V670KA 10% High Energy Doorknob Capacitor 67pf 7.5kv
$49.91 -

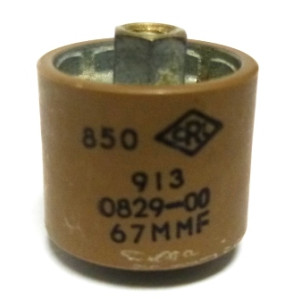

580067-5P Doorknob Capacitor 67pf 5kv (Pull)
$35.91 -

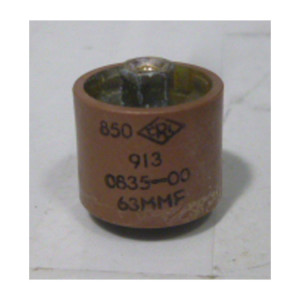

580063-5P Doorknob Capacitor, 63pf 5kv (Pull)
Regular Price: $37.95
Special Price $32.95
-
580057-5P Doorknob Capacitor, 57pf 5kv (Pull)
$34.95 -
HH58T501MA High Energy Doorknob Capacitor 500pf 5kv 25% (Pull)
$16.91Out of stock
-

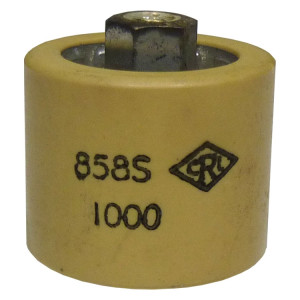

Doorknob Capacitor 1000pf 5kv 20% (Pull)
$21.91
