HT50 series 5 & 7.5kv

HT50/HH58/850S Series RF Doorknob Caps

0.82" Diameter x 0.89" Long • 6-32 Thread
DOORKNOB DIMENSIONS
RF Parts
Number
Factory
Part #

pF

TC
Current/Amps
1 MHz     10 MHz     30 MHz
1 KV Rating   P=CLEAN PULLOUT
580500-1P HT50T501 500 N4700
3.5 KV Rating   P=CLEAN PULLOUT
332TA  SPHHR332TA 3300 X5V
4 KVDC Rating   P=CLEAN PULLOUT
580067-4 HT50S670JK 67
580080-4P  HT505800 80
5 KVDC Rating   P=CLEAN PULLOUT
580012-5P HT50T120 12 NPO .83 4.2 7.3
580028-5P HT50T280 28 NPO .83 4.9 7.9
580040-5P HT50T400 40 NPO 1.33 5.3 8.9
580050-5P HT50T500 50 NPO 1.66 5.4 9.4
580057-5P HT50T570 57 NPO 1.88 5.4 9.6

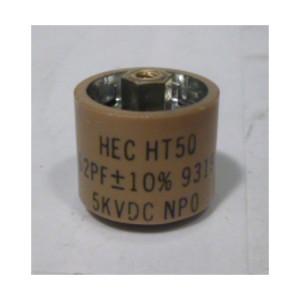

580062-5P HT50T620 62 NPO 2.09 5.5 9.7
580063-5P HT50T630 63 NPO 2.09 5.5 9.7
580067-5P HT50T670 67 NPO 2.16 5.5 9.7
580075-5P HT50T750 75 N-750 2.5 6.5 9.7
580080-5P HT50T080 80 N-750 2.7 6.6 9.7
580100-5 850S-100N 100 - - - -
580160-5P HT50T161 160 N-750 3.8 7.0 10.2
580500-5 850S-500 500 - - - -
580500-5P HT50T501 500 N5250 - - -
581000-5P HT50V102MA1 1000 X5V 1.6 3.8 5.6
7.5 KVDC Rating   P=CLEAN PULLOUT
580005-7 HT50V 5 NPO .83 4.2 7.3
580012-7 HT50V120 12 NPO .83 4.2 7.3
580020-7 HT50V200 20 NPO .83 4.6 7.7
580025-7 HT50V250 25 NPO .83 4.9 7.9
580040-7P HT50V400MA 40 NPO   5.1 8.3
580050-7 HT50V500 50 NPO 1.66 5.4 9.4
580050-7P HT50V500 50 NPO 1.66 5.4 9.4
580067-7 HT50V670 67 NPO 2.16 5.5 9.7
580075-7 HT50V750 75 NPO 2.16 5.5 9.7
580075-7P HT50V750 75 NPO 2.16 5.5 9.7
580100-7 HT50V101 100 N-750 3.6 6.8 9.7
580120-7 HT50V121 120 N-750 3.7 6.9 9.9
580140-7 HT50V141 140 N-750 3.8 7.0 10.2
580170-7 HT50V171 170 N-750 3.9 7.1 10.4
580200-7 HT50V200 200 N-3300 2.8 5.1 6.9
580240-7 HT50V241 240 N-3300 2.8 5.2 7.1
580300-7 HT50V301 300 N-3300 3.9 5.3 7.4
580400-7 HT50V401 400 N-3300 3.0 5.4 7.7
DCOG401MB 580400-7
Mfg. HVCO (blue)
400 N-3300 3.0 5.4 7.7
TS50-401-20-5752 580400-7
Mfg. Germany  (blue)
400 N-5600 2.7 4.9 7.0
580500-7 HT50V501MA 500 N-4700 3.2 6.0 7.3
580700-7 HH58V701MA 700 X5T 1.5 3.5 5.1
581000-7 HH58V102MA 1000 X5V 1.6 3.8 5.6
581500-7 HH58V152MA 1500 X5V 1.7 4.0 6.0
582000-7 HH58V202MA 2000 X5V 1.7 4.2 6.3

List  Grid

per page
Set Descending Direction
  1. 580050-5P Doorknob Capacitor, 50pf 5kv (HT50V500KA) (Pull)

    580050-5P Doorknob Capacitor, 50pf 5kv (HT50V500KA) (Pull)

    $34.95

    580050-5P  Ceramic Doorknob Capacitor, 50pf 5kv (HT50V500KA)
    Used clean condition * No longer available for export
    MFR: High Energy or Hi-Q
    SKU: 580050-5P


  2. HT50V500KA  High Energy Corporation Ceramic Doorknob Capacitor 50pf 7.5kv 10%

    HT50V500KA High Energy Corporation Ceramic Doorknob Capacitor 50pf 7.5kv 10%

    Specifications:
    CAP 50 pF (HT50V500KA)
    Dielectric (TC) NP0
    VMAX (DC) 7.5 kV
    fL 1.13 MHz
    SMAX 10 kV·A
    fH 23.0 MHz
    IMAX (RMS) 8.5 A
    Thread 6-32 UNC-2B 5/32 min deep

    MFR: High Energy Corporation
    SKU: 580050-7

    Made in the USA

  3. HT50V101KA High Energy Doorknob Capacitor 100pf 7.5kv 10%

    HT50V101KA High Energy Doorknob Capacitor 100pf 7.5kv 10%

    • Capacitance: 100 pF
    • VMAX (DC): 7.5 kV
    • fL: 0.565 MHz
    • SMAX: 10 kV·A
    • fH: 15.0 MHz

    MFR: High Energy
    SKU: HT50V101KA 10%

    Made in the USA
  4. 580080-5P Doorknob Capacitor 80pf 5kv (Pull)

    580080-5P Doorknob Capacitor 80pf 5kv (Pull)

    $23.95

    580080-5P  Doorknob Capacitor, 80pf 5kv
    Used clean condition * No longer available for export
    SKU: 580080-5P

  5. 580080-4P Doorknob Capacitor, 80pf 4kv (Pull)

    580080-4P Doorknob Capacitor, 80pf 4kv (Pull)

    $19.95

    580080-4P Doorknob, 80pf 4kv
    Used clean condition * No longer available for export
    SKU: 580080-4P

  6. 580075-7P Doorknob Capacitor, 75pf 7.5kv 10% (Pull)

    580075-7P Doorknob Capacitor, 75pf 7.5kv 10% (Pull)

    Regular Price: $26.95

    Special Price $24.95

    Out of stock

    580075-7P  Doorknob Capacitor, 75pf 7.5kv 10%
    Used clean condition * No longer available for export
    SKU: 580075-7P


  7. 580075-7 Doorknob Capacitor 75pf 7.5kv, HT50V750KA 10%  High Energy

    580075-7 Doorknob Capacitor 75pf 7.5kv, HT50V750KA 10% High Energy

    580075-7 Doorknob Capacitor 75pf 7.5kv, HT50V750KA 10%, MFR: High Energy

    Made in the USA
  8. 580075-5P Doorknob Capacitor, 75pf 5kv (Pull)

    580075-5P Doorknob Capacitor, 75pf 5kv (Pull)

    Regular Price: $25.95

    Special Price $23.95

    Out of stock

    580075-5P Doorknob, 75pf 5kv
    Used clean condition * No longer available for export
    SKU: 580075-5P


  9. 580067-7 Doorknob Capacitor, 67pf 7.5kv  High Energy

    580067-7 Doorknob Capacitor, 67pf 7.5kv High Energy

    $49.95

    580067-7 Doorknob Capacitor, 67pf 7.5 kv, (+/- 20%), MFR: High Energy

    Made in the USA
  10. HT50 Ceramic Doorknob Capacitor 50pf 7.5kv 10% (Pull)

    HT50 Ceramic Doorknob Capacitor 50pf 7.5kv 10% (Pull)

    Regular Price: $37.91

    Special Price $35.95

    These capacitors have been inspected and tested in our test lab.  Meets 100% factory specs.
    Used clean condition * No longer available for export
    MFR: brand and cosmetic condition may vary.
    SKU: 580050-7P

    Picture for reference only.
